Dee Zee DZ15 User Manual
Page 4
WRENCH/RATCHET
13mm, 9/16"

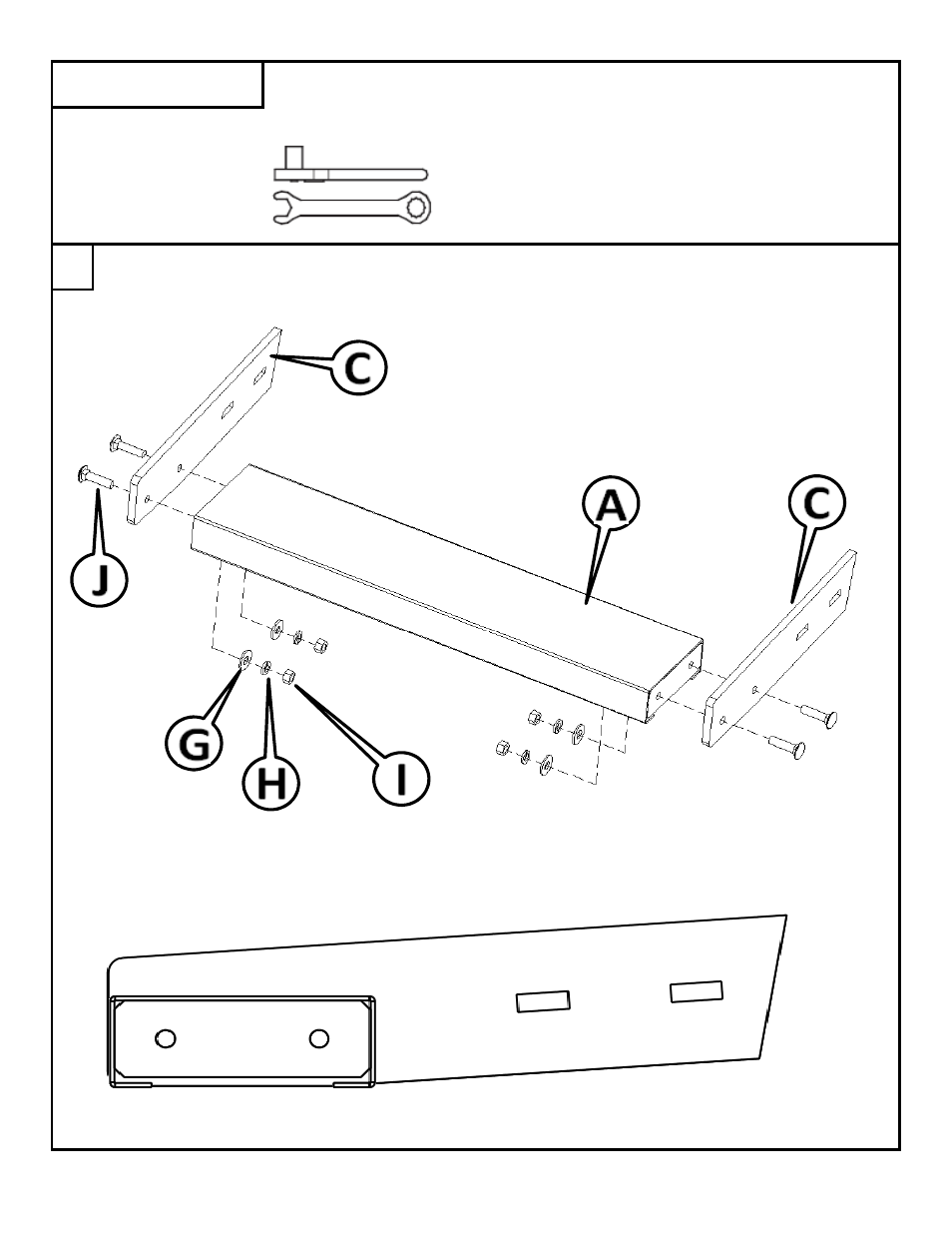

Assemble the aluminum flat braces [C] to the board [A] using the carriage bolt [J], washer [G],
lock washer [H], and nut [I].
Finger tighten the bolts, but do not completely tighten at this time.
TOOLS REQUIRED
1
When assembled, the board should be located towards the bottom of the aluminum flat brace,
and the aluminum flat brace should angle up and away from the board as shown below.
DZ 15
2 of 6
4/25/2012
