Dee Zee DZ3030 - Manual (Page 3)

REG CAB X2 REG CAB X2 FP0311P X1
VARIES X2 B 2008RP X3 B 2008LP X3 FP0312P X1
REG CAB X1 REG CAB X8 REG CAB X12
GSK-41 VARIES PN 685 X2 PN 686 X12 PN 525 X18
REG CAB X16 REG CAB 12
PN 72 X20 PN 71 X16 PN 97 X4 PN 70 X4
REG CAB X4 REG CAB X8
PN 611 X6 PN 87 X12
SHEET
METAL SCREW
NUTSERT SET TOOL 8mm HEX NUTSERT
E F G H
BULB GASKET
Dee Zee Brite Tread Running Board Installation Instruction Dee Zee Brite Tread Running Board Installation Instruction Dee Zee Brite Tread Running Board Installation Instruction Dee Zee Brite Tread Running Board Installation Instruction
(2009 - Current) Dodge Ram Regular, Quad, Mega & Crew Cab (2009 - Current) Dodge Ram Regular, Quad, Mega & Crew Cab (2009 - Current) Dodge Ram Regular, Quad, Mega & Crew Cab (2009 - Current) Dodge Ram Regular, Quad, Mega & Crew Cab

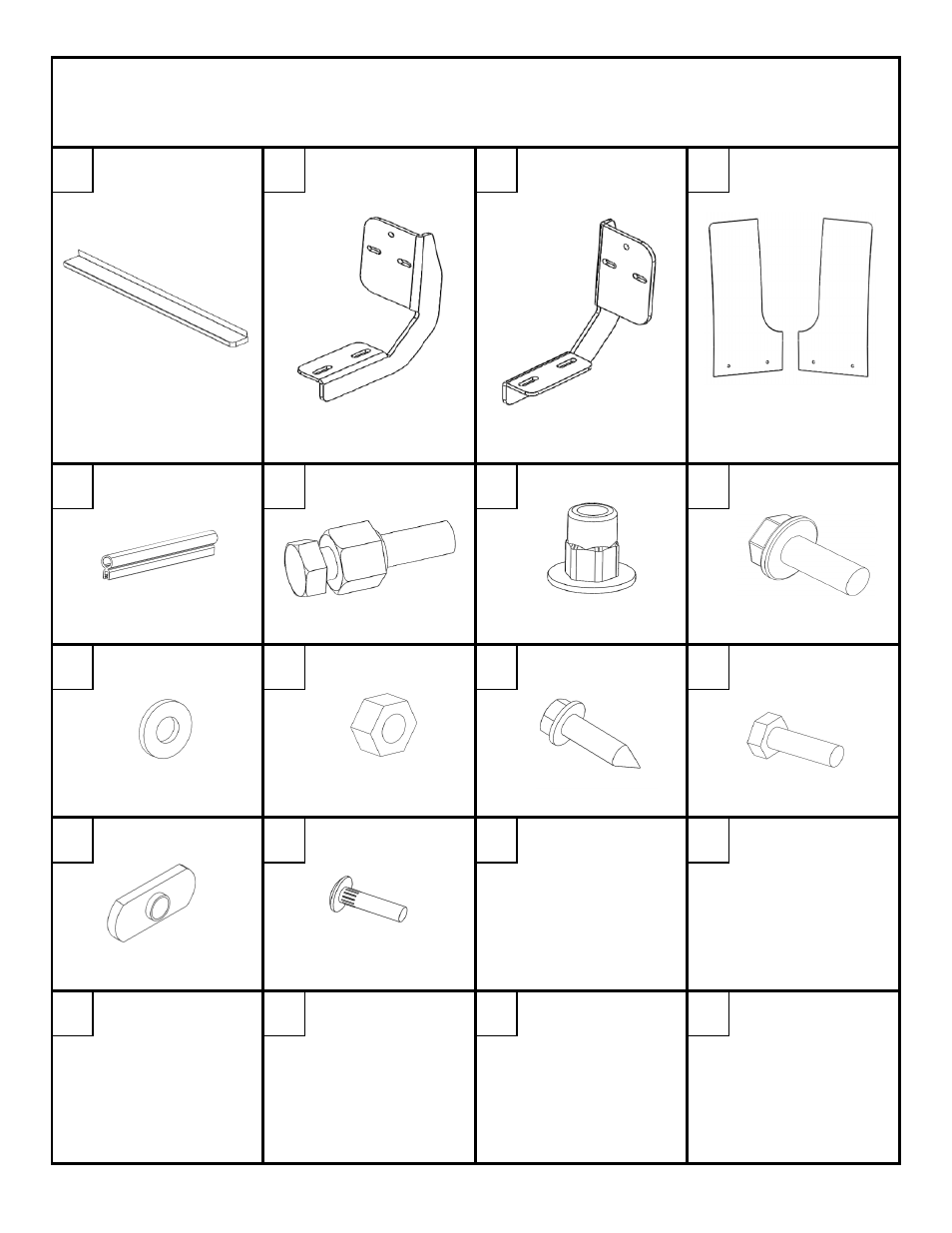

RUNNING BOARD RH BRACKET LH BRACKET MUD FLAP
A B C D
DZ 3027, DZ 3028, DZ 3029, DZ 3030 DZ 3027, DZ 3028, DZ 3029, DZ 3030 DZ 3027, DZ 3028, DZ 3029, DZ 3030 DZ 3027, DZ 3028, DZ 3029, DZ 3030
1/4 X 3/4"
HEX HEAD BOLT
L
8mm X 25mm
M N
1/4 X 1" RIBNECK
CARRIAGE BOLT
8mm THREADED
PLATE
FLANGE HEAD BOLT
I J K
1/4" FLAT WASHER 1/4" HEX NUT
DZ 3027 1 OF 9 7/11/2013
