DZ1030.PDF 06/02/99 PAGE 5
12a
12b
11
10
D
D
S S
T T
M
7/16“
7/16“
D
E
S
T
P

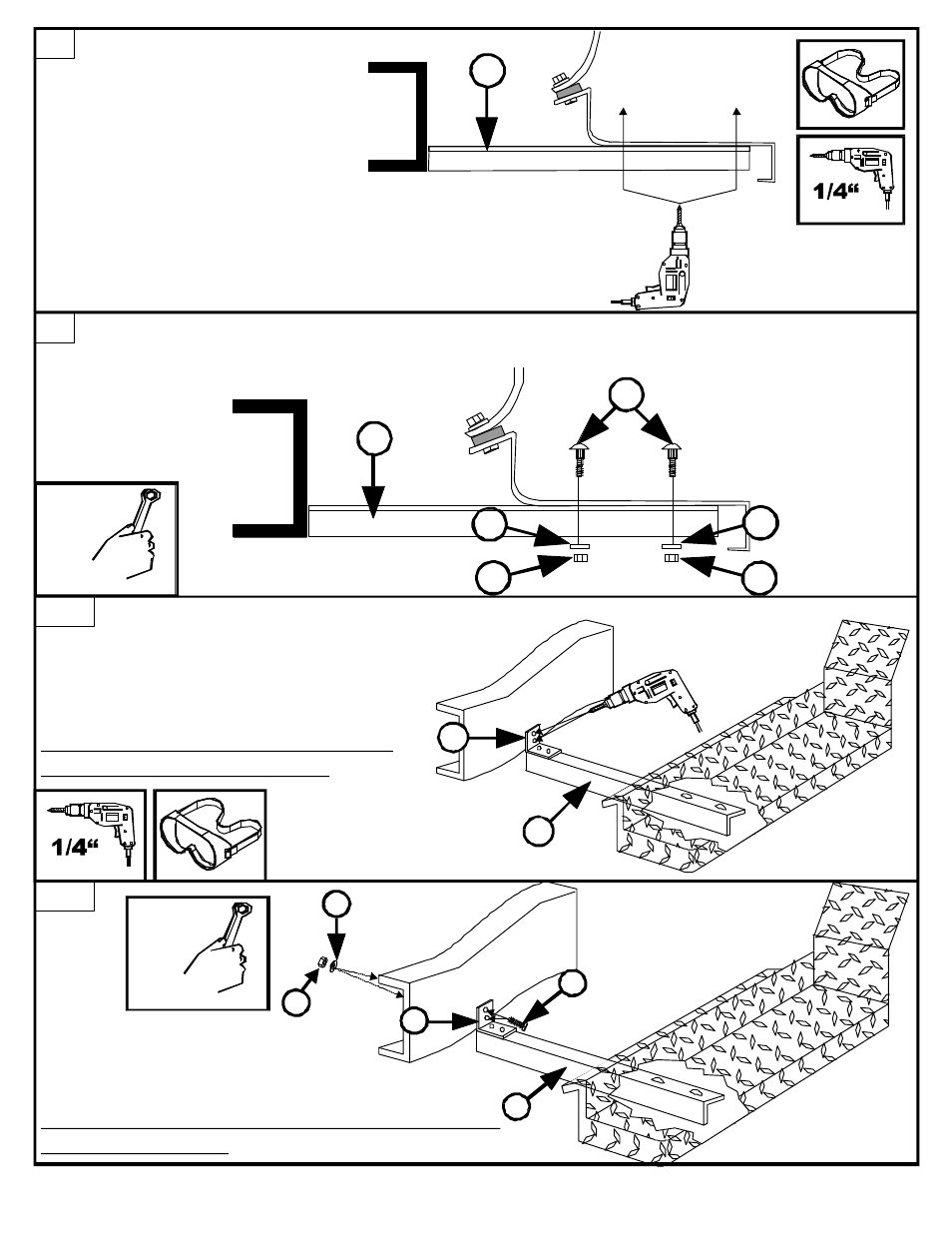

Drill two 1/4“ holes up through the bottom of britetread
running board (A) at each angle brace (D) location, using the
holes in angle brace (D) as a guide.
Secure angle brace (D) to the britetread running board (A) using 1/4 x 1“ ribneck
carriage head bolts (M), 1/4“ flat washers (T), and 1/4” hex nuts (S).
E
D
Place mounting brackets (E) up to the vehicle
frame and angle braces (D) as shown. Drill two
1/4“ holes through the frame, using the
mounting bracket (E) as a guide.
Note: Repeat this process for all of
the angle brace placements.
Secure each mounting bracket (E)
into place using 1/4 x 3/4“ hex head bolts (P),
1/4” flat washers (T), and 1/4“ hex nuts (S).
Note: Repeat this process for all of the angle
brace placements.
