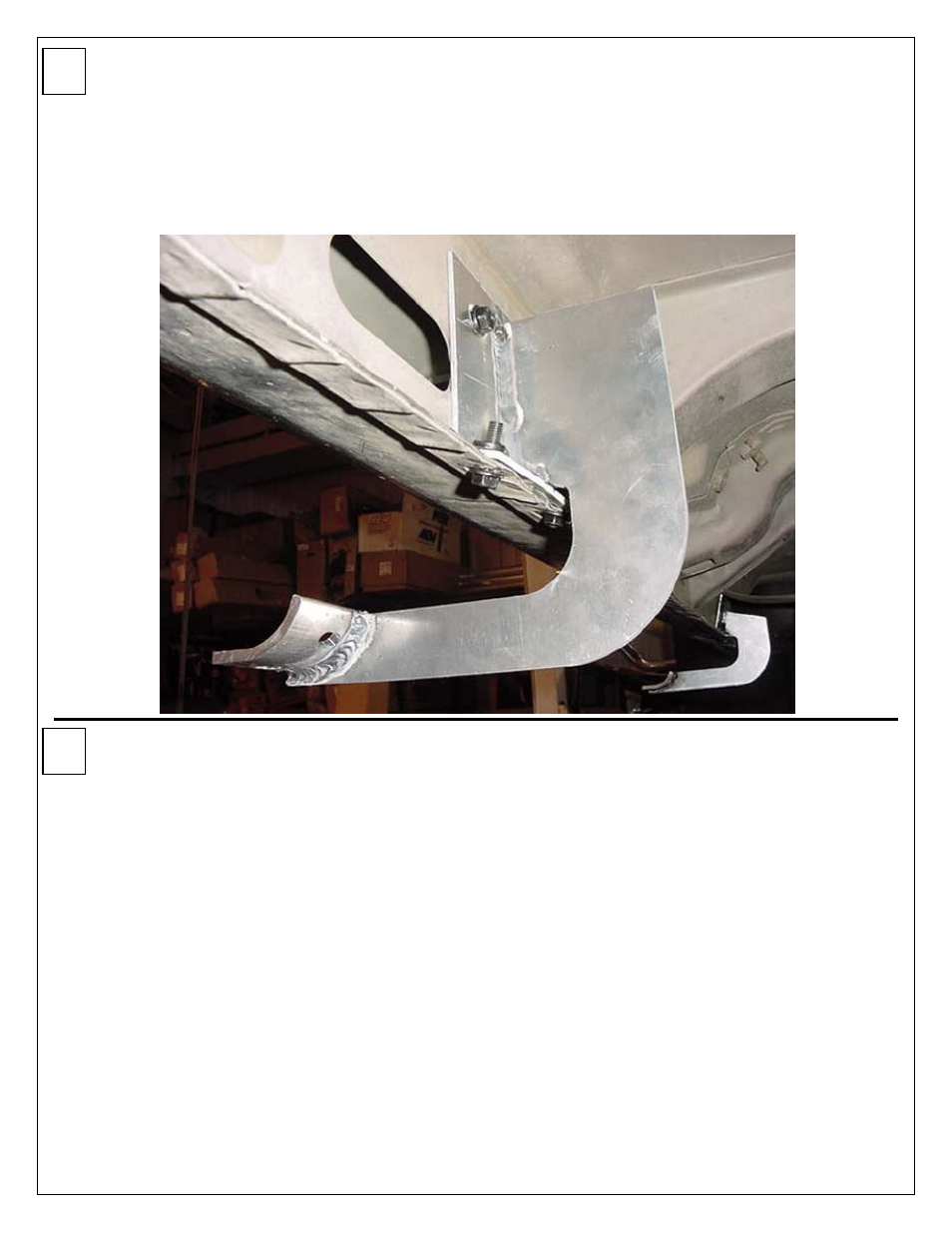

Place the middle / rear driver side mounting bracket (C) up to the middle / rear rocker panel
locations. Secure the top hole of the mounting bracket to the 8mm clip using an 8mm x 25mm
hex flange bolt (F) and 5/16” washer (I). Secure the bottom of the mounting bracket to the
rocker panel using an 8mm x 25mm hex flange bolt (F), 5/16” washer (I), and 8mm threaded
plates (G).
Place the nerfstep up to the mounting brackets. The bent end of the nerfstep will go to the
front of the vehicle. Secure each of the mounting brackets to the nerfstep using 6mm hex
flange bolts (H) and 6mm washers (I). Tighten into place using a 10mm wrench / or socket.
Now tighten all of the fasteners until snug.
3
4
