SIDEBAR
07-On TOYOTA TUNDRA (Double Cab & Crew Max)
Page 1 of 2 6/22/09(DP) Rev2
PARTS LIST:
1 Passenger Side Bar 1 Driver/Left Rear Mounting Bracket
1 Driver Side Bar 1 Passenger/Right Rear Mounting Bracket
1 Driver/Left Front Mounting Bracket 24 8-1.25mm x 30mm Hex Head Bolts
1 Passenger/Right Front Mounting Bracket 24 8mm Lock Washers
1 Driver/Left Middle Mounting Bracket 24 8mm ID x 24mm OD x 2mm Flat Washers
1 Passenger/Right Middle Mounting Bracket
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY.
2. Starting on the driver side front of the vehicle, remove the existing factory bolts, (if equipped) on the
side panel located by the front tire opening, (Figure 1). NOTE: There is a threaded hole next to the
factory bolt, (if equipped). This will be the mounting location for the driver side front Mounting Bracket.
Partially attach the driver side front Mounting Bracket to the vehicle using the included (2) 8mm x 30mm
Hex Head Bolts, (2) 8mm Lock Washers, and (2) 8mm Flat Washers, (Figure 2). Do not tighten at this
time.
3. Remove the two factory bolts, (if equipped), along the side panel closest to the front Bracket to mount
the center Bracket, (Figure 2) and the very last two factory bolts, (if equipped), along the side panel to
mount the rear Bracket, (Figure 3). Partially attach center and rear Brackets to the vehicle with
hardware listed in Step 2.
4. Align the holes on the bottom of the Side Bar with the holes on the Mounting Brackets. Attach the Side
Bar to the Mounting Brackets with the included (6) 8-1.25mm x 30mm Hex Head Bolts, (6) 8mm Flat
Washers, and (6) 8mm Lock Washers, (Figure 4). Do not tighten at this time.
5. Level and adjust Side Bar properly and tighten all hardware.
6. Repeat Steps 2-5 for passenger Sidebar.
7. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to add a
protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could
damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild
soap may be used also to clean the Sidebar.
For gloss black finishes: Mild soap may be used to clean the Sidebar.

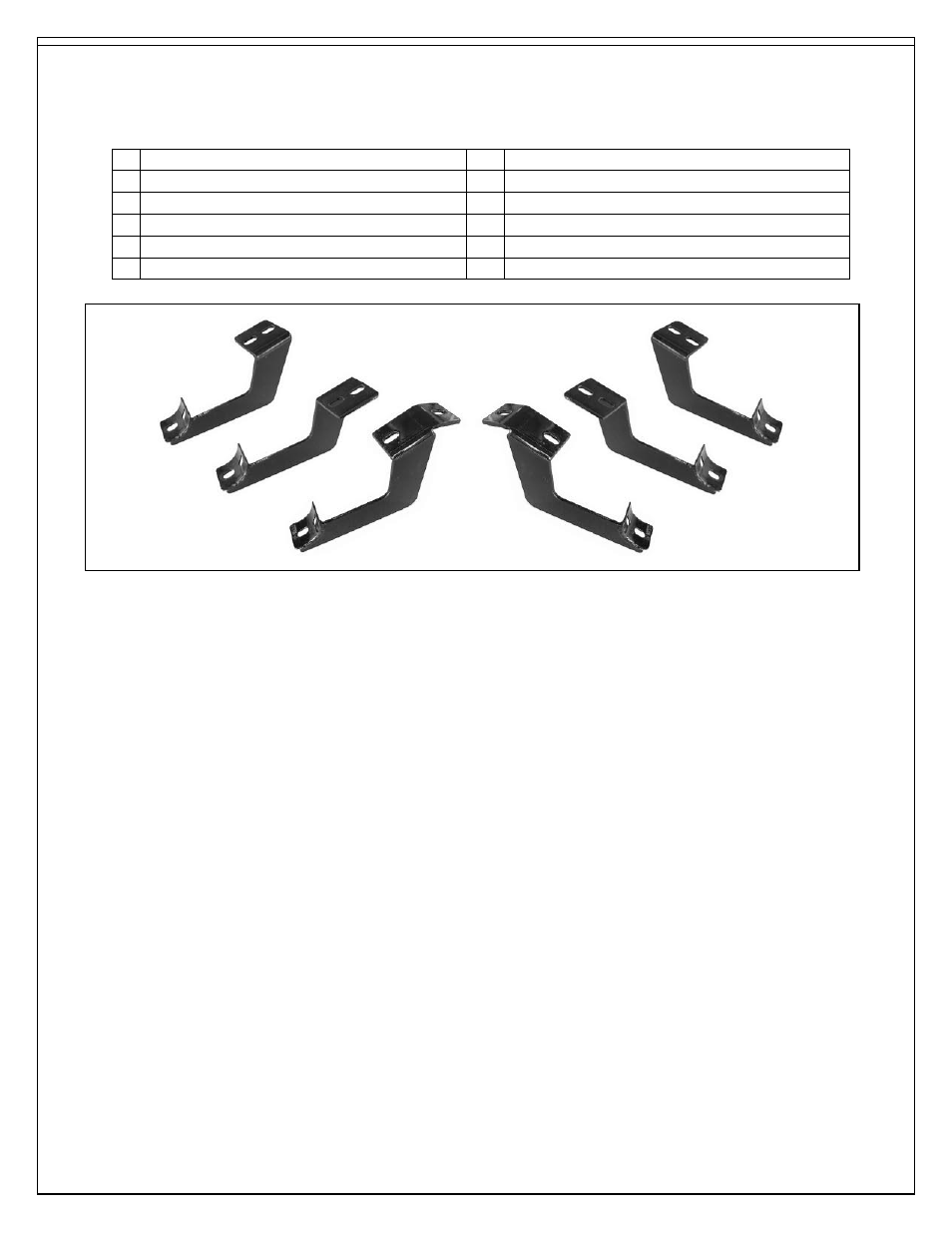

Driver side
rear Mounting
Bracket
Driver side
center Mounting
Bracket
Driver side front
Mounting Bracket
Passenger side
rear Mounting
Bracket
Passenger side
center Mounting
Bracket
Passenger side front
Mounting Bracket
