2010 - 12 TOYOTA 4RUNNER "SR5" AND "LIMITED" MODELS
WITH ROCKER PANEL EXTENSIONS
EXCLUDES "TRAIL EDITION"
Page 2 of 2 4/3/12 (DP)

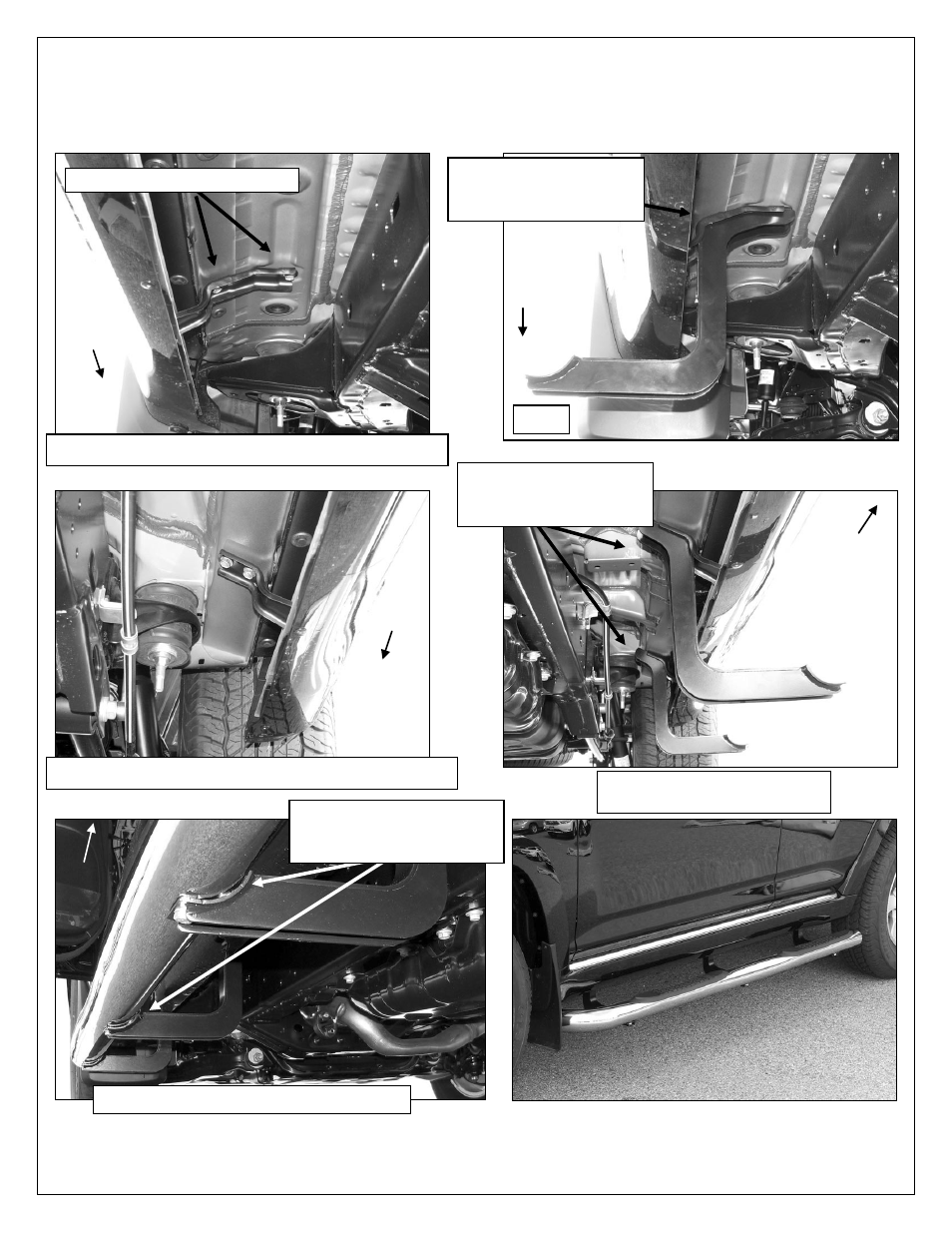

Driver Side Installation Pictured
Remove (2) factory hex bolts
(Fig 1) Driver/Left Front Mounting Location Pictured
(Fig 4) Driver/Left Center and
Rear Brackets Pictured
(Fig 5) Driver/Left Rear Bracket Pictured
8mm x 30mm Hex Bolts
8mm Lock Washers
8mm Flat Washers
Complete Installation
Front
Front
Rear
Front
Rear
Fig 2
(Fig 3) Driver/Left Rear Mounting Location Pictured
(2) 8mm x 30mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm Flat Washers
8mm x 30mm Hex Bolts
8mm Lock Washers
8mm Flat Washers
