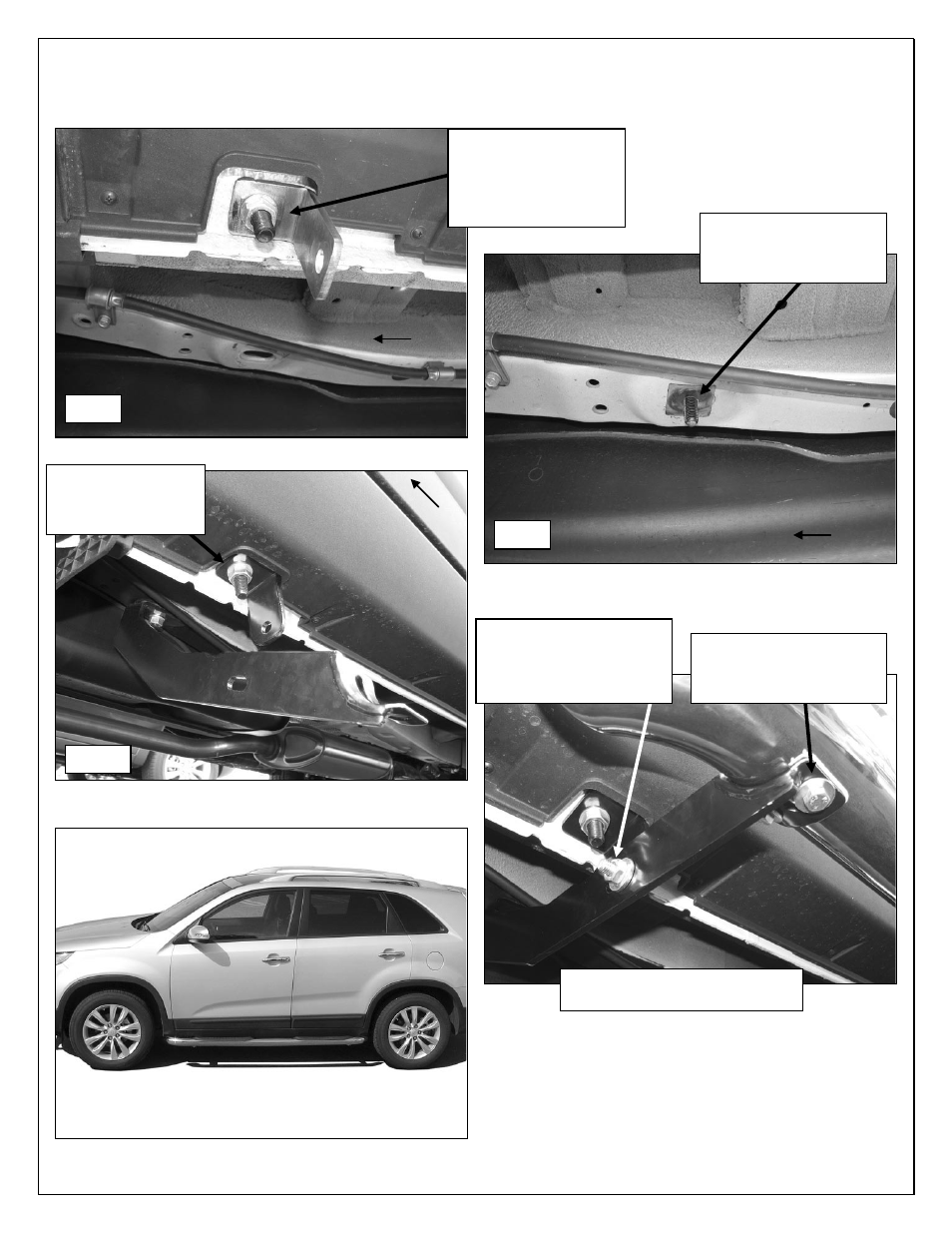

Dee Zee DZ370403 - Manual (Page 4)

SIDEBAR
2011 SORENTO
Page 4 of 4 6/30/10 (DP)
Passenger Side Installation Pictured
Complete Installation
8mm x 25mm Hex Bolts
8mm Lock Washers
8mm Flat Washers
Fig 10
(Fig 11) Passenger side rear
Mounting Bracket pictured
Fig 8
Fig 9
12mm x 40mm Short
Bolt Plate (short leg)
12mm Lock Washer
12mm Flat Washer
12mm Hex Nut
12mm x 40mm Long
Bolt Plate (long leg)
12mm Plastic Retainer
10mm x 30mm Hex Bolt
10mm Lock Washer
(2) 10mm Flat Washers
10mm Hex Nut
12mm Lock Washer
12mm Flat Washer
12mm Hex Nut
Rear
Rear
Rear
