3" ROUND & 4" OVAL SIDEBAR (90-DEG BENT END)
DODGE RAM 2500/3500 REG. CAB 10-12 / RAM 1500 REG. CAB 09-12
Page 3 of 3 1/12/09 Rev 1(DP)
Complete Installation
PASSENGER SIDE INSTALLATION PICTURED

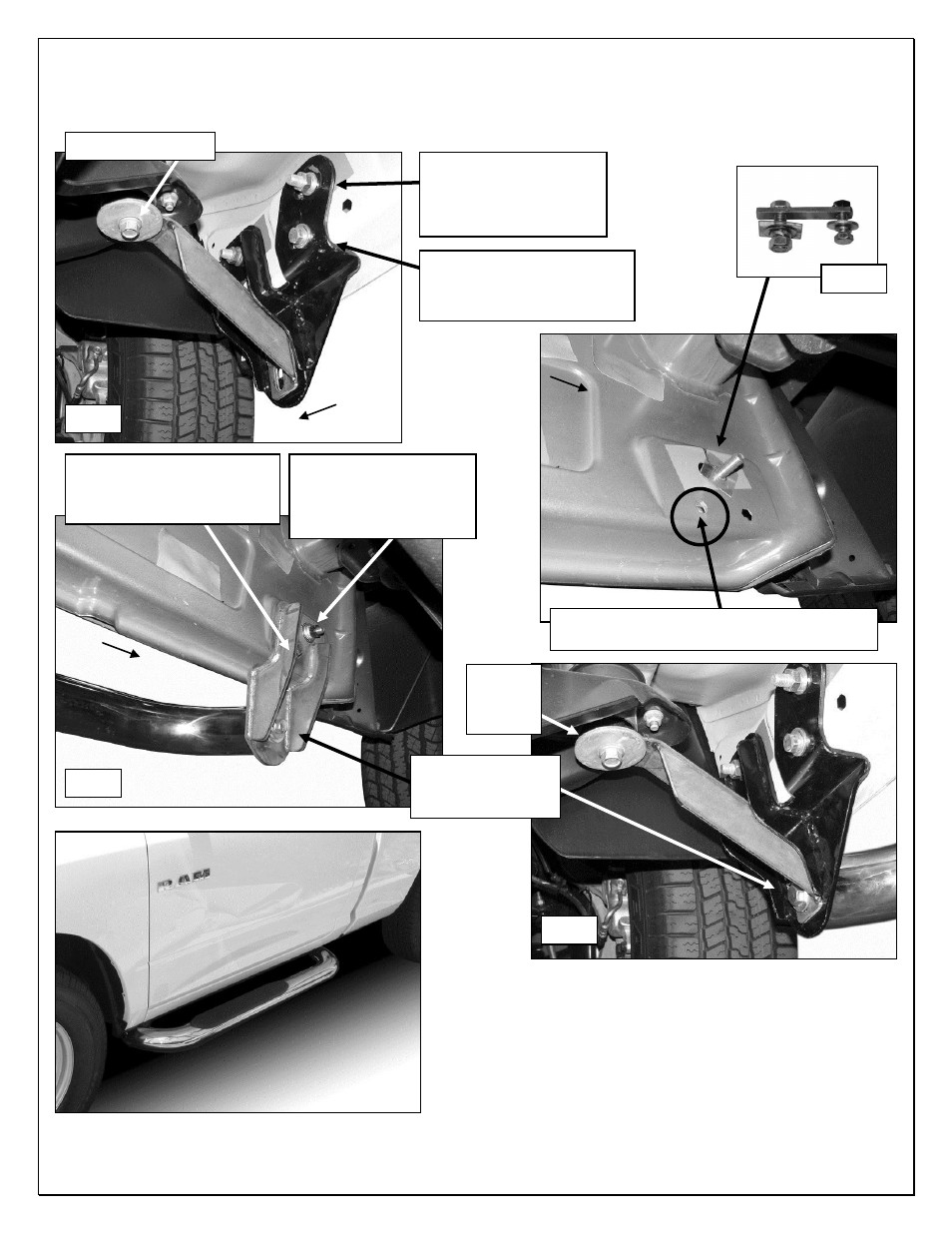

Fig 2
Fig 4
Fig 5
Rear
(Fig 3) Rotate Bolt and Nut plate to line up
the Nut with this hole in body panel
1/2" x 2" Hex Bolt
1/2" Flat Washer
1/2" Lock Washer
(1) 10mm x 35mm Hex Bolt
(1) 10mm Lock Washer
(1) 10mm Flat Washer
(1) Bolt and Nut Plate
(2) 12mm Hex Nut
(2) 12mm Lock Washer
(2) 12mm Flat Washer
Fig 1C
Rear
Front
(1) Bolt and Nut Plate
(2) 12mm Hex Nut
(2) 12mm Lock Washer
(2) 12mm Flat Washer
(1) 10mm x 35mm Hex Bolt
(1) 10mm Lock Washer
(1) 10mm Flat Washer
Factory body bolt
Factory
body
bolt
