SIDE BAR
2005-10 DODGE DAKOTA QUAD CAB
Page 1 of 1
NOTICE:
The figures here are for reference only and may have differences with the actual product you received, however
they share the same assembly way.
PART LIST:
No.
Name
Qty Remarks
No. Name
Qty Remarks
○
1
Side bar
2
○
7
Flat washer
10
1/2
＂
○
2
Front bracket
2
○
8
Lock washer
10
1/2
＂
○
3
Center bracket
2
○
9
Hex head bolt
2
M8
×25
○
4
Rear bracket
2
○
10
Flat washer
2
8mm
○
5
Hex bolt
6
M12
×120
○
11
Lock washer
2
8mm
○
6
Hex bolt
4
1/2
＂-13×1.75＂
STEP 1.Remove the contents from box and check for damage. Verify all parts are present. Read instructions
completely before beginning.

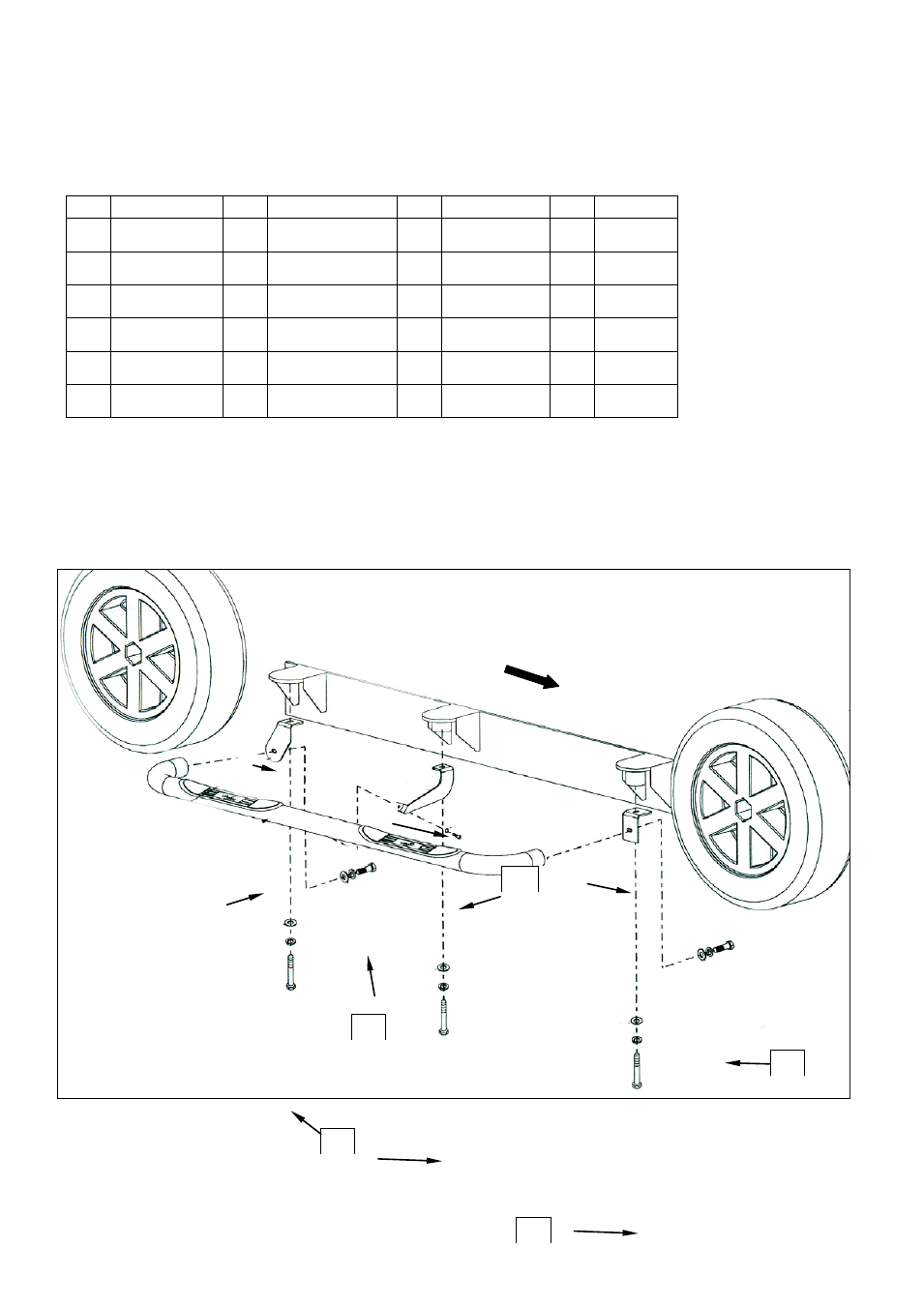

STEP 3. Remove existing body mount bolts .SEE FIGURE 1.
STEP 4.Install front, center and rear brackets as shown. Hand tighten.SEE FIGURE 1.
STEP 5. Attach side bar as shown. Hand tighten. SEE FIGURE 1.
STEP 6. Make sure side bar is properly aligned with vehicle.
○
1
Forward
○
2
○
3
○
4
○
6
○
7
○
8
○
6
○
7
○
8
○
5
○
7
○
8
○
5
○
7
○
8
○
9
○
10
○
11
