Attach center support bracket as shown in Fig.3-4. Place hooked T-bolt through body with threaded stud through
hole. Secure bracket to bolt using 3/8 nut, lock-washer, and flat washer. Attach side bar to center support bracket
with 3/8 bolt, lock washer, and flat washer
The customer should take off the black sticker on the middle of frame, and then they will see two
holes there. Use the T-bolt ( bolt plate ) hook the center hole through the neighbor hole like the left
picture above. After that, they can install the center bracket without any problem.

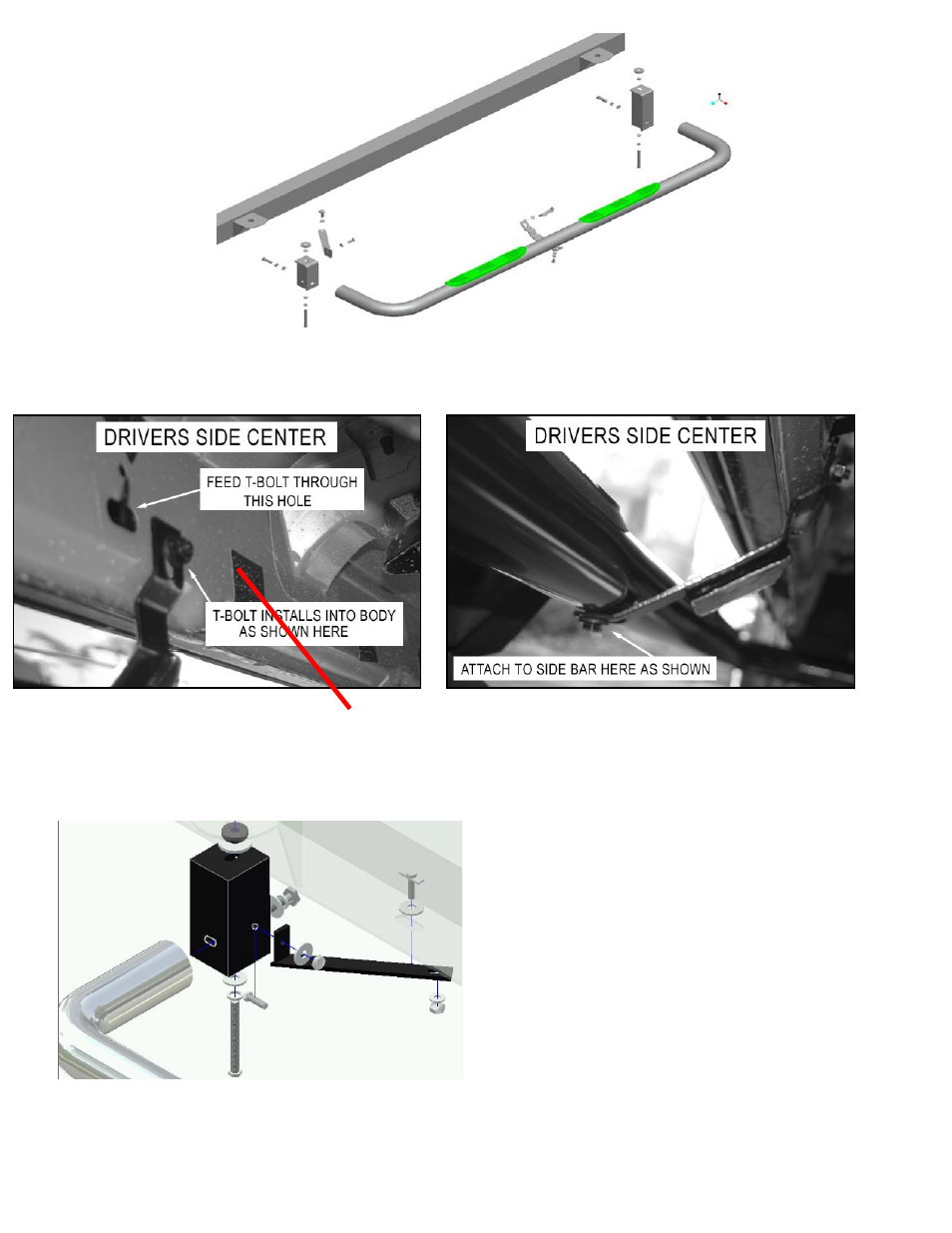

Figure 1.3 –Driver-Side Front Assembly View (1500/2500/3500 Series set-up shown)
Figure 1.5 – 1500/2500/3500 Front Mount Assembly
