Page 3 of 3 8/20/08 (DP)

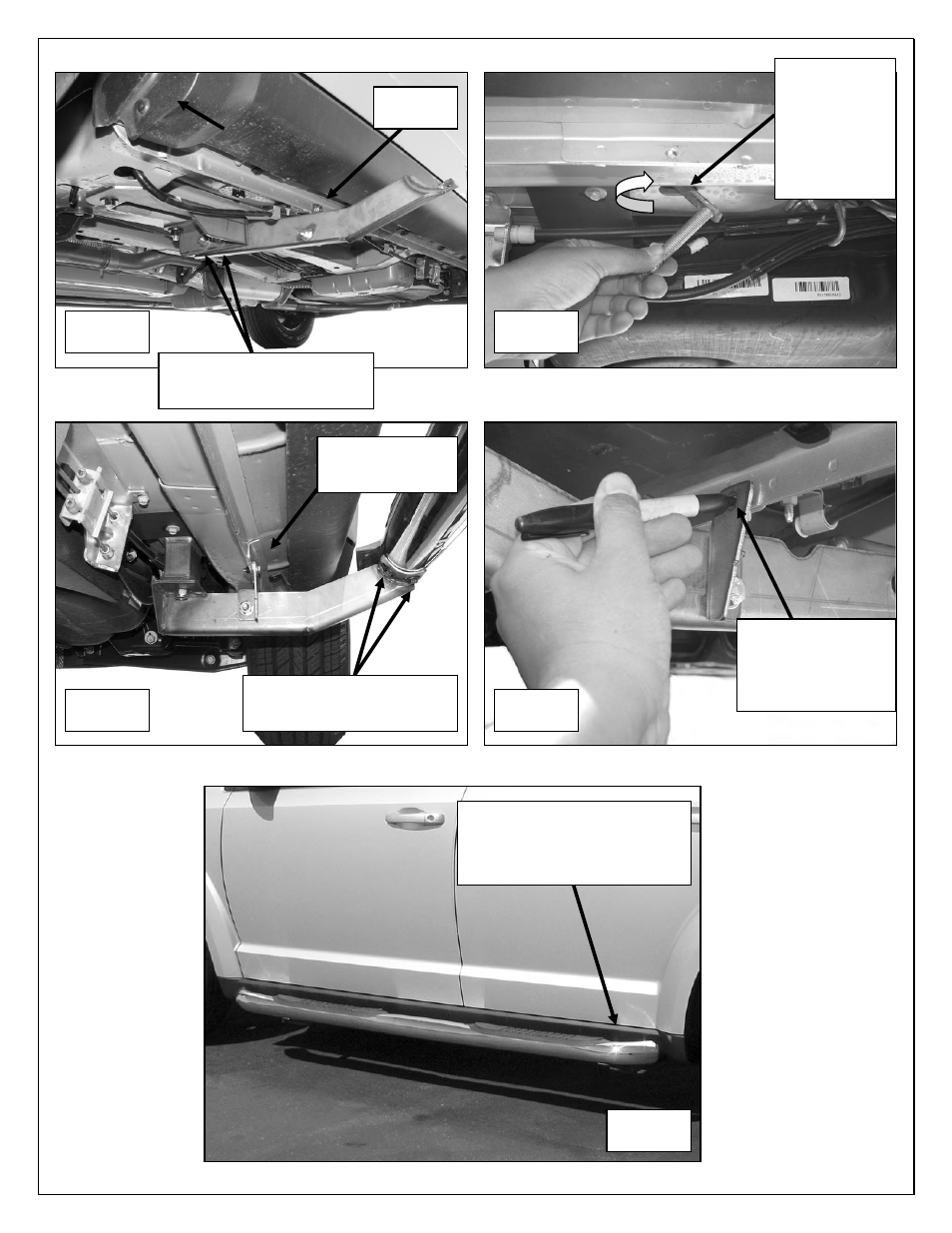

Driver side rear
Long Bolt Plate
installation.
Rotate Bolt
Plate 90-
degrees
counter-
clockwise after
installation
Bolt Support Tab on
each bracket then
mark for drilling
(Driver side front
Shown)
Drilling
Location
Front
8mm x 25mm Hex Bolt
8mm Lock Washer
8mm Flat Washer
Fig 2 Fig 3
Fig 4 Fig 5
Installation
Complete
Driver side rear
shown with
Support Bracket
installed (drilling
required)
Note distance from end of the
Sidebar to step pad to determine
driver Sidebar. Step pad closest to
the end of the tube goes toward
rear of vehicle.
Front
Rear
Fig 6
10mm x 35mm Hex Bolts
10mm Lock Washers
10mm Flat Washers
