PARTS LIST:
1 Driver/Left Sidebar 4 12-1.75mm x 50mm Hex Head Bolt
1 Passenger/Right Sidebar 8 12mm ID x 38mm OD x 3mm Flat Washers
2 Front Mounting Brackets 8 12mm Lock Washers
2 Rear Mounting Brackets 4 10-1.50mm x 25mm Hex Head Bolts
2 Rear support Bracket 8 10mm ID x 30mm OD x 3mm Flat Washers
4 Plastic Rings 4 10mm Hex Nuts
4 12-1.75mm x 110mm Hex Head Bolt, zinc plated GR5 4 10mm Lock Washers
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. MINOR DRILLING REQUIRED.
2. Remove the driver front and rear body mounts. There are a total of four Mounting Brackets in the hardware kit.
Locate the smaller brackets and loosely install one on the driver side front using the factory bolt or the included
(1) 12mm x 110mm Hex Head Bolt, (1) 12mm Flat Washer, and (1) 12mm Lock Washer. Do not tighten at this
time.
3. Repeat step 2 to install driver rear Mounting Brackets. NOTE: The larger Mounting Brackets are for the rear
locations.
4. Attach driver Sidebar to Mounting brackets using the included (2) 12mm x 50mm Hex Head Bolts, (2) 12mm Lock
Washers, and (2) 12mm Flat Washers.
5. Align and level Sidebar, then tighten all hardware at this time.
6. Attach the Support Bracket to the rear Mounting Bracket with the included (1) 10mm x 25mm Hex Head Bolt, (2)
10mm Flat Washers, and (1) 10mm Lock Washers, using the holes in the Mounting Brackets that are towards the
front of the vehicle.
7. Using the remaining hole in the Support Bracket as a guide, mark and carefully drill the body mount housing with
a 7/16” drill bit.
8. Attach Support Bracket to body mount using the included (1) 10mm x 25mm Hex Head Bolt, (2) 10mm Flat
Washers, and (1) 10mm Lock Washer. Tighten all hardware at this time.
9. Repeat steps 2-8 for passenger Sidebar.
10. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
INSTALLATION INSTRUCTIONS
SIDE BAR
98-01 DODGE RAM P/U QUAD CAB 4 DR
94-01 DODGE RAM P/U EXT CAB 2 DR
PART NUMBER DZ 37022x & DZ 37023x

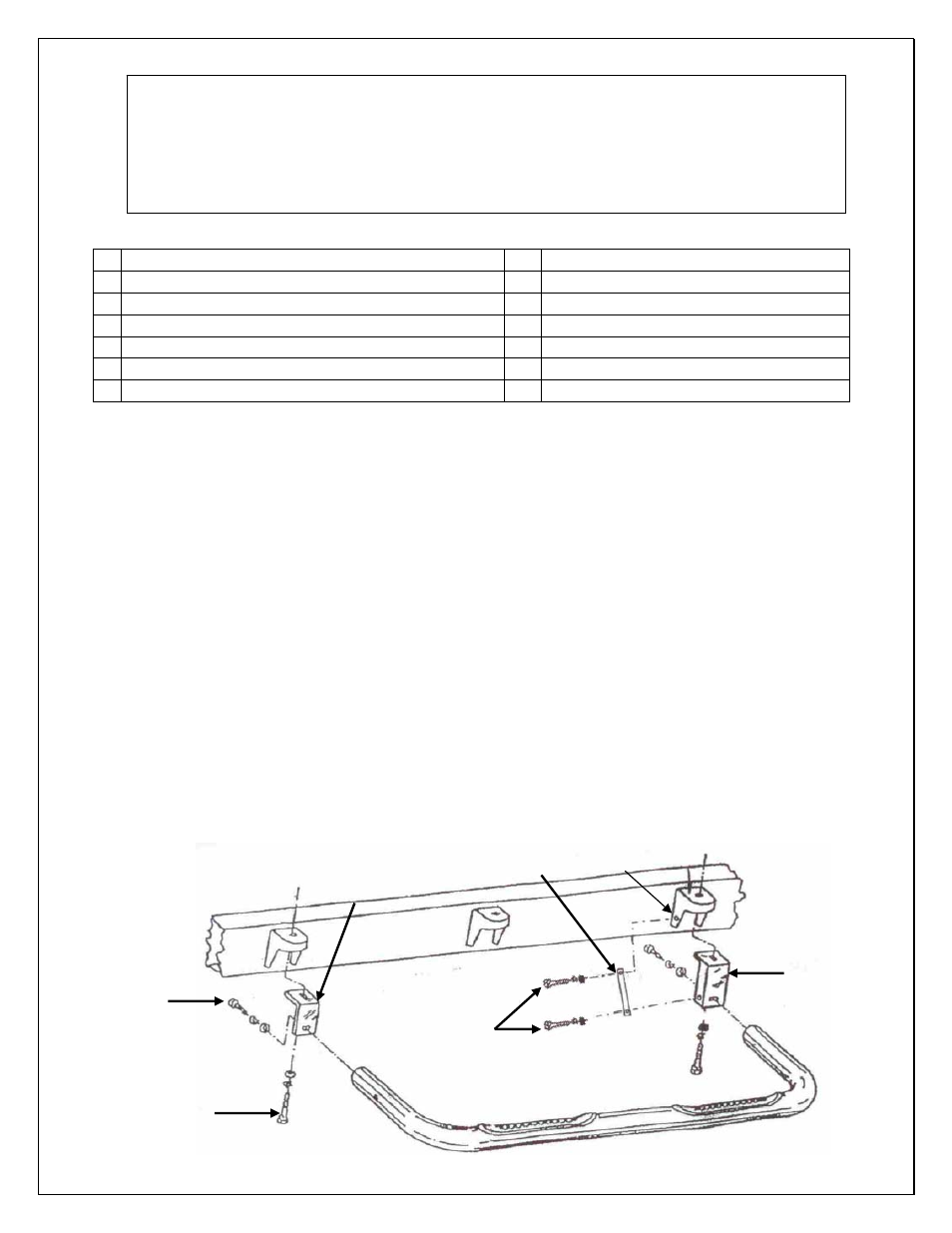

12mm x 50mm Hex
Head Bolt
12mm Flat Washer
12mm Lock Washer
12mm x 120mm Hex
Head Bolt
12mm Flat Washer
12mm Lock Washer
10mm x 25mm Hex
Head Bolt
10mm Flat Washers
10mm Lock Washer
10mm Hex Nut
Rear Bracket
Support
Bracket Front
Bracket
Drilling
Location
The pictures are only for reference, maybe the actual brackets maybe a little different.
