NOTE: Read entire instruction sheet before you start installtion and assembly.
WARNING
• Do not begin the installation of the product, until you have read and understood the
instructions and warnings provided in the installation manual. If you have any
questions regarding the warnings and instructions, please contact your local supplier.
• Please refer to the manufacturers installation guide for proper wall recommendation
distance to avoid the risk of property damage.
• This product should only be installed by someone of good mechanical aptitude, with
experience and basic building, and fully understands.
• Make sure that the supporting surface will safely support the combined load of the
equipment and all attached hardware and components.
• Never exceed the Maximum Load Capacity.
• If mounting to wood wall studs, make sure that mounting screws are anchored into
the center of the studs. Use of an “edge to edge” stud finder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position
equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can damage the items,
greatly reducing their holding power.
• This product is intended for indoor use only. The use of this product other then indoors
could lead to product failure and personal injury,
2 1

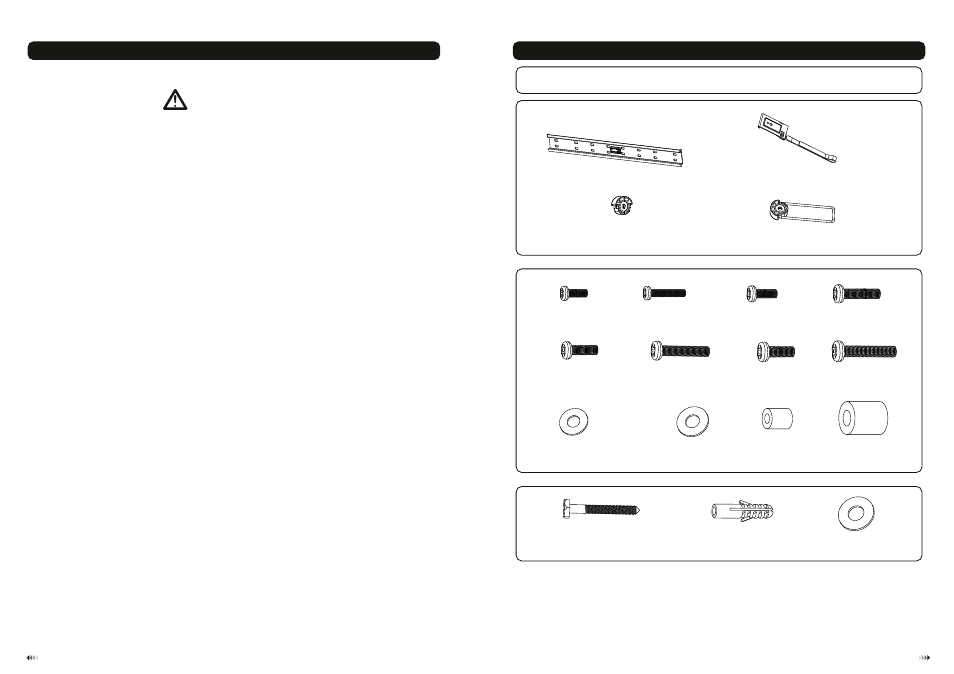

Component Checklist
M6x55 (x )
W-A
lag bolt 6 concrete anchor 6
W-B
(x )
Package M
Package W
(x2) Adapter bracket
B wall plate
A
(x1)
Supporting spacer (x1)
D
Supporting spacer (x1)
C
Tools required
Phillips Head Screw driver(200mm length exclude the handle)
M6 Socket and Wrench
Electric drill and 10mm masonry bit for concrete wall installation
Marking Pen
Hammer ·
·
·
·
·
M4x30
M-B
(x4) M4x14
M-A
(x4) M5x14 (x4)
M-C
M5x30 (x4)
M-D
M6x14 (x4)
M-E
M6x30 (x4)
M-F
M8x30
M-H
(x4)
Ø17.5xØ8x20
M-L
(x4) Ø ( 4) 12xØ6x13 x
M-K
Ш Ш (x ) 12x 5.5 Washer 2
M-I
Ш Ш (x2) 16x 8.2 Washer
M-J
M8x14 (x4)
M-G
Ш Ш (x ) 16x 6.2 Washer 6
W-C
IMPORTANT: Please ensure all parts listed are included prior to your installation. If any parts are missing or
faulty, please contact the special franchiser for a replacement.
