For Flat Back Screen
SCREEN
SPACER
SCREEN
fig C.1 fig C.2
SCREW
DD DD
OR
Select the small,medium,large or extra large screws from the baffled .Fastener pack then attach
screen brackets(DD) to screen following figure C.1 or C.2 on page 7.
SCREW

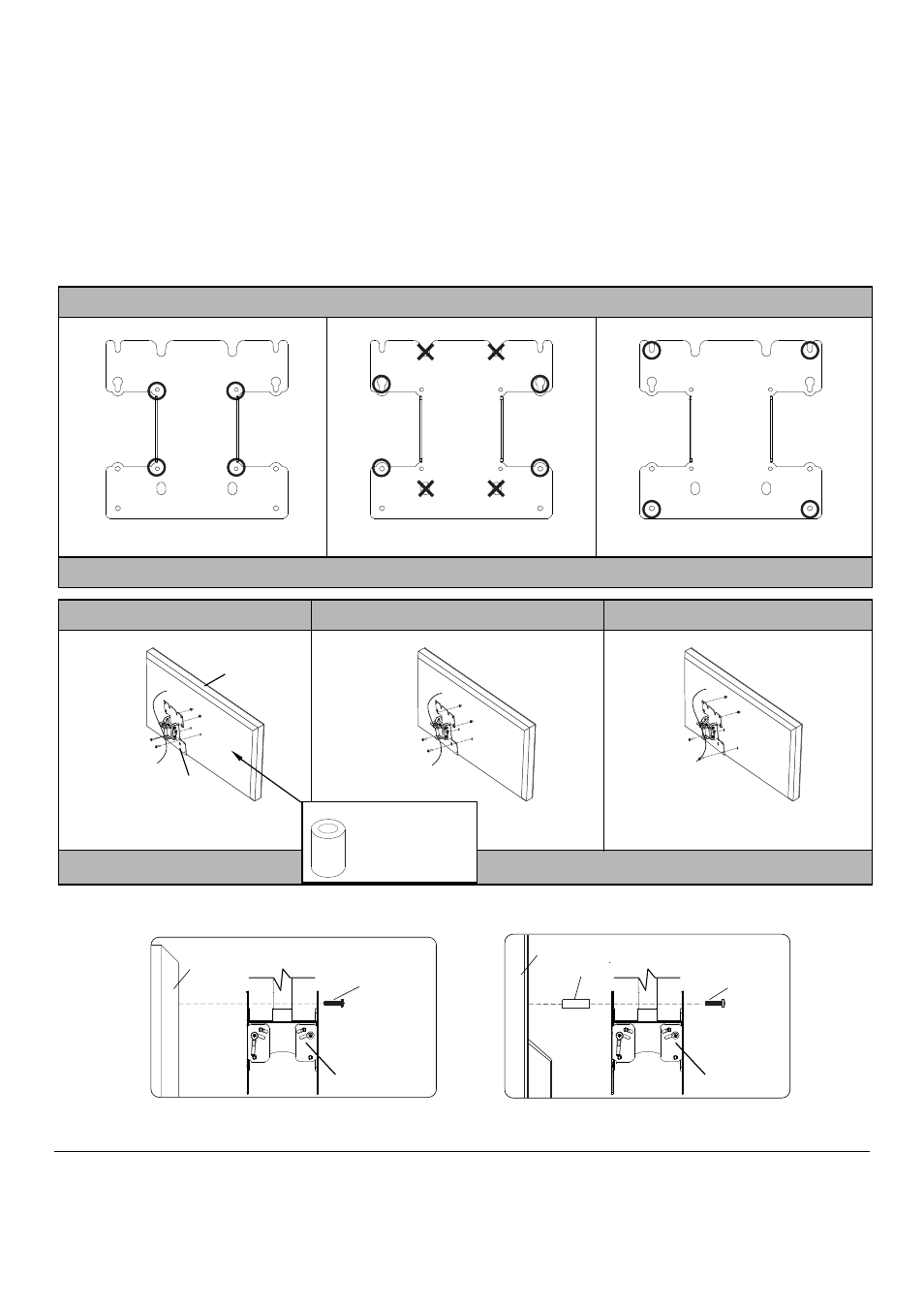

Attaching display mounting plate to a Screen with a VESA ® Mounting Pattern
Mounting Patterns
VESA ® 200 x 100 VESA ® 200 x 200
VESA ® 100 x 100
VESA ® 200 x 100 VESA ® 200 x 200 VESA ® 100 x 100
Choose hole pattern as shown in detail 3 for VESA mounting pattern. Begin with the shortest length screw, hand thread
through adapter plate into screen as shown in detail 4. Screw must make at least three full turns into the mounting hole
and fit snug into place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length
screw from the fastener pack. Repeat for remaining mounting holes. Securely tighten screws.
NOTE: Spacers do not have to be used, depending upon the type of screen.
NOTE: For screens with a hole
pattern in a pocket,
spacers go between
adapter plate and
screen.
DETAIL 3
DETAIL 4
ADAPTER
PLATE
SCREEN
