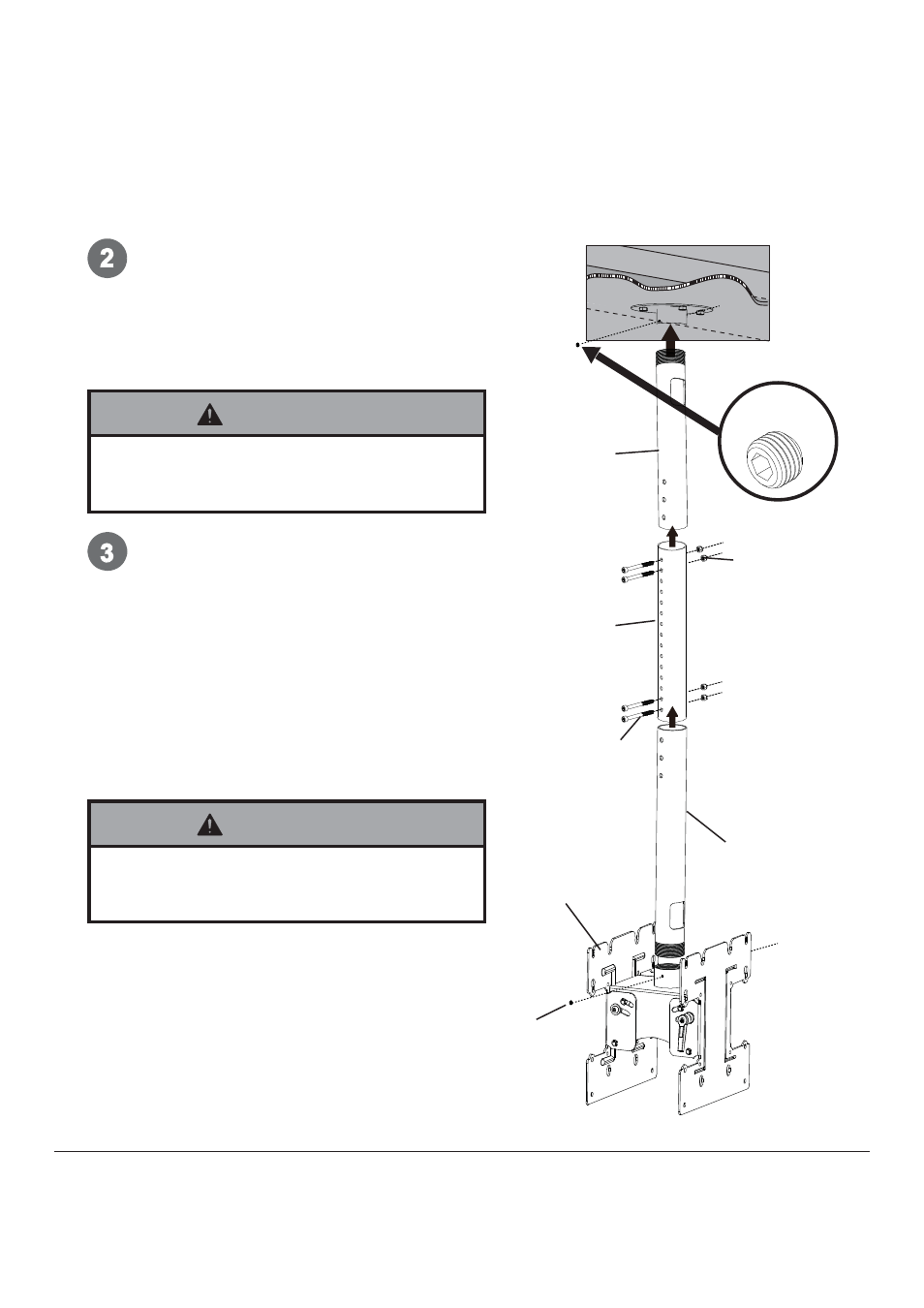

Attach threaded end of adjuster tube (AA) to threaded
fitting in ceiling plate

Attach threaded end of adjuster tube (DD

M

DD

) to threaded

fitting in ( ) and lock nut ( ).

. Tighten securely aligning

slot in end of adjuster tube (AA ) with one of the holes
in the side of threaded fitting. Insert and tighten one
M4 x 3 mm hexagon fillister screw ( M ) to lock adjuster
tube (AA) to threaded fitting.

‡ Installer must verify that the ceiling will safely support

the combined weight of all attached equipment and
hardware.

WARNING

‡ Adjuster tube must be fully threaded (six or seven

full turns) onto threaded fitting in ceiling plate and then
locked with screw (C).

WARNING

Installation of Extension Column

AA

M

CC

DD

M

N

BB

N

Slide extension pipe (CC ) over adjuster tube (BB)
to the desired height. Attach with two M8 x 60 mm
hexagon fillister head screws ( N) and lock nut ( N ).

Slide extension pipe (BB) over adjuster tube ( AA)
to the desired height. Attach with two M8 x 60 mm
hexagon fillister head screws ( K ) and lock nut ( K ).
