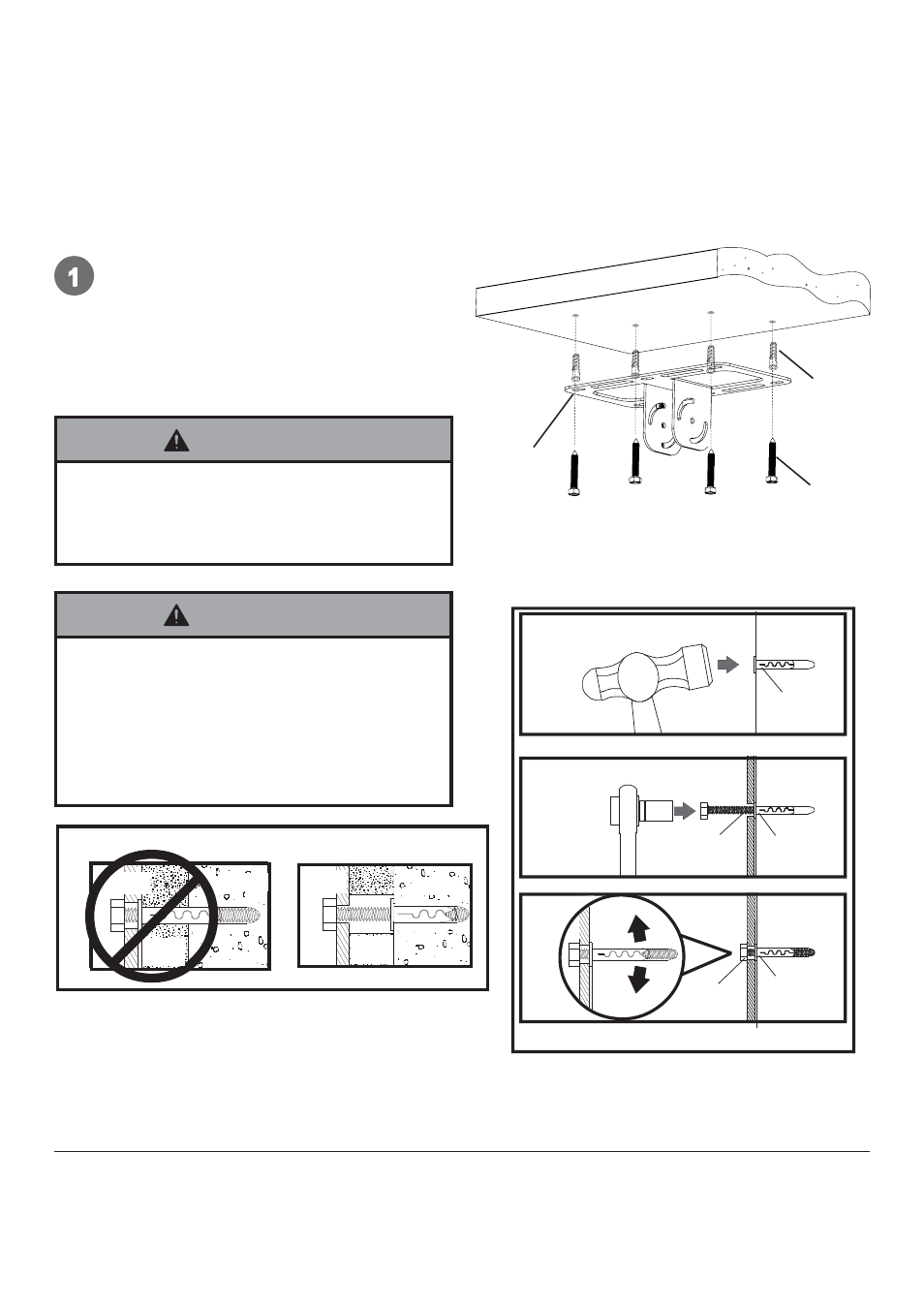

Installation to Concrete Ceilings
Drill four 3/8" (10 mm) dia. holes to a minimum depth of
1.57" (40 mm). Attach ceiling plate (EE ) using four
concrete anchors (K) and M8x50 wood screws ( L )
as shown in Illustration A and 1, 2, and 3 (below).
Tighten all fasteners.
Illustration A
CONCRETE CEILING
1
3
Drill hole and insert anchor
Place ceiling plate over anchor and secure with screw
After repeating step one tighten all fasteners
concrete
ceiling
L
L
2
CUT
A
W
A
Y
VIEW
INCORRECT
concrete
metal
bracket
plaster/
dry wall
CORRECT
concrete
metal
bracket
plaster/
dry wall
‡ Tighten wood screws firmly, but do not overtighten.
Overtightening can damage the bolt, greatly reducing
its holding power.
WARNING
‡ Concrete anchors are not intended for attachment to
concrete wall covered with a layer of plaster, drywall,
or other finishing material. If mounting to concrete wall
covered with plaster/drywall is unavoidable, plaster/
drywall (up to 5/8" thick) must be counterbored as
shown below. If plaster/drywall is thicker than 5/8",
custom fasteners must be supplied by installer.
WARNING
K
K
K
EE
K
L
