www.avenview.com 7

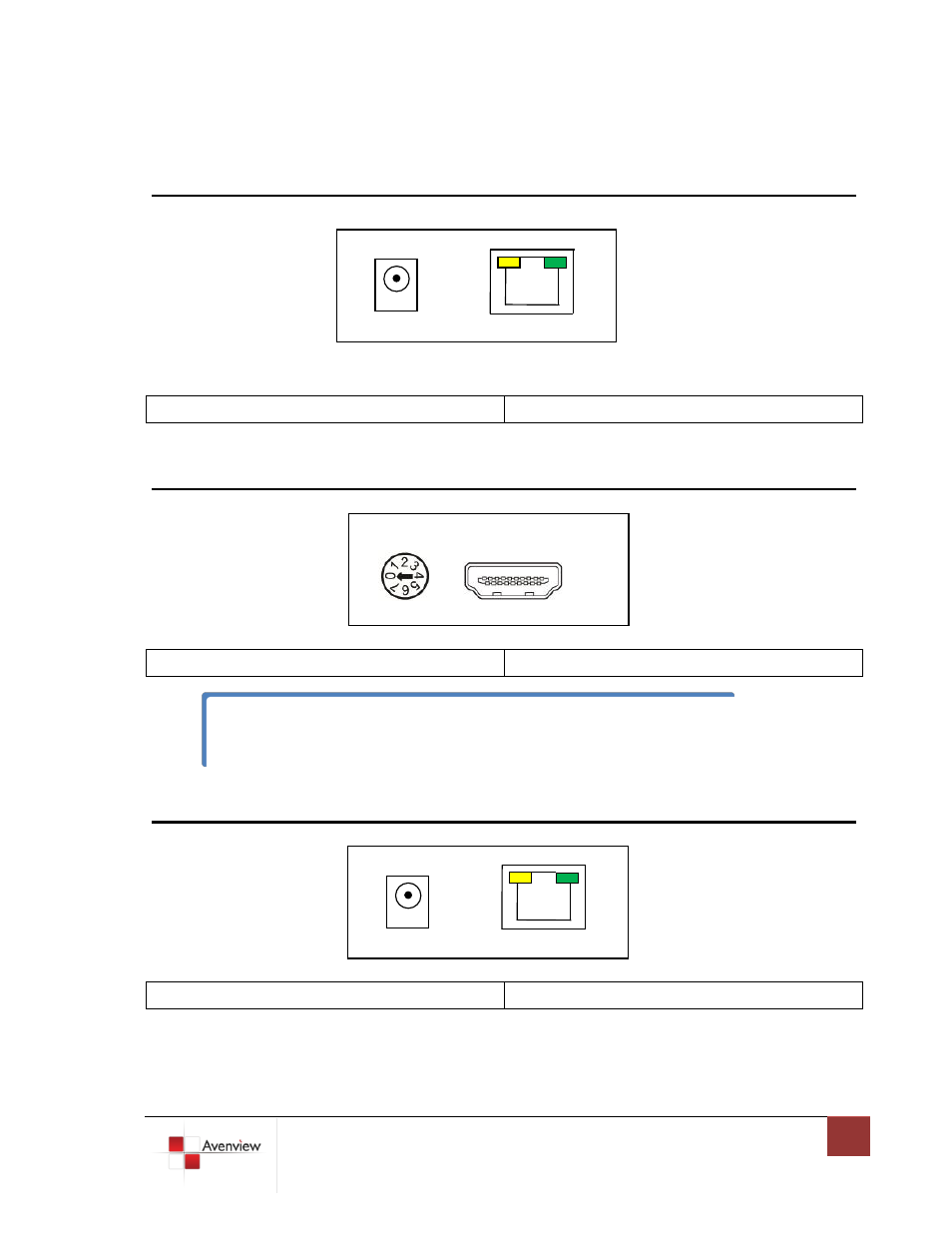

REAR PANEL (Transmitter, HDM-C5-3-S)
1. 5V 4A DC Power Connector 2. RJ45 Out
FRONT PANEL (Receiver, HDM-C5-3-R)
1. Rotary Switch 2. HDMI Out
REAR PANEL (Receiver, HDM-C5-3-R)
1. 5V 4A DC Power Connector 2. RJ45 In
RJ45-OUT
+5V DC
HDMI-OUT
EQ
EQ: Adjust the 8-level equalization control knob to the received HDMI signals.
0 – 7 = Strongest – Weakest.
It is recommended to switch from 7 to 0 to find the optimal visual experience.
RJ45-IN
+5V DC
