1.7 Panel Description

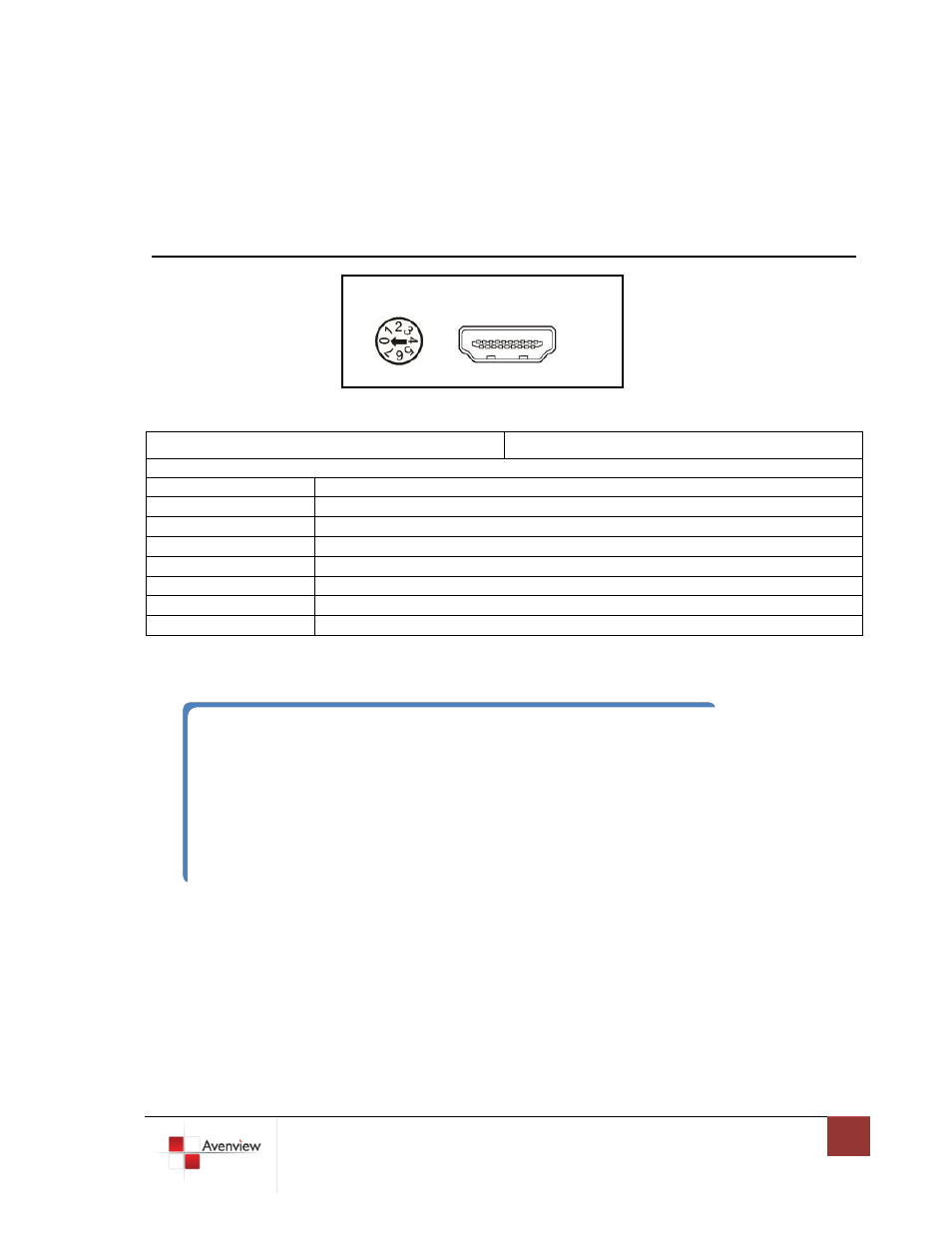

FRONT PANEL (Transmitter, HDM-C5-3-S)
1. Rotary Switch 2. HDMI Input
DIP SWITCH
0 HDMI Mode with Surround Sound Audio Output
1 HDMI mode with Stereo Audio Output
2 DVI Mode
3 Reserved
4 Reserved
5 Reserved
6 Use Default EDID
7 Learn EDID From the Display
HDMI-IN
Mode
Note for EDID (Extended Display Identification Data) learning
1. Please connect the display which you want to read EDID with a HDMI cable to the transmitter’s
HDMI-IN and turn Mode to 7 so the TX can learn the EDID information from the connected HDTV.
The LED on the RJ45-OUT of TX will dim and light again in a few seconds, which indicates the EDID
learning process is completed.
2. Turn Mode clockwise from Mode 7 to Mode 0 or Mode 1 for desirable audio setting and enjoy the
experience. DO NOT let the rotary arrow pass by Mode 6 which will erase the EDID just learned and
restore the default EDID.
