Installation and Operator’s Manual Page 40 of 63
(PVI-3600-OUTD-UK-F-W Rev.: 1.0)

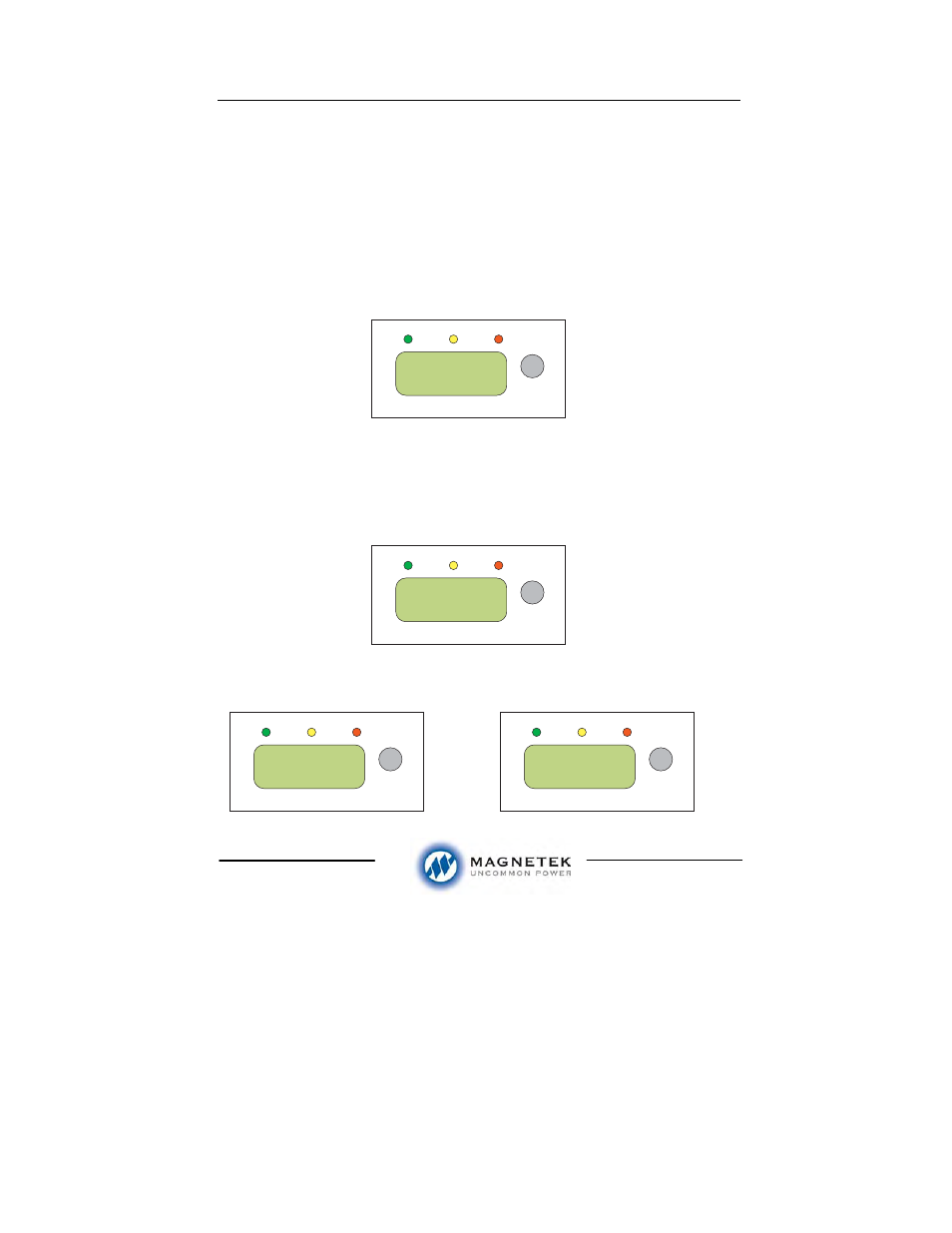

5.5 LCD Display
The 2-line LCD display is located on the front panel and shows:
the status of the inverter and statistical data;
service messages for the operator;
messages of faults or damages found.
Data are shown cyclically, the screens change every 5 seconds. On the right of the
display there is a button that when pressed freezes the screen. Pushing the button
again unfreezes the screen. When AURORA is turned on the display shows the
following screen for about 10 seconds:
Afterwards it begins to check the grid. While checking the grid the display shows
the three following screens cyclically:
This screen shows how many seconds are left before a new grid connection
attempt will start.
This screen shows the grid voltage and the related status (in range or out of
range).
or
Initializing......
Please Wait
Measuring Riso
……………..
Vgrid ### V
In range Vgrid ### V
Out of range!
