ASSEMBLY
2910/2995/2996 MOUNTING BRACKET
1. Remove 3/8 x 2-1/2" roll pin from end of 1-1/2" diameter shank and remove coulter.
2. 2910 Coulter-Bolt the top mount plate to the third set of holes in the mounting bracket with two
1/2 x 1-1/2" bolts, lockwashers and nuts.
2995/2996 Coulter-Bolt the top mount plate to the second set of holes in the mounting bracket
with two 1/2 x 1-1/2" bolts, lockwashers and hex nuts.
3. Slide bracket over pivot casting, reinstall coulter on shank and reinsert roll pin.
4. Install and tighten 5/8" setscrew in lock collar to 110 ft./lb. torque maximum.
5. Attach floating residue manager stem to mounting bracket with two 1/2 x 3-1/2" bolts and lock
hex nuts at desired height.
6. Assemble spoke wheels (2 per row) and attach to floating residue manager stem.
SPOKE WHEEL ASSEMBLY
1. Before assembling spoke wheel, bearing
assembly and hub cap, remove the seal
from the exposed side of the bearing in the hub and bearing
assembly if you wish touse the zerk to grease the bearing,
otherwise the bearing is sealed.

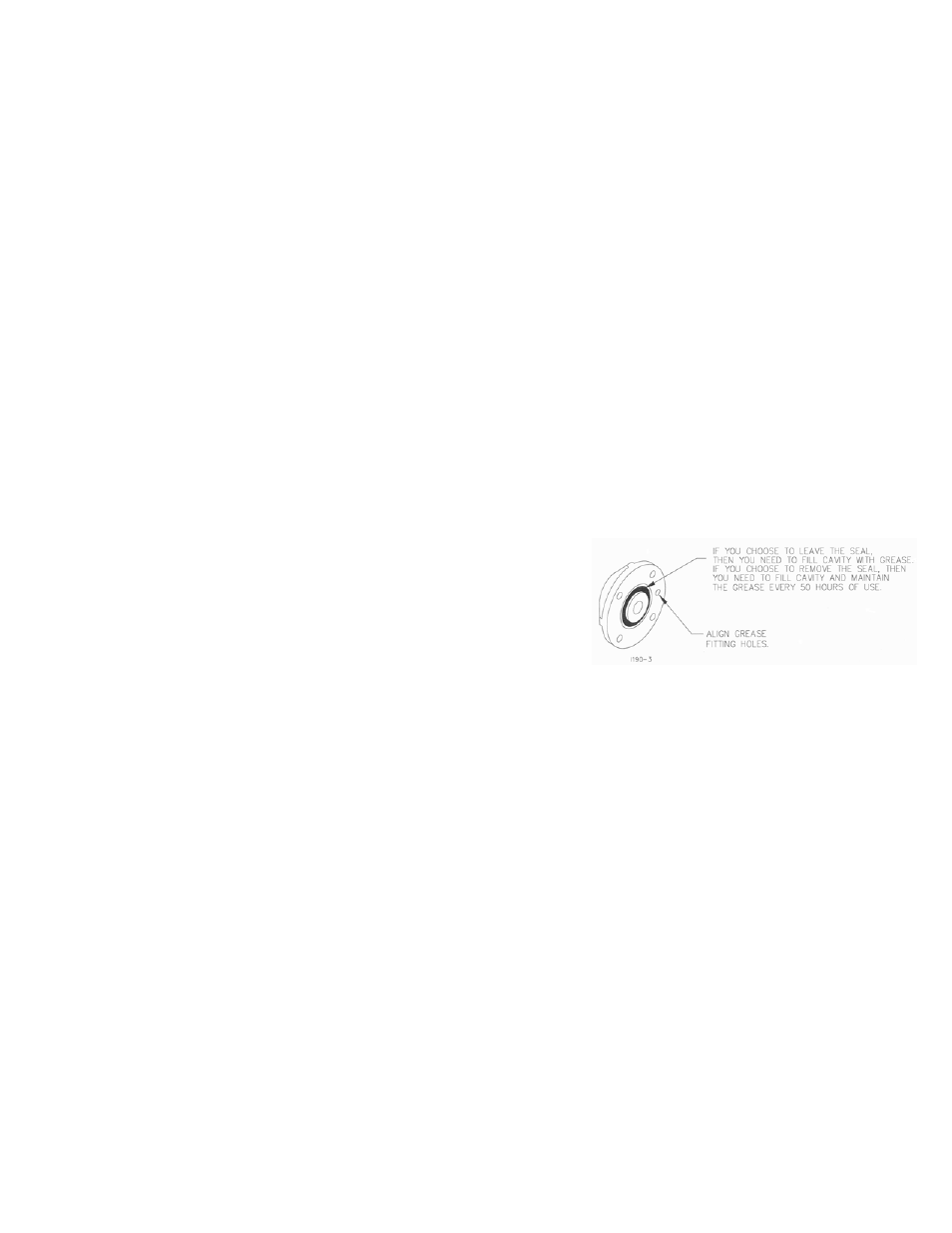

2. When assembling spoke wheel, bearing
assembly and hub cap, be sure to align the grease fitting hole with the hole in the spoke
wheel and the groove in hub cap to assure
proper greasing of wheel and hub assembly.
3. Assemble spoke wheel, bearing assembly and hub cap as shown on the parts identification
page. Be sure to install the 11/16" spacers and bearing shields. Stagger spoke wheels so
that half of the rows have a left wheel leading and half of the rows have a right wheel leading.
Torque 150 ft.lbs.
4. Fill hub and bearing with general purpose grease if seal was removed from bearing in step 1.
