INSTALLATION INSTRUCTIONS

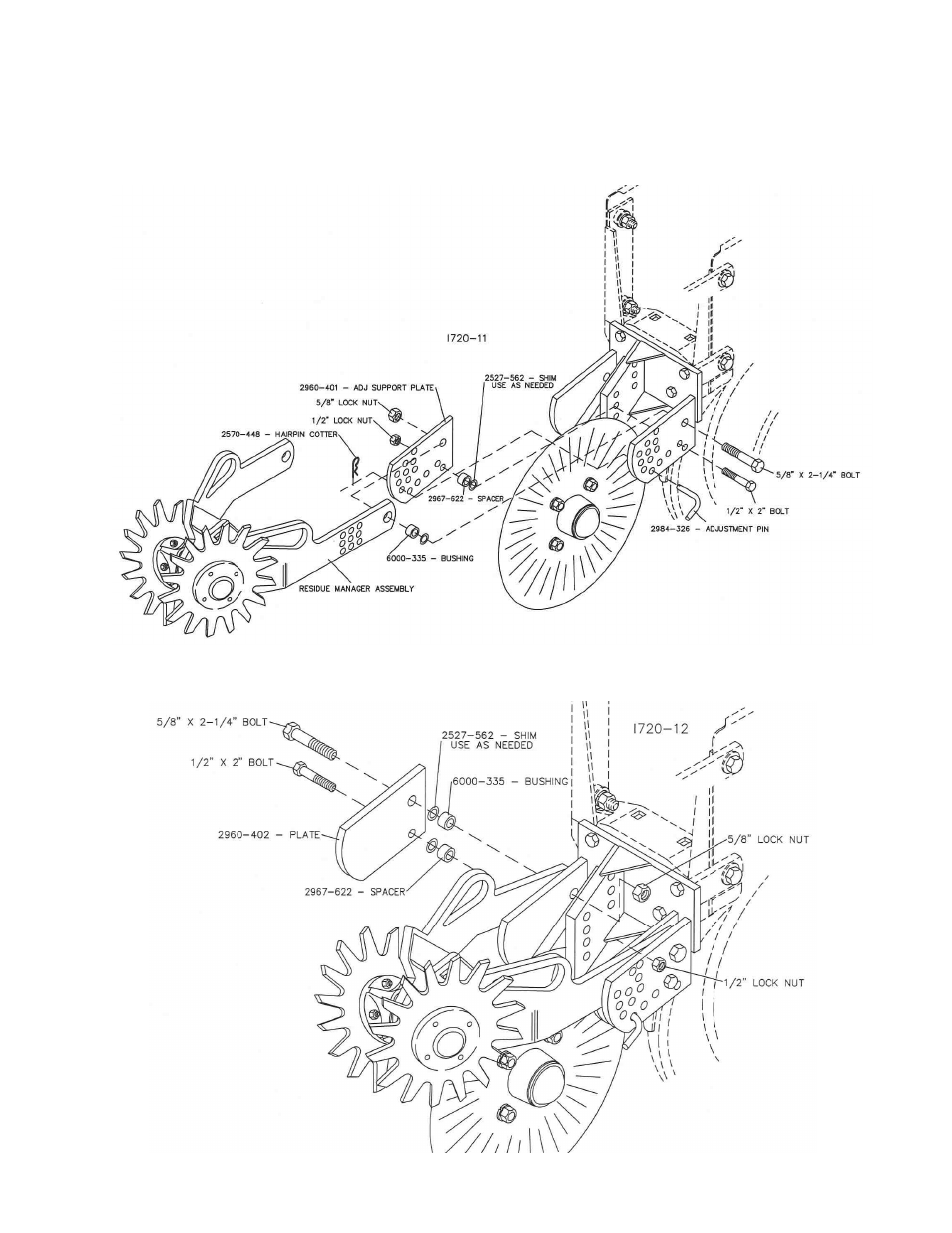

STEP 5. Attach the residue manager assembly to the coulter bracket using the 5/8” x 2-
1/4” bolt, 6000-335 bushing, 2527-562 shim, 2960-401 adjustment support plate, 5/8 lock
nut and the ½” x 2” bolt, 2967-622 spacer, 2527-562 shim and ½” locknut. Install the
2984-326 adjustment pin and 2570-448 hair pin cotter.
STEP 6. Install the 5/8” x 2-1/4” bolt, 2960-402 plate, 6000-335 bushing, 2527-562 shim,
5/8” lock nut and the ½” x 2” bolt, 2967-622 spacer, 2527-562 shim and ½” lock nut.
