8
INSTALLATION INSTRUCTIONS
NOTE: For models with residue managers go to STEP 4.

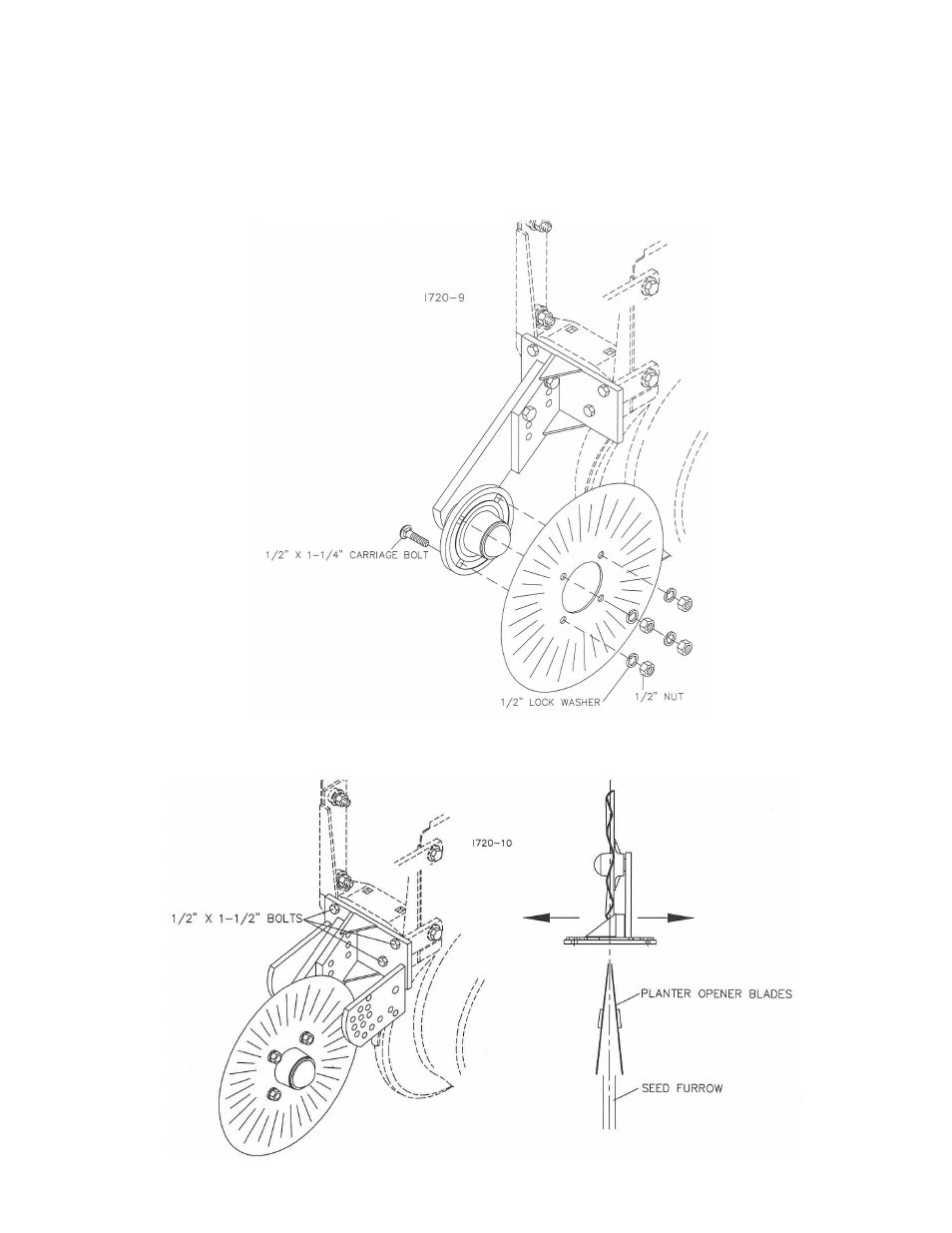

STEP 3. For coulter only models, Attach the blade to the coulter arm assembly using the
4) ½” x 1-1/4” carriage bolts, hex nuts, and lock washers. Fully tighten the carriage bolts.
Torque to 85 ft/lbs.
STEP 4. Align the coulter hub/blade to the planter row unit opener blades. Set the
coulter blades to run perpendicular to the soil. Fully tighten the 3) ½” x 1-1/2” bolts on the
coulter bracket to the planter row unit. Torque to 85 ft./lbs.
