Local module power
In the majority of installations, the local module will derive all of its power
successfully from the USB link with the computer system. However, if insufficient
voltage is available from the computer system, the green indicator
adjacent to the link connector will flash. If this occurs (or if you do
not intend to use the USB connection with the computer) you will
need to purchase and use a power supply identical to the one used
for the remote module (part number: PSU-IEC-5VDC-2.5A) from
your Adder stockist.
PO W ER
OU T
LIN
K
TO
REM
OT E
ON
Link to remote
module
6 [MS2 variant only] Optionally
attach a serial connection lead
to the female connector on the
MS2 local module and attach
the other end to a vacant serial
port on your computer.

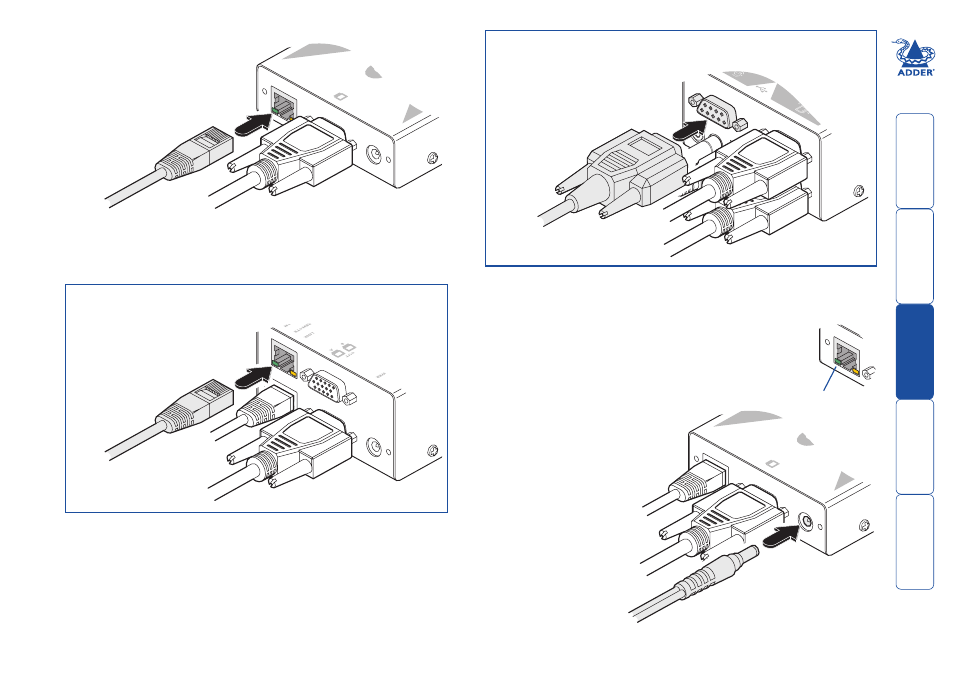

5 Attach the connector of the
category 5, 5e or 6 link cable (up
to 50 metres in length) to the
‘TO REMOTE’ socket on the local
module (labelled ‘LINK 1’ on MS2
variants).
[MS2 variant only] Attach
the connector of a second
category 5, 5e or 6 link cable
(up to 50 metres in length) to
the ‘LINK 2’ socket on the MS2
local module.
Secondary link to
remote module PO W ER
OU
T
LIN K
TO REM
OT E
ON
LIN
K
O REM
OT E
ON
To computer
serial port
To optional
power supply
Low power
indicator 1 If external power input is
necessary, attach the output
connector of the optional power
supply to the ‘POWER’ socket of
the local module.
2 Attach the IEC power lead
to the power supply body
and insert the mains plug
of the lead to a nearby
power outlet.
Note: If a power adapter is
plugged into the module
but not switched on, it
will prevent the unit from
deriving power from the
USB connection.
