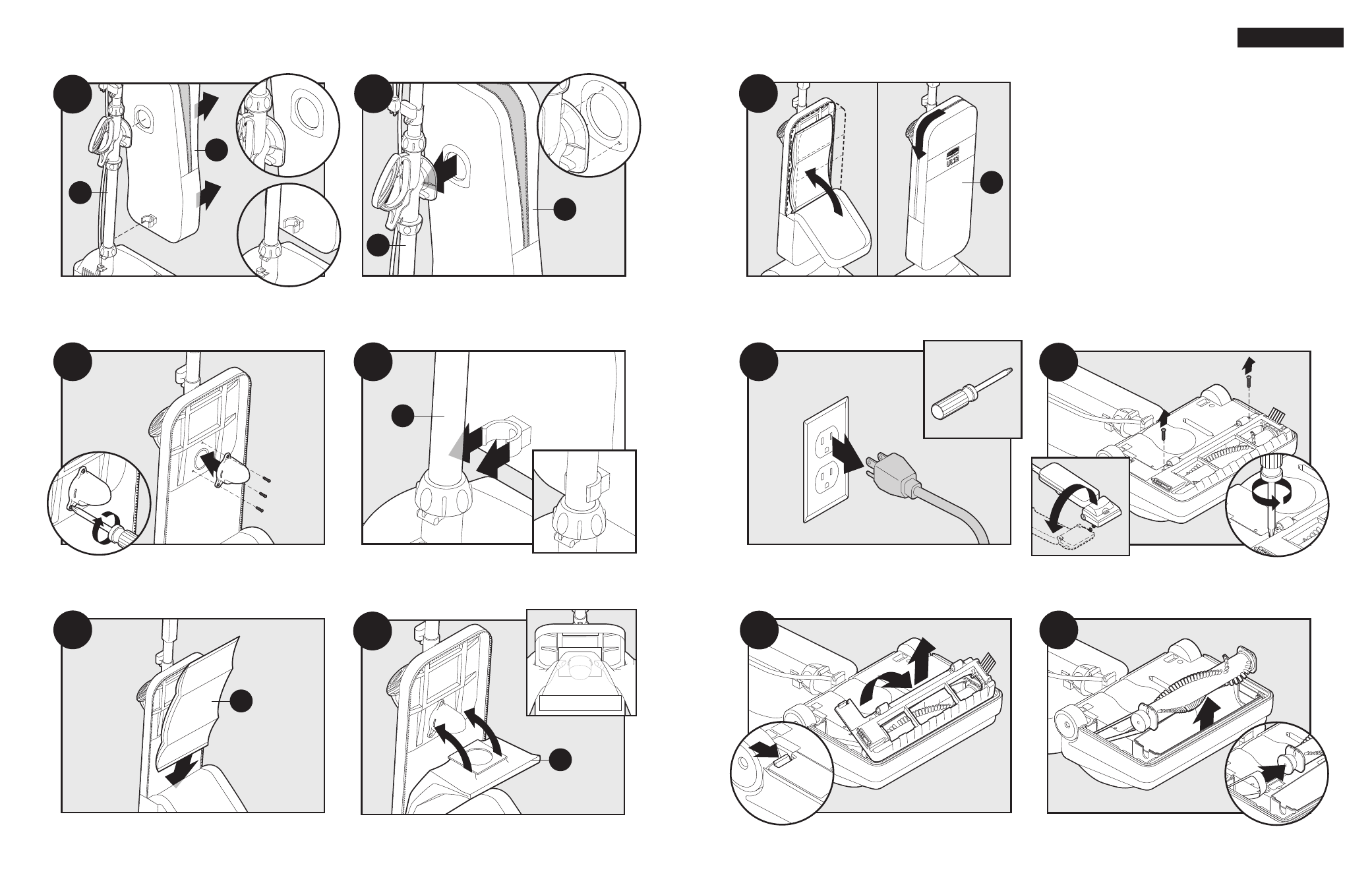

Pull cloth bag off of carry handle and lower handle tube.
Remove old cloth bag from unit.
Using NEW cloth bag, line up tabs and screw holes on cloth
bag plate with corresponding slots and holes on carry handle.
Snap cloth bag clip back onto lower handle tube. Align screw holes on dirt tube with holes on cloth bag plate.
Reinstall screws to secure dirt tube to cloth bag plate.
Insert paper bag into cloth bag, making sure paper bag is
fully extended.
Push paper bag collar onto dirt tube over lock tabs.
Close and zip cloth bag.
Turn vacuum cleaner over. With base lying flat and the
bottom facing up, remove both screws near rollers.
Unplug before servicing.
Press tab below left wheel and lift nozzle guard. Pull nozzle
guard up from base.
Belt and Brush Roll Replacement
ENGLISH
Tool needed 1 2
E
6
O
T
9
T
10
E
11
1
2
Lift brush roll out of nozzle opening. After removal,
slide belt off of pulley.
3
2
1
3
1
2
4
Cloth Bag Replacement
(cont.) Cloth Bag Replacement (cont.)
