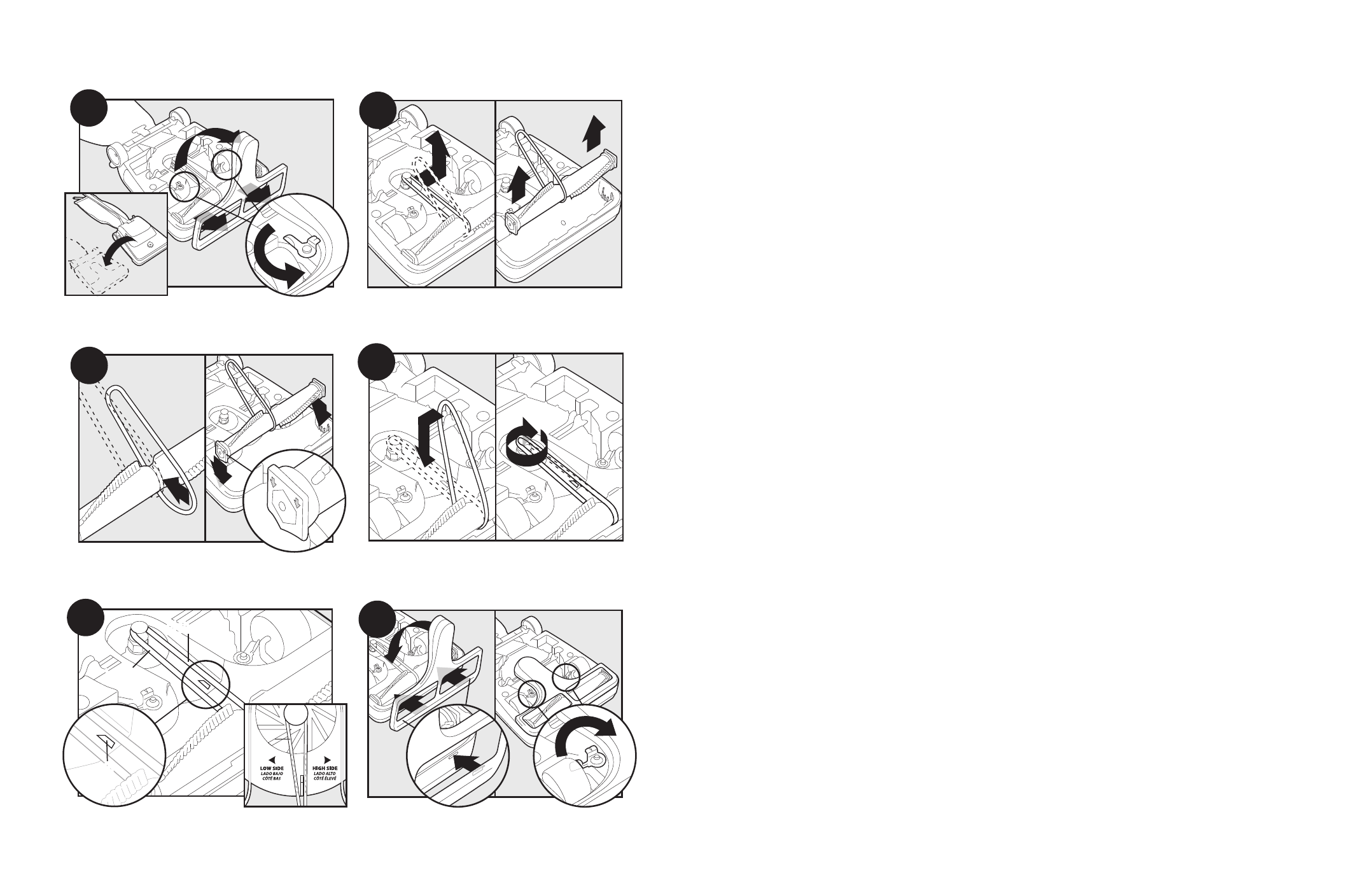

Turn vacuum cleaner over. Turn latches on either side of nozzle
guard to release. Remove nozzle guard.
1
2
2
3
Remove old belt from pulley. Lift brush roll to remove from
nozzle opening.
1
2
2
4
Loop new belt into groove on brush roll. Insert brush roll into
nozzle with arrows on brush roll endcaps facing down.
1
5
2
Slide left side of belt onto pulley. Turn pulley clockwise to
feed belt into position.
Belt and Brush Roll Replacement
(cont.)
Important: Make sure belt does not touch rib on fan shroud.
Low side of belt should be left of rib. (Dotted guidelines are
molded onto the fan cover to show proper belt orientation.)
low side
low side
high side
high side
belt
belt
rib
rib
6
Reinstall nozzle guard from the front, then rotate back. Turn
latches to secure.
1
1
2
3
4
7
