Operation
To position vacuum cleaner, use foot to press handle release pedal.
Press handle release pedal again to lay vacuum cleaner flat.
2
1
2
3
NOTE:
Fully assemble
before operating.
9

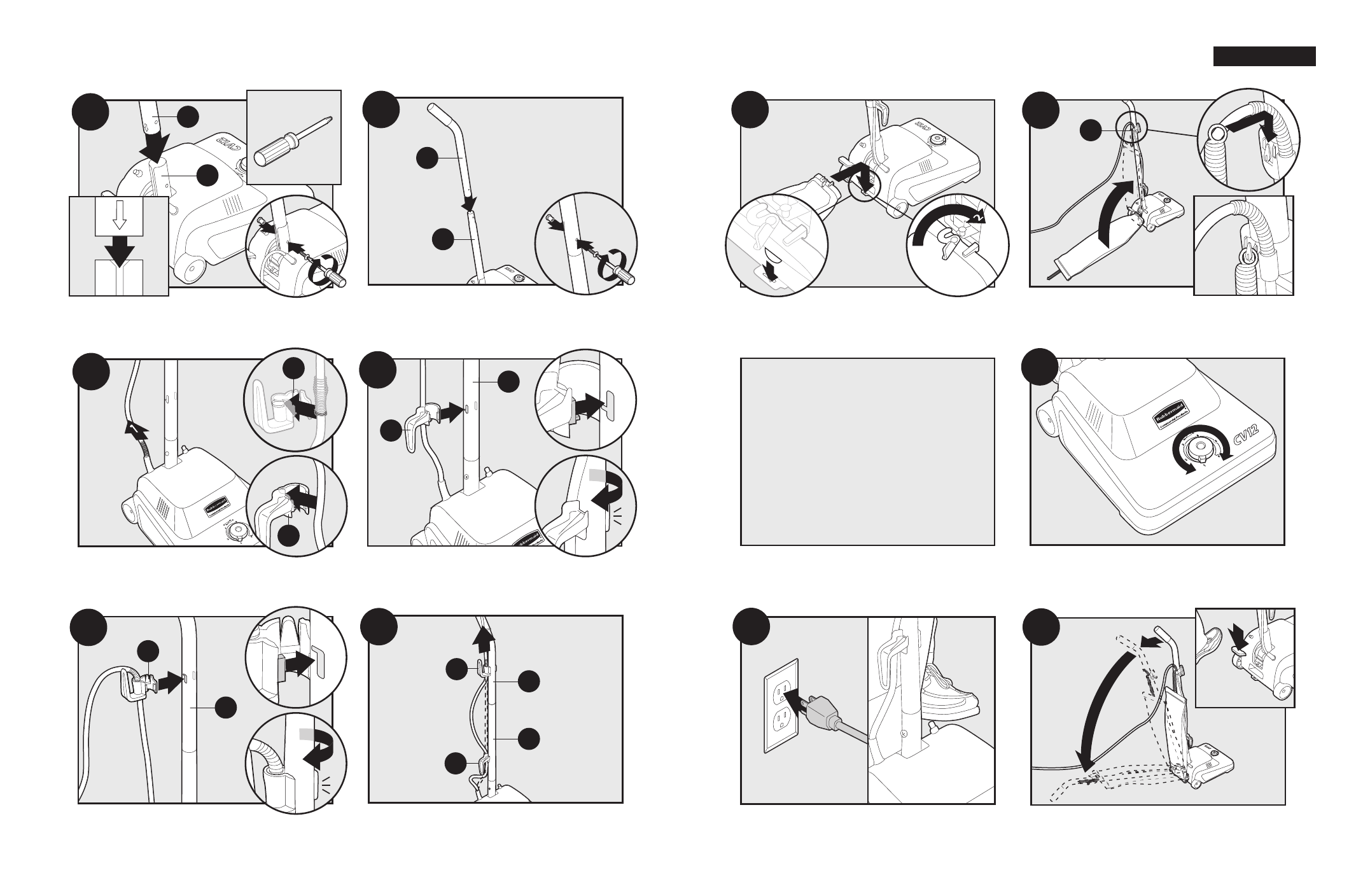

Assembly
1
2
2
3
Tool needed
C
E
1
1
2
2
3
2
C
A
3
2
3
B
D
2
1
C
D
4
Insert lower handle tube into base stem of vacuum cleaner.
Align arrow on lower handle tube with slot on base stem.
Insert and tighten male and female screws.
Slide upper handle tube over lower handle tube. Position
handle with bend facing rear of vacuum cleaner. Insert and
tighten male and female screws.
Insert keyed tab on lower cord wrap into corresponding keyed
hole in lower handle tube. Rotate lower cord wrap onto lower
handle tube; snap into place (allowing some slack).
Slide cord spring up power cord. Fit bottom of spring into
notch in upper cord wrap. Press power cord into notches of
upper and lower cord wraps.
2
1
A
B
5
Insert keyed tab on upper cord wrap into corresponding
keyed hole in upper handle tube. Rotate upper cord wrap
onto upper handle tube; snap into place.
C
A
D
B
6
Pull power cord through upper cord wrap to remove slack
between cord wraps.
8
1
Turn height adjustment knob on base to adjust to desired
brush roll height.
ENGLISH
1
7
Insert tab on bottom of cloth bag into bracket on rear of vacuum
cleaner base. Turn latch to engage post on base of vacuum cleaner.
1
2
8
B
Slide ring at top of cloth bag spring onto triangular hook on
rear of upper cord wrap. Ensure that the ring slides past rib
on hook and snaps over bottom of hook.
Plug power cord into outlet. Use foot to turn power
switch “on”.
