8100 Damper Specifications
SH-_ _ _A
BD-81_ _ _
Part
Shock
Shaft
Metering
Body
Suffix
Size
Length
Rod Length
Length
100
10.0”
5.625
1.750
4.275
105
10.5”
5.875
2.000
4.525
110
11.0”
6.125
2.250
4.775
115
11.5”
6.375
2.500
5.025
120
12.0”
6.625
2.750
5.275
125
12.5”
6.875
3.000
5.525
130
13.0”
7.125
3.250
5.775
135
13.5”
7.375
3.500
6.025
140
14.0”
7.625
3.750
6.275
145
14.5”
7.875
4.000
6.525
150
15.0”
8.125
4.250
6.775
155
15.5”
8.375
4.500
7.025
160
16.0”
8.625
4.750
7.275
175
17.5”
9.375
5.500
8.025
180
18.0”
9.625
5.750
8.275
200
20.0”
10.500
6.625
9.400
220
22.0”
11.500
7.625
10.400
240
24.0”
12.500
8.625
11.400

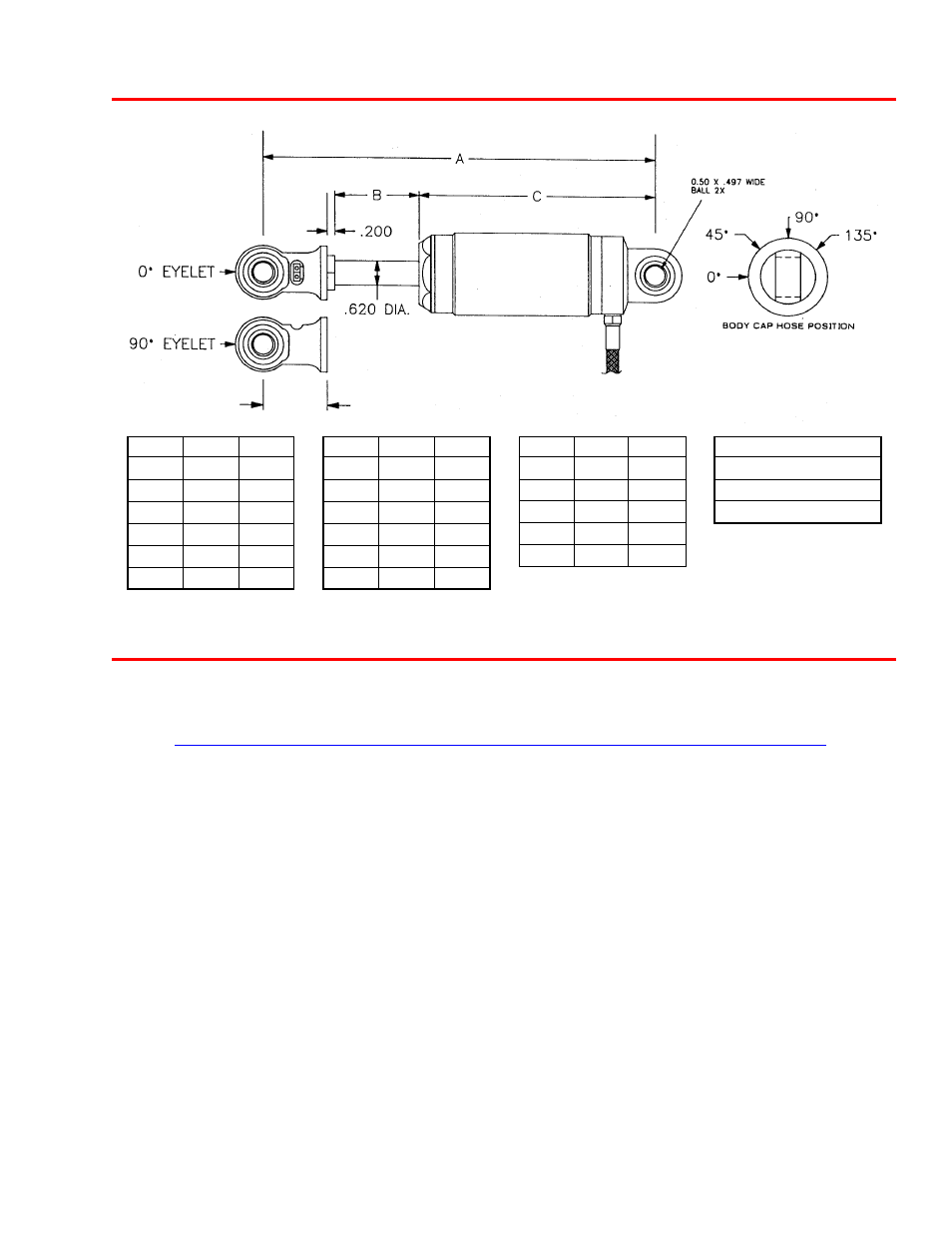

8100 Series Part Lengths
10.0
2.125
6.075
10.5
2.375
6.325
11.0
2.625
6.575
11.5
2.875
6.825
12.0
3.125
7.075
12.5
3.375
7.325
A
B
C
A
B
C
A
B
C
13.0
3.625
7.575
13.5
3.875
7.825
14.0
4.125
8.075
14.5
4.375
8.325
15.0
4.625
8.575
15.5
4.875
8.825
16.0
5.125
9.075
17.5
5.875
9.875
18.0
6.125 10.075
20.0
7.125 11.075
24.0
9.125 13.075
D
D
1.6 (0
o
or 90
o
) (std.)
2.0 (0
o
)
2.3 (0
o
)
