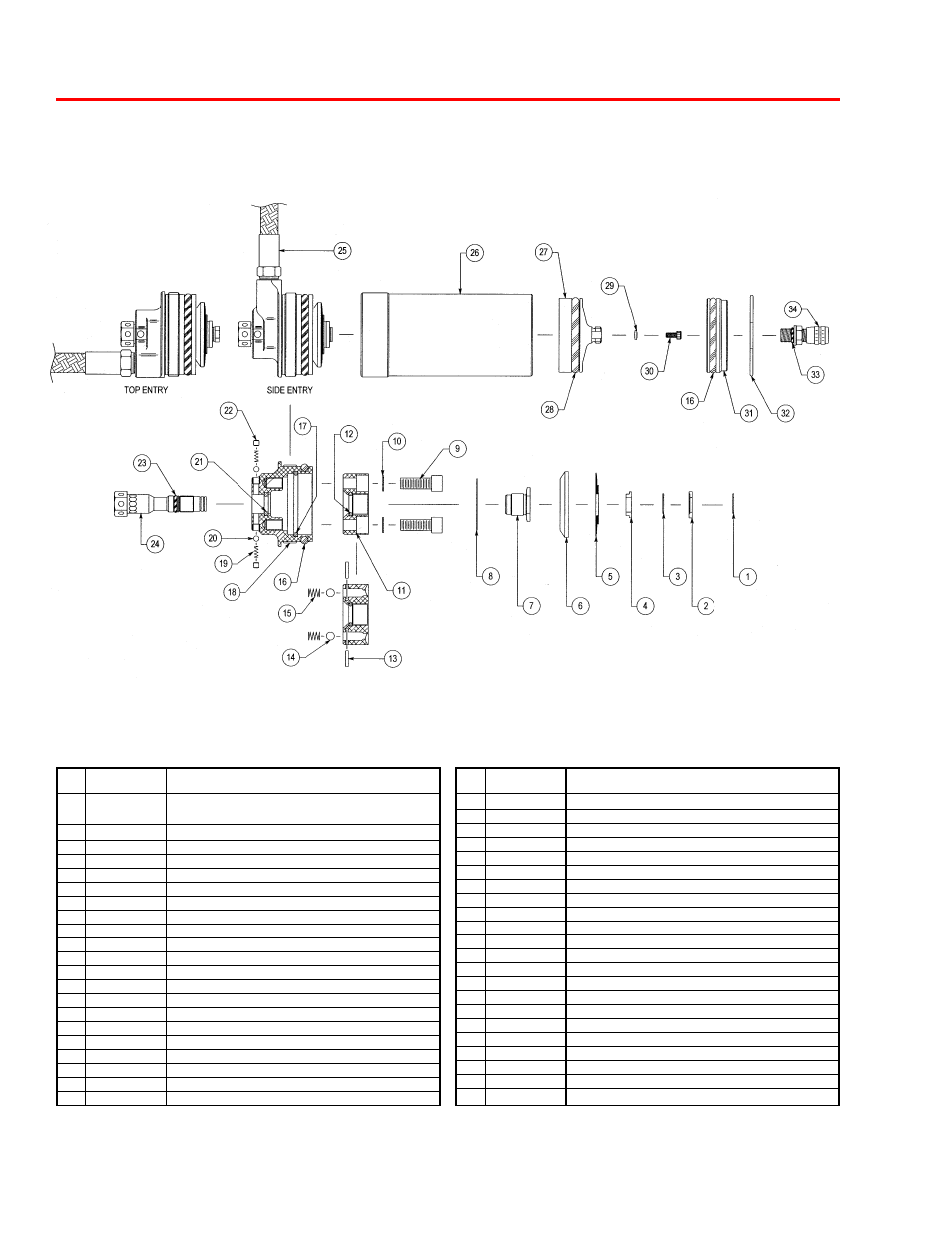

8986 Series Compression Adjuster Parts List
15 SP-16 Spring, (1460)
16 OR-2222-B O-Ring, 2-222, Buna 70
17 OR-2028-B O-Ring, 2-028, Buna 70
18 HG-76____* Housing, 8760, (Side Entry or Top Entry)
19 SP-14 Spring, (A109)
20 BA-125-ST Ball, Steel - 1/8"
21 OR-2013-B O-Ring, 2-013, Buna 70
22 SC-08 Screw, Socket Set, 8/32" x 1/8"
23 OR-2010-B O-Ring, 2-010, Buna 70
24 SH-86CD Shaft, CD High Speed
25 HO-87___* Hose (4" - 36" in 1" increments)
26 RB-76___* Reservoir Body, 8760, (4.00", 5.00" or 6.00")
27 PI-76 Piston, Floating 1.75 Diameter
28 OR-4222-B Quad Ring, 4-222, Buna 70
29 SL-87 Seal, Dowty
30 SC-18 Screw, SHCS, 4 - 40 x 1/4"
31 CP-76 Cap, Reservoir Port O-Ring
32 RR-06 Wire Ring, .0625 Wire Diameter x 1.900
33 OR-2010-B O-Ring, 2-010, Buna 70
34 IU-20-A Air Valve, Port O-Ring, Aluminum
IU-04 Valve Core, 2000 psi
IU-06 Valve Cap, High Temperature
* Incomplete Part Number
PART
NO.
1 RR-12 Retaining Ring, .343 External
2 CA-92 Cage, CD Clasp .343 Diameter
3 RR-12 Retaining Ring, .343 External
4 CA-90 Cage, CD Top Hat .343 Diameter
5 VW-91 Washer, Valve, 1.475 x .010
VW-88 Washer, Valve, 1.350 x .008
VW-66 Washer, Valve, 1.200 x .006
VW-44 Washer, Valve, 1.050 x .004
VW-28 Washer, Valve, .900 x .008
VW-30 Washer, Valve, .900 x .010
VW-38 Washer, Valve, .900 x .020
6 CA-76CD Cage, Compression Adjuster
7 SC-76INS Screw, Piston Insert
8 VW-70 Washer, Valve, 1.200 x .010
9 SC-06 Screw, SHCS, 1/4" -20 x 3/4"
10 VW-01-C Crush Washer, .25 ID, Copper
11 PI-76CD Piston, Compression Adjuster
12 OR-2013-B O-Ring, 2-013, Buna 70
13 DO-06 Dowel Pin, 1/16" x 3/8"
14 BA-187-ST Ball, Steel - 3/16"
ITEM
NO.
DESCRIPTION
PART
NO.
8986 Series Adjuster Option
Available in 4", 5", and 6" Body Lengths
ITEM
NO.
DESCRIPTION
