S5406 © 03/13 PAGE 4 OF 4
6. Slide a 3” Clamp over the outlet side of the Muffler. Position the Over Axle
Pipe over the axle and loosely attach it to the Muffler. Install the Over Axle
Pipe hanger into the factory rubber insulator. Refer to Figure 9.
7. Slide a 3” Clamp over the Tail Pipe and install onto the Over Axle Pipe.
Refer to Figure 10.
8. Slide the Tail Pipe hanger into the rearmost rubber insulator and reattach to
the frame. Refer to Figure 10.
9. Install and adjust the Exhaust Tip to suit. Using an 8mm Allen wrench,
tighten the lock bolt located on the Exhaust Tip. Refer to Figure 11.
10. Check along the whole length of the exhaust system to ensure that there is
adequate clearance around the spare tire, fuel and brake lines or any wiring. If
any interference is detected relocate or adjust.
Congratulations! You are ready to begin experiencing the improved power, sound and driving excitement of your MBRP
Inc. performance exhaust system. We know you will enjoy your purchase.

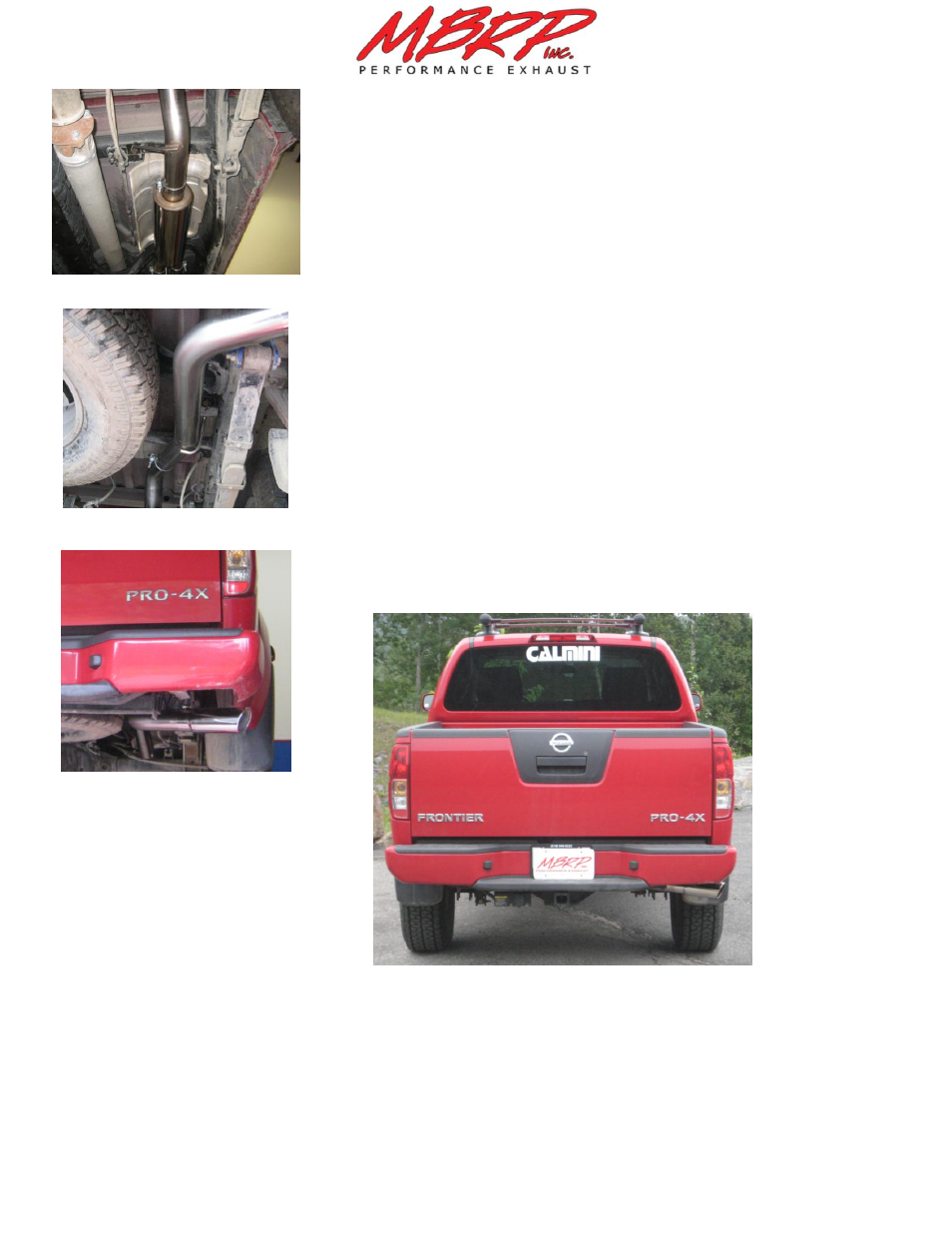

Figure 9
Figure 10
Figure 11
