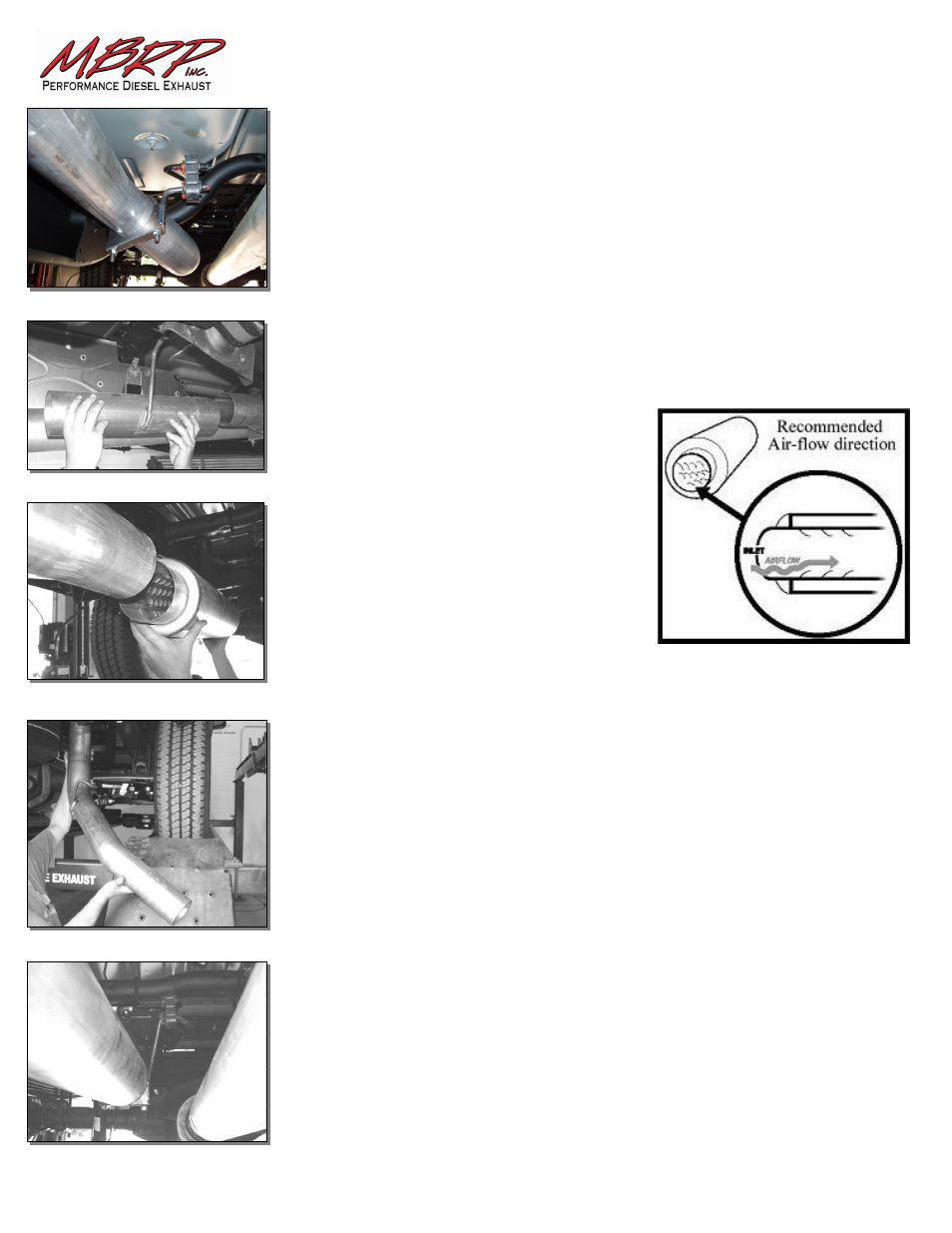

3. Position Extension Pipe as shown and loosely install the Hanger
Clamp with the shortest hanger. Refer to Figure 4. This will support the
Extension Pipe during the Muffler installation.
Figure 4
4. Crew cab & extended cab long bed trucks require the use of the 18"
Extension Pipe provided. This is to be positioned between the Muffler
and the Extension Pipe. Refer to Figure 5. The 18” Extension Pipe is
not required with short box trucks.
Figure 5
5. Install the Muffler onto the Extension
Pipe. Refer to Figure 6.
Refer to Figure 7 for the proper direction
of air flow through the Muffler.
Figure 7
Figure 6
6. Install the Tail Pipe from the rear of the truck, over the axle and attach
to the Muffler Outlet. Install the tail pipe hanger into the OEM hanger,
adjust for best axle clearance and Tail Pipe exit location to complete.
Refer to Figure 8.
Figure 8
7. Install the Hanger clamp with the longest hanger at the connection
between the Muffler and the Tail Pipe and into the OEM rubber hanger at
this position. Refer to Figure 9.
Figure 9
