Installation of MBRP Inc. Performance Exhaust:
1. Install the Down Pipe in the same position as the stock down pipe attaching
the flared end to the turbo using the stock band clamp. Do not fully tighten
until all components are in place. The 3 ½” Band Clamp is used to attach the
Down Pipe to the existing mount. Refer to Figure 5.
2. Install the Front Pipe onto the Down Pipe using the 3 ½” Clamp.
Refer to Figure 6.
3. The Extension Pipe is then connected to the Front Pipe using a 4”
Clamp. The Extension Pipe may require trimming depending on the
vehicle’s wheelbase. Refer to Figure 7.
Installation Tip: Temporarily install the Muffler and Tail Pipe using the
factory rubber insulators and the 4” Hanger Clamps. Measure from the
Muffler to the Extension Pipe to determine the length required (leave 3”
overlap to slide into the muffler). Cut the Extension Pipe to the required
length.
4. Install the Muffler over the required Extension Pipe so that the exhaust
will flow smoothly over the louvers. Attach the Muffler using the 4” Hanger
Clamps. Install the 4” Hanger Clamps into the existing rubber isolators.
Refer to Figure 7.
5. Install the Over Axle Pipe into the Muffler. Refer to Figure 8.

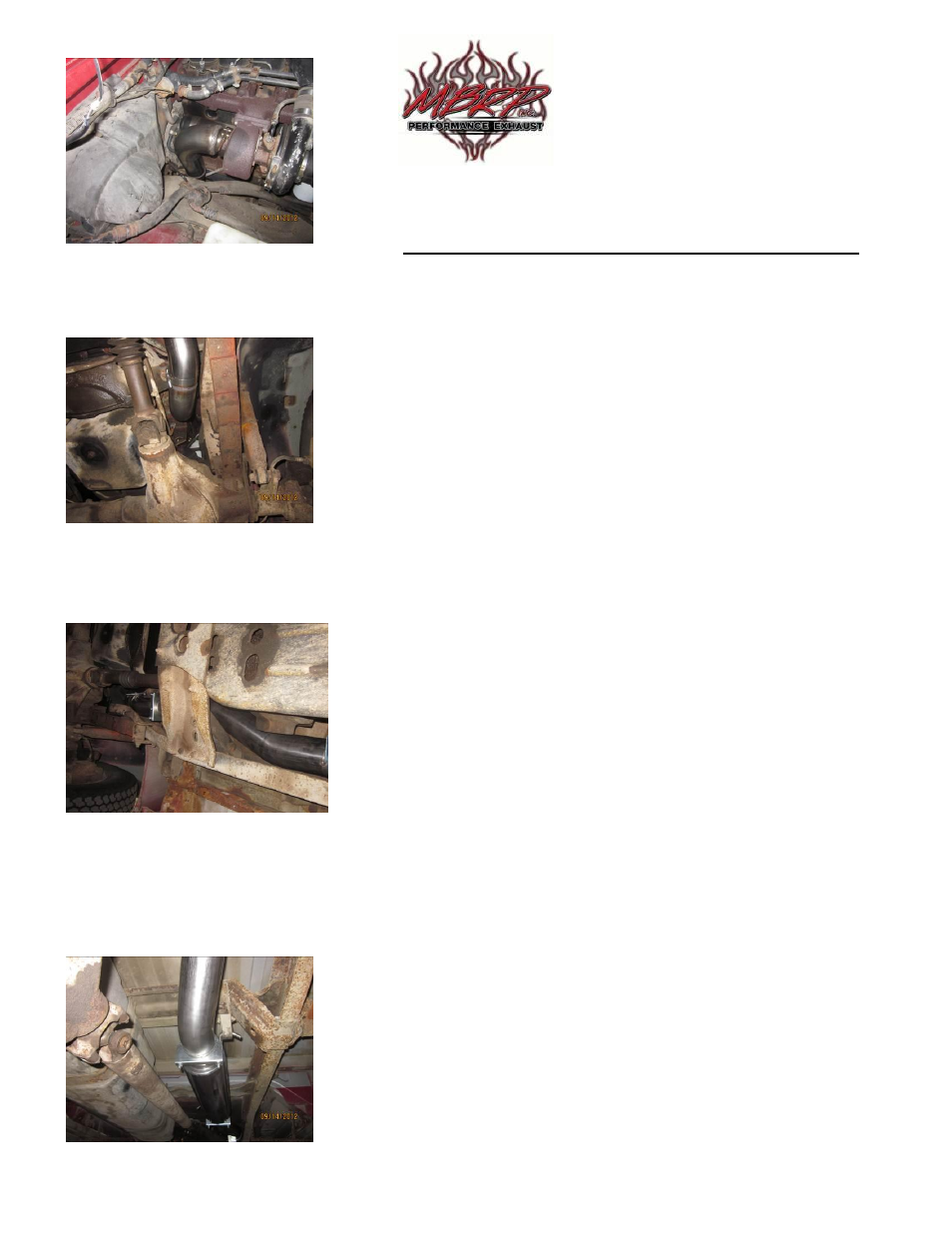

Figure 5
Figure 6
Figure 7
Figure 8
