MBRP S6150 - Manual (Page 2)

S6150 © 11/12 PAGE 2 OF 4
Removal of Stock System:
1. Apply a penetrating lubricant liberally to all exhaust fasteners, hangers and
rubber insulators.
2. Remove the exhaust system from the rubber insulators and remove all of
the clamps from the system. See Figures 1, 2 & 4.
3. Separate the slip joint behind the muffler and remove the tail pipe. Finally
loosen the band clamp connecting the down pipe to the turbo and remove the
down pipe. Do not discard the band clamp as it is required for the
installation. See Figure 1.
4. The hanger and bracket can be removed and returned to the customer.
Refer to Figure 4.

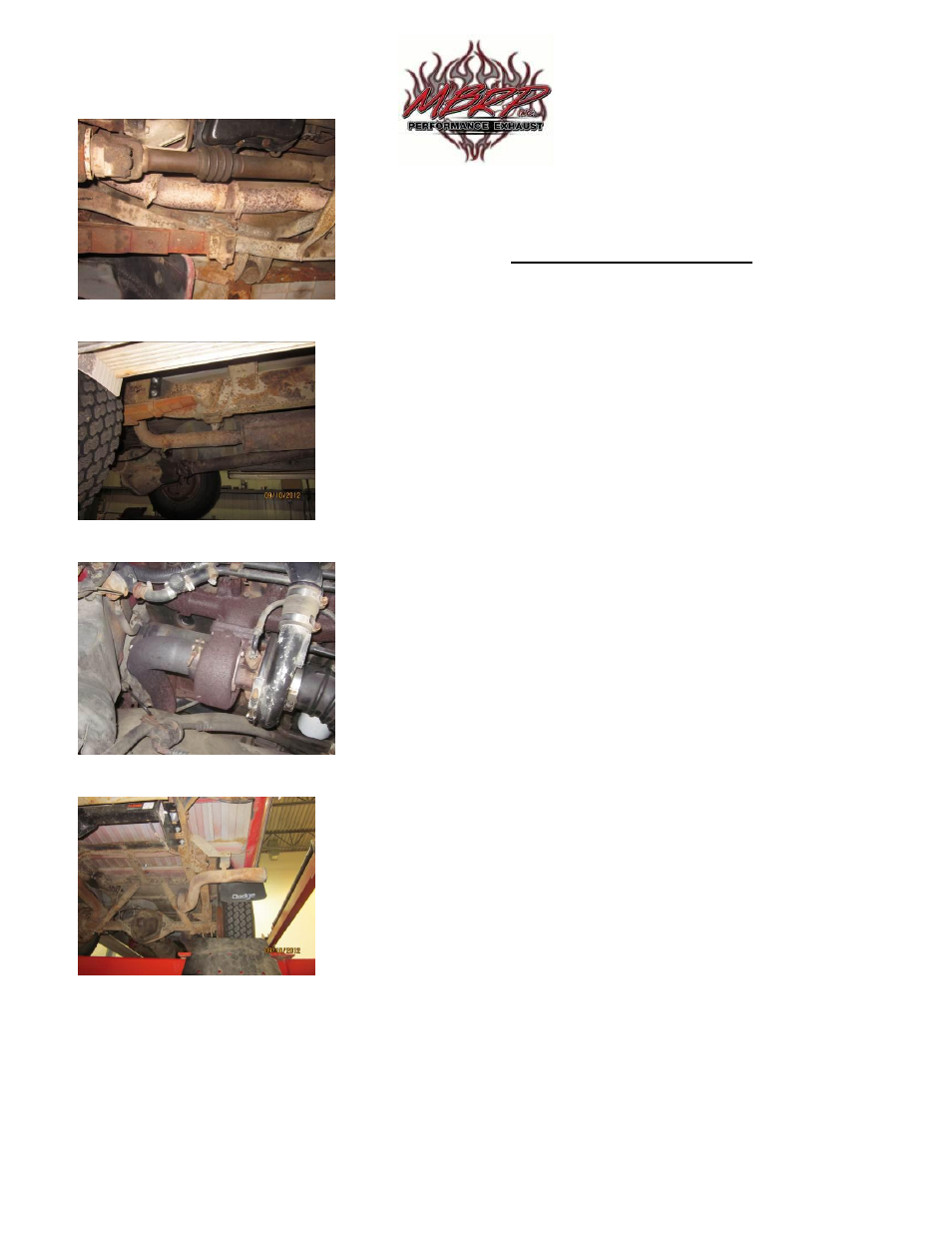

Figure 1
Figure 2
Figure 3
Figure 4
