4.
Crew Cab & Extended Cab long box trucks require the use of the
18” Extension Pipe provided. This is to be positioned between
the Muffler and the Extension Pipe. See Figure 5. The 18”
Extension Pipe is not required with short box trucks.
5.
Install the Muffler onto the Extension Pipe. The Muffler outlets
will be positioned vertically when installed. See Figure 6.
6.
Install the Over Axle Pipe onto the top outlet of the Muffler and
install the hanger into the OEM rubber hanger located above the
Muffler. Adjust for maximum axle clearance. See Figure 7.
7.
Install the Driver’s Side Tailpipe by feeding it around the outside
of the shock absorber and connecting it to the Over Axle Pipe.
Adjust for maximum clearance around shock absorber. See
Figure 8.
8.
Using the factory hole located in the frame, found directly above
the Driver’s Side Tailpipe hanger, attach the Hanger Assembly
provided using the supplied hardware. See Figure 9. Hang the
Driver’s Side Tailpipe from the installed Hanger Assembly.

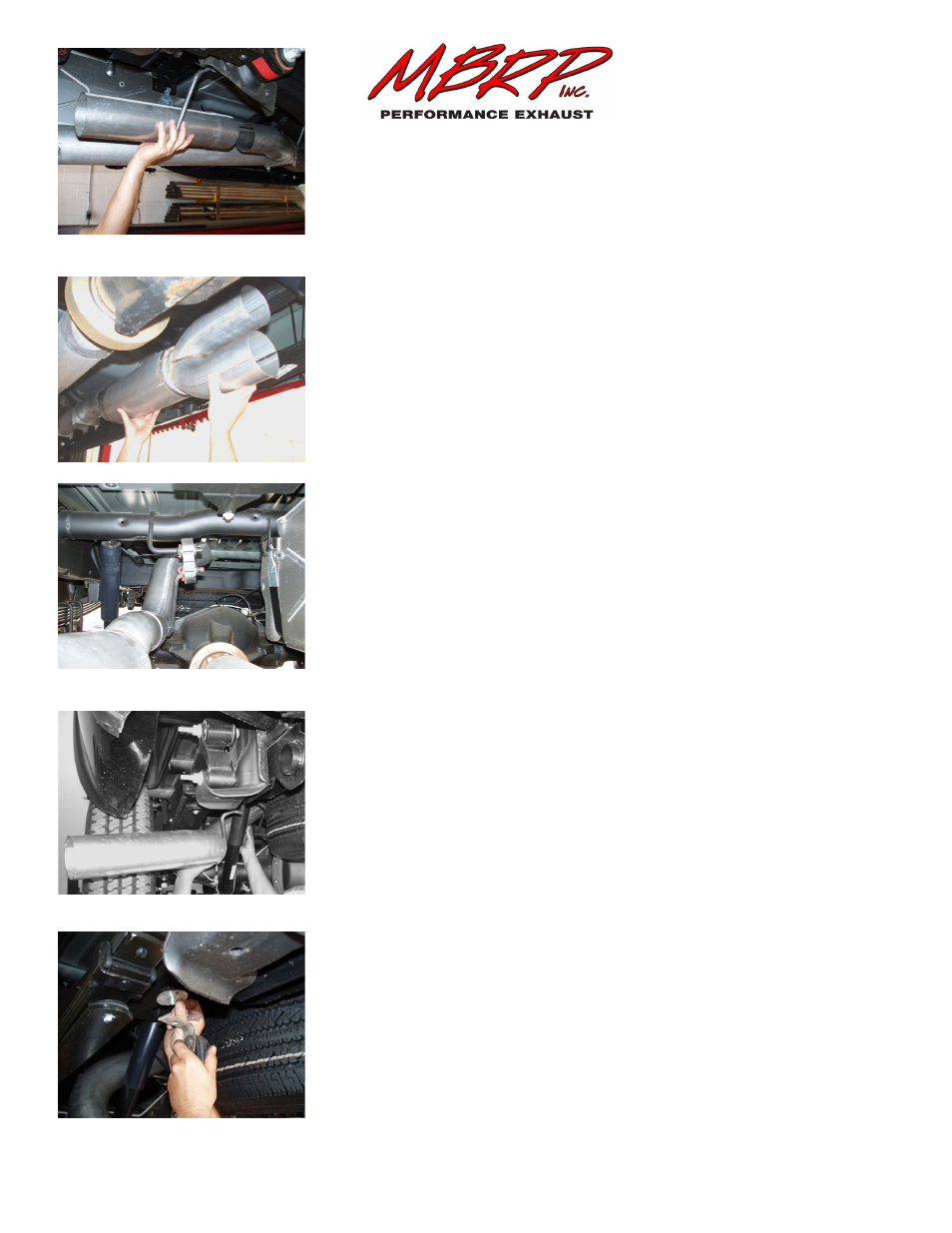

Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
