MBRP S6002 User Manual
Page 2
S6002 © 06/09
PAGE 2 OF 4
Removal of Stock System:
1.
Apply penetrating lubricant liberally to all exhaust fasteners,
hangers and rubber insulators.
2.
Using a 15mm socket or wrench, disconnect the factory exhaust
system at the four bolt flange located behind the catalytic
converter. If the vehicle is not equipped with a catalytic converter
disconnect the four bolt flange located approximately under the
passenger side seat. See Figure 1. Do not discard the four
bolt flange nuts as they are required for the installation.
3.
Remove the exhaust system from the rubber insulators and
remove from under the vehicle. If a hoist is not available for use
it may be necessary to cut the tail pipe behind the muffler for
removal of the system.
Installation of MBRP Inc. Performance Exhaust:
1.
Place the Gasket provided over the studs located on the factory
four bolt flange. Attach the 4 Bolt Flange to the four bolt flange
using the hardware previously removed. See Figure 2.
2.
Install the Extension Pipe into the 4 Bolt Flange placing the
bend around and under the cross member. See Figure 3. The
Extension Pipe does not require cutting to fit Crew Cab trucks.
For Extended Cab trucks, approximately 9 ½” needs to be cut off
the end with the shortest straight section of pipe. (Installation
tip: Temporarily hang the Muffler and the Passenger Side Tail
Pipe in place and measure to the four bolt flange to verify length
required).
3.
Position Extension Pipe as shown and loosely install the
Hanger Clamp with the shortest hanger. See Figure 4. This will
support the Extension Pipe during the Muffler installation.

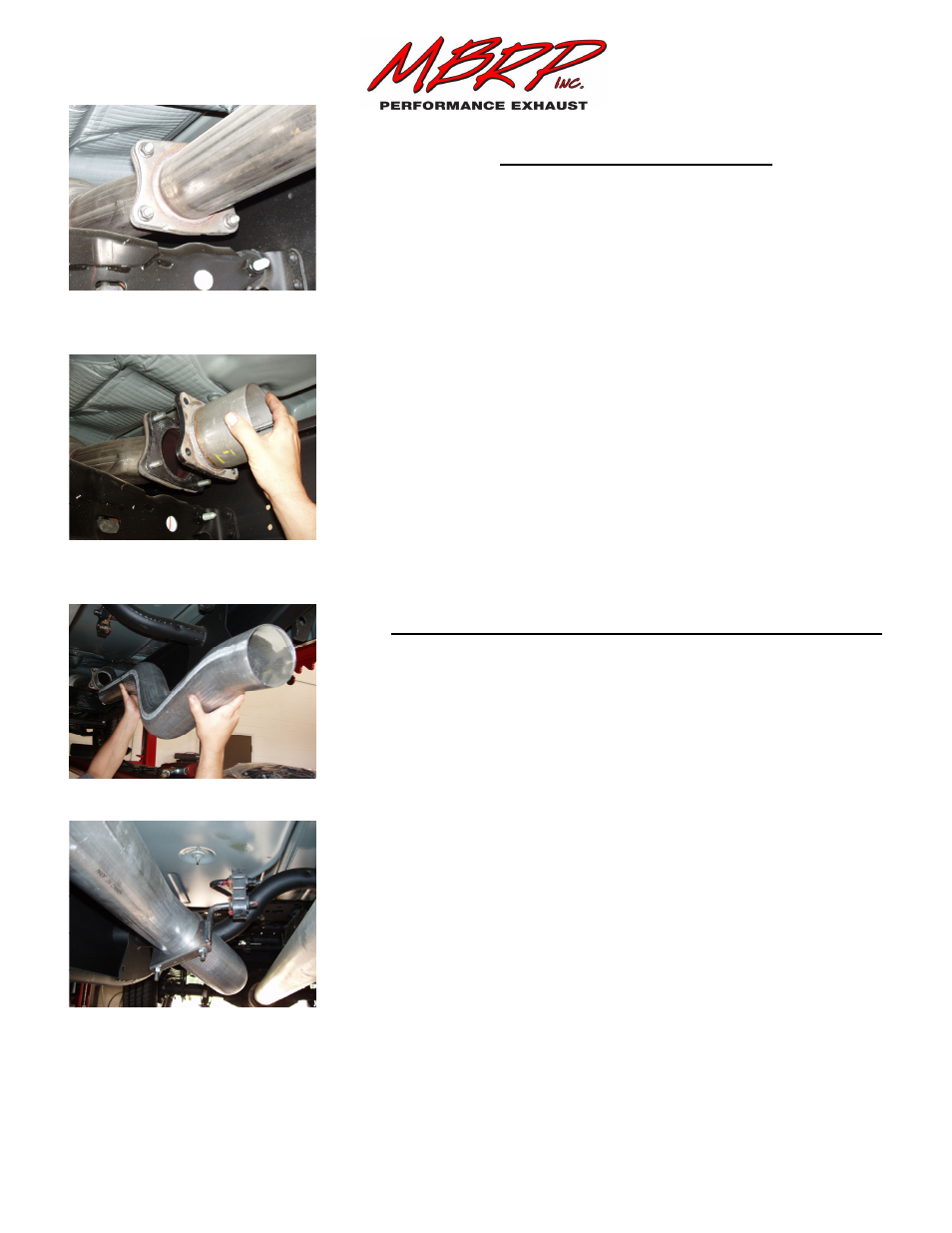

Figure 1
Figure 2
Figure 3
Figure 4
