IDENTIFICATION OF HOUSING PARTS

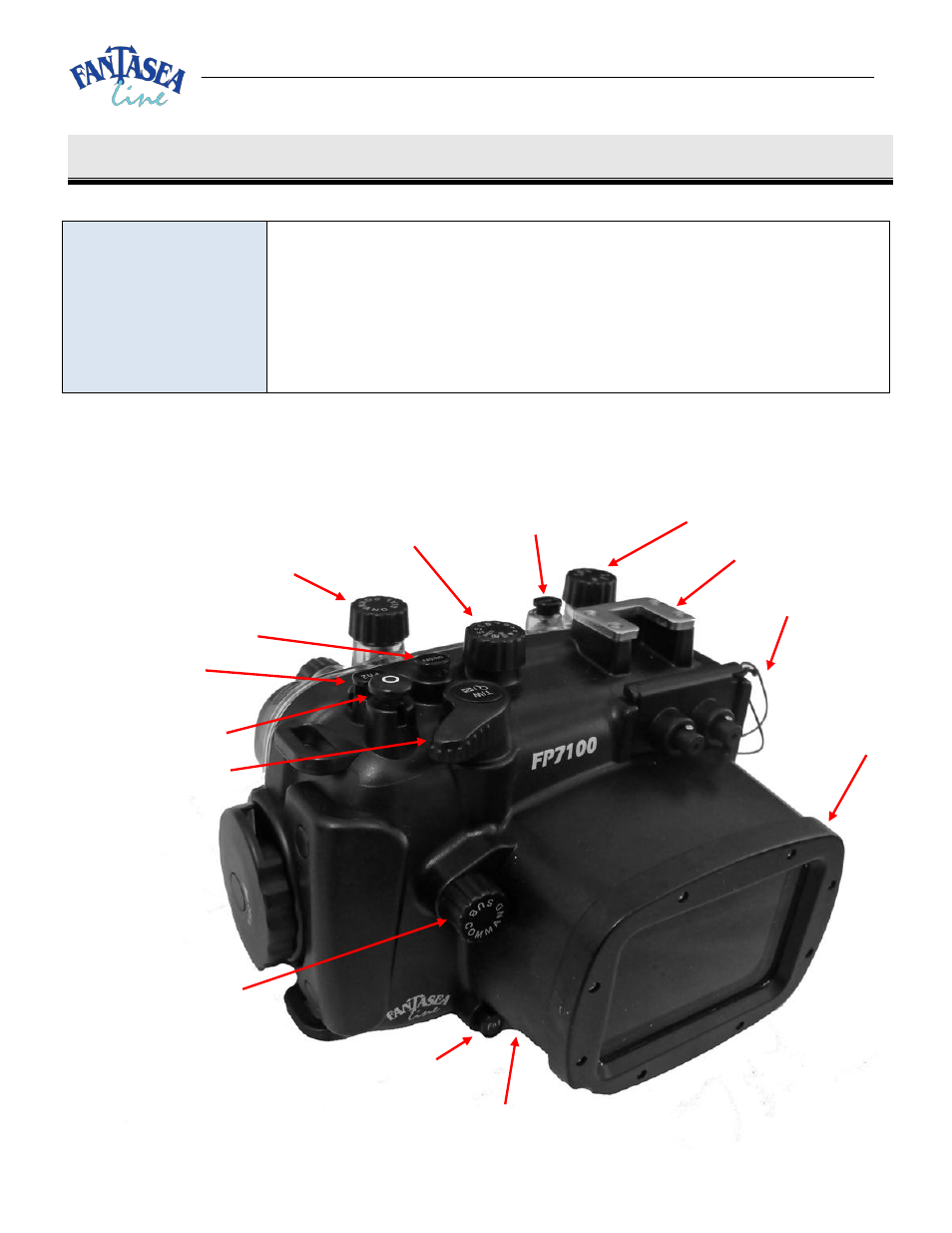

Top/Front Side of Housing
Corresponding numbered descriptions are found on the following page
Note
1. Please refer to the Nikon Coolpix P7100 camera instruction manual for
detailed descriptions and instructions regarding all camera controls and
functions.
2. It is strongly recommended that you familiarize yourself with all the
controls topside before using these controls underwater.
2. Shutter Release
1. Zoom Control
3. Function2
4. On/Off
5. Command Dial
3. Mode Dial
7. Quick Menu
8. Quick Menu Dial
9. Cold-Shoe Mount
10. Fiber Optic Cable Plate
11. Lens Port
12. Tripod Mounting Screw Hole
(bottom)
13. Function1
14. Sub-Command Dial
