Eddie Motorsports MS107-60 User Manual
Page 6
6

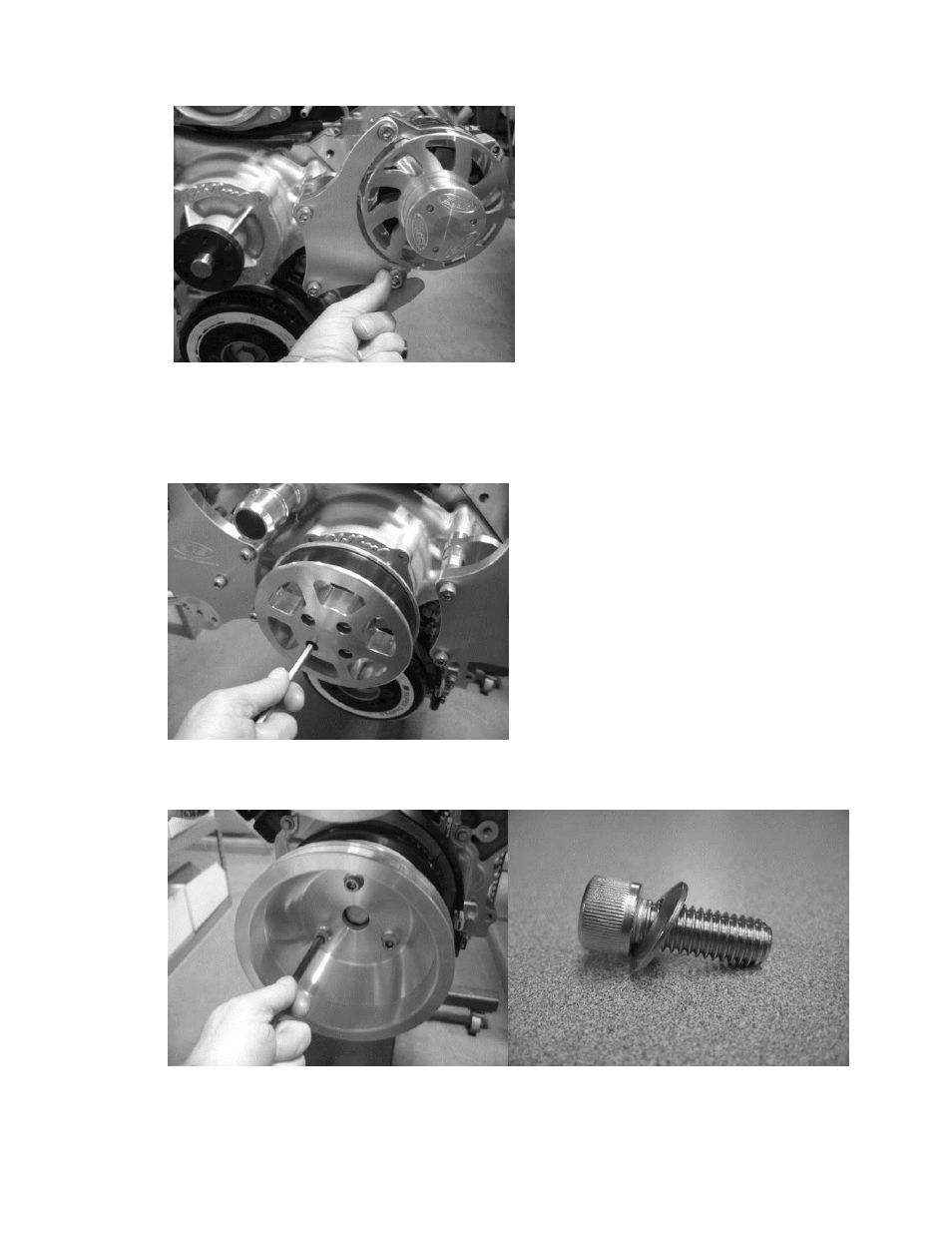

Install Alternator:
1. Install alternator using one M8 x 25mm cap screw and one M10 x 80mm cap screw with
washers and anti seize.
Note: Tighten three M8 and one M10 cap screws at this time.
Install Water Pump Pulley:
1.
Install water pump pulley using four 5/16-24 x ¾ cap screws with red thread locker.
Install Crank Pulley:
1. Install crank pulley using three 3/8-16 x 1 ¼ cap screws and Belleville washers as shown.
