Eddie Motorsports MS107-60 User Manual

Page 4

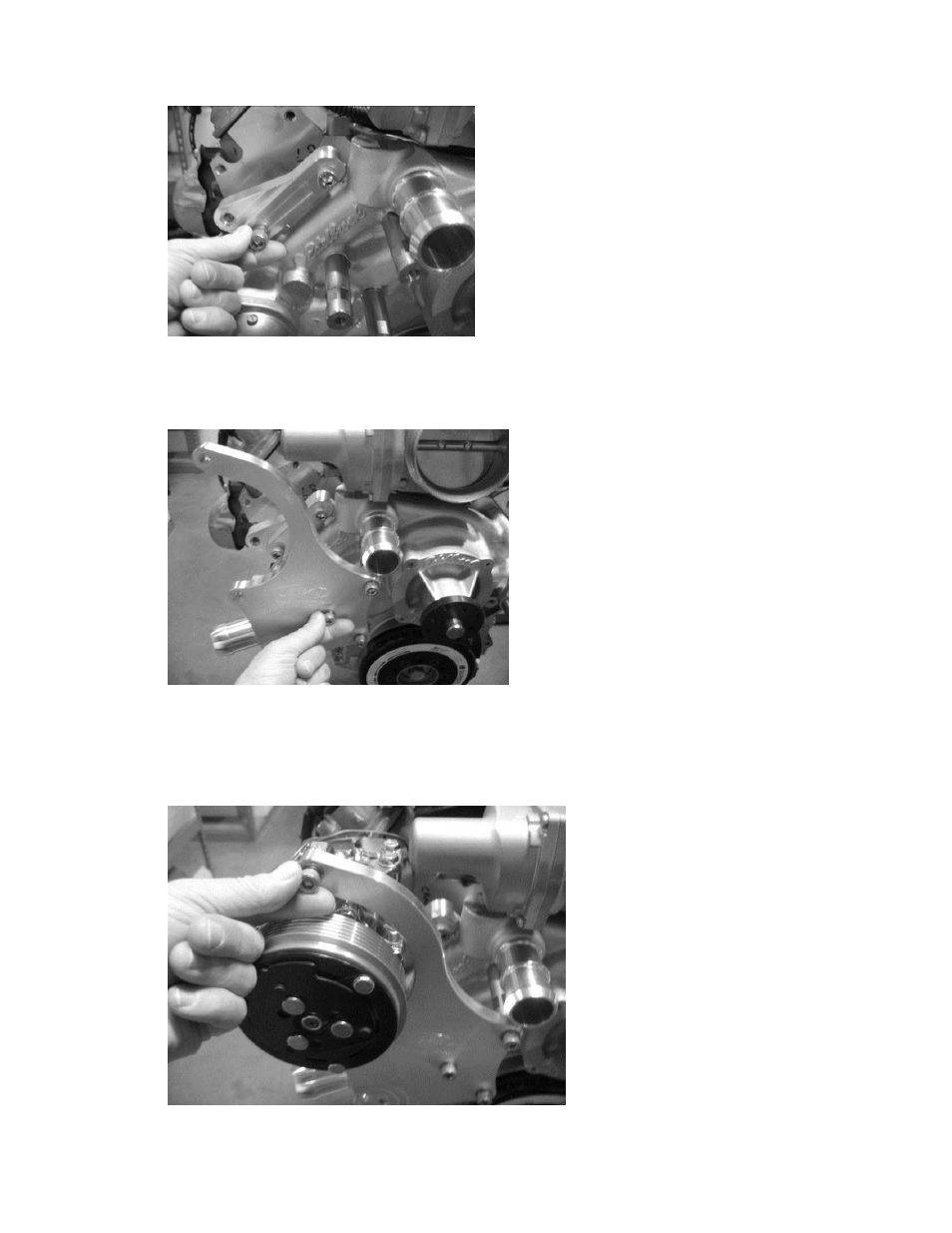

Install Rear Compressor Bracket:

1. Attach rear compressor bracket to water pump using two M10 cap screws x 20mm with anti

seize.

Install Compressor Bracket:

1. Install compressor bracket to passenger side spacer posts with three M8 x 25mm cap screws and

washers with anti seize. Finger tighten.

Note: Make sure waterneck and thermostat are installed on water pump first.

Install A/C Compressor:

1. Install A/C compressor using two M8 x 25mm cap screws and anti sieze. Finger tighten.
