1 DeltaChip requires the use of

Premium Gasoline!

10mm socket
5.5mm socket
7mm socket
1/4” drill bit
Supplied cleaning pads

Tools you need

Precautionary notes:

STEP 1

2

WARNING: with the ignition off

and keys in your pocket, disconnect

the ECU from the vehicle’s wiring

harness using a 10mm socket.

Failure to do so could result in serious

damage to the ECU.

3

Caution: Never remove or insert

chip with the ECU connected to the

wiring harness!

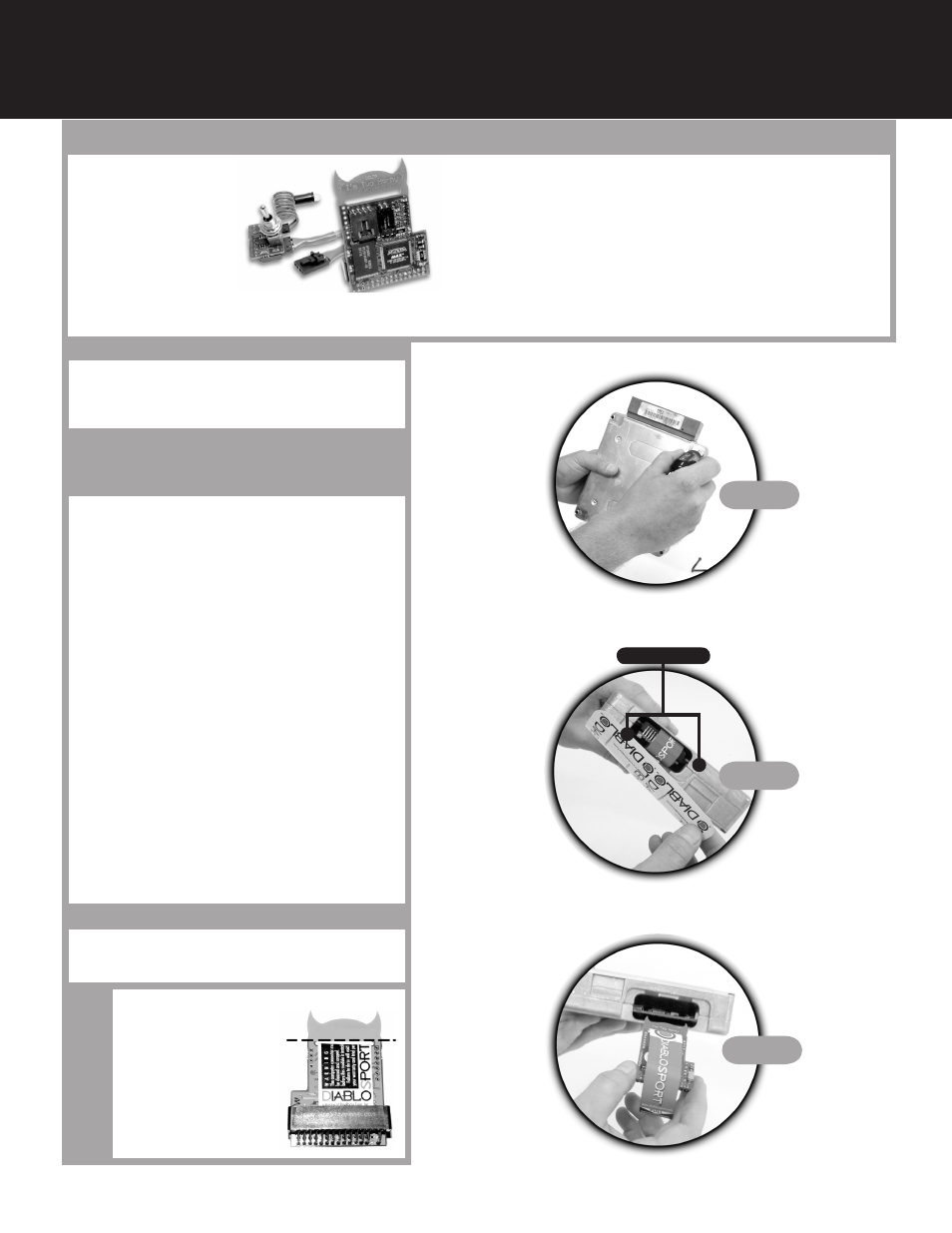

DeltaChip Installation Instructions

After removing the ECU from the vehicle, remove the 6 screws
holding the cover in place using a 5.5mm socket (most cases).
Remove the top and bottom cover, exposing the circuit board.

STEP 1

MOST IMPORTANT STEP, PLEASE FOLLOW
DIRECTIONS CAREFULLY!

EEC-V

With both sides of the J-3 port connector surface

exposed, carefully scrub the film off the connectors using

the supplied scotchbrite pad. Visually inspect the surface

for any residue on the contacts, one good tip is to look at

the connector with a light shining on it, any spot that does

not reflect the light has residue on it. Wipe the connectors

with the alcohol pad to remove any dirt after using the

scotchbrite pad.

EEC-IV

With both sides of the J-3 port connector surface

exposed use a clean rag to remove the excess of the

grease covering the connectors. Carefully scrub the con-

nectors using the supplied scotchbrite pad. Visually inspect

the surface for any residue on the contacts, one good tip is

to look at the connector with a light shining on it, any spot

that does not reflect the light has residue on it. Wipe the

connectors with the alcohol pad to remove any dirt after

using the scotchbrite pad. Once visually inspected, reassem-

ble the ECU

.

DO NOT USE EXCESSIVE FORCE WHEN

SCRUBBING THE CONNECTION! THIS WILL MAKE

THE CONNECTION TOO THIN, THUS CAUSING

THE CHIP MODULE TO HAVE POOR CONNECTION.

With ECU assembled, insert the chip onto the

connector and make sure the fit is tight.

STEP 2

STEP 3

STEP 2

J-3 port connector

STEP 3

Some ECU’s require modification of the

chip in order to clear some components

inside the ECU. Using a good

side-cutter, cut the section above the

oblong hole, make sure to make the cut

above the end of the circuit board.

See picture for exact location to cut.

The same board requires you to bend a

component to the side for clearance,

please be very gentle when doing so.

ONL

Y IF NECESSAR

Y
