Ashland Buchli Scraper B-300 - Manual (Page 12)

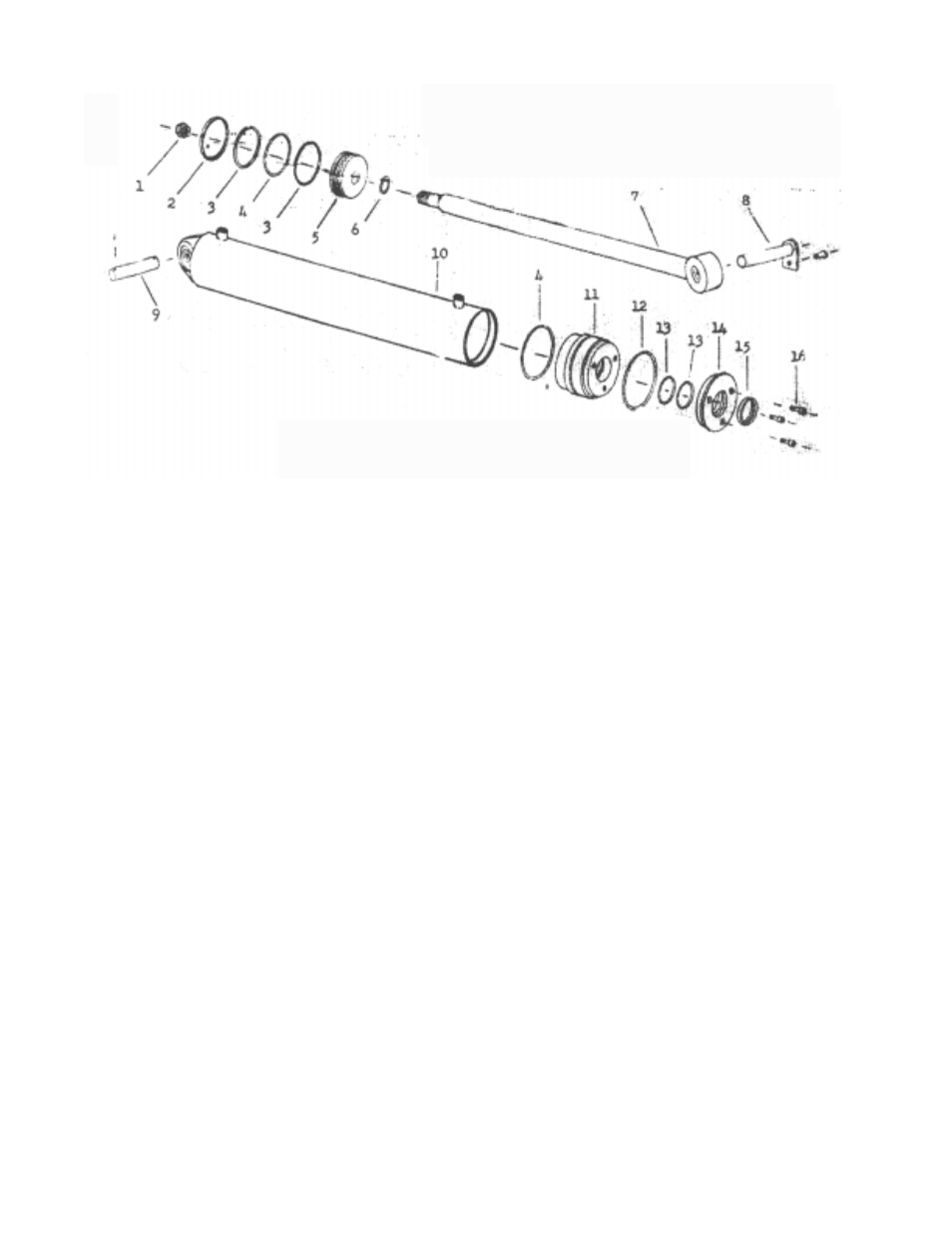

HYDRAULIC CYLINDER
4” x 16”
Model 416 DAW
PAGE 12
PARTS LIST
Key No. Part No. Description
1 4DAW-T Piston nut
2 4DAW-PC Cast iron piston ring
3 4DAW-PB Piston backup washer
4 4DAW-P Piston & static O-ring seal
5 4DAW-H Piston
6 4DAW-S Piston gasket
7 4DAW-F Shaft
8 3006A Pin, 1 x 6"
Capscrew, 1/2" x 1-1/4" NC
Shakeproof washer, 1/2"
9 3310 Pin, 1" x 4"
Cotter pin, 3/16" x 1-1/2"
10 4DAW-GJ Barrell assembly
11 4DAW-E Head
12 4DAW-W1 Retainer Ring
13 4DAW-0 Shaft O-ring seal
14 4DAW-W Head cap
15 4DAW-N Wiper seal
16 4DAW-X Socket head cap screw
4DAW-PK Packing kit containing: 1 4DAW-PC
2 4DAW-PB
2 4DAW-P
1 4DAW-S
1 4DAW-W1
2 4DAW-0
1 4DAW-N
