PAGE 11
HYDRAULIC CYLINDER
3” x 16” (High Pressure)
Model FEQS-13B - Optional

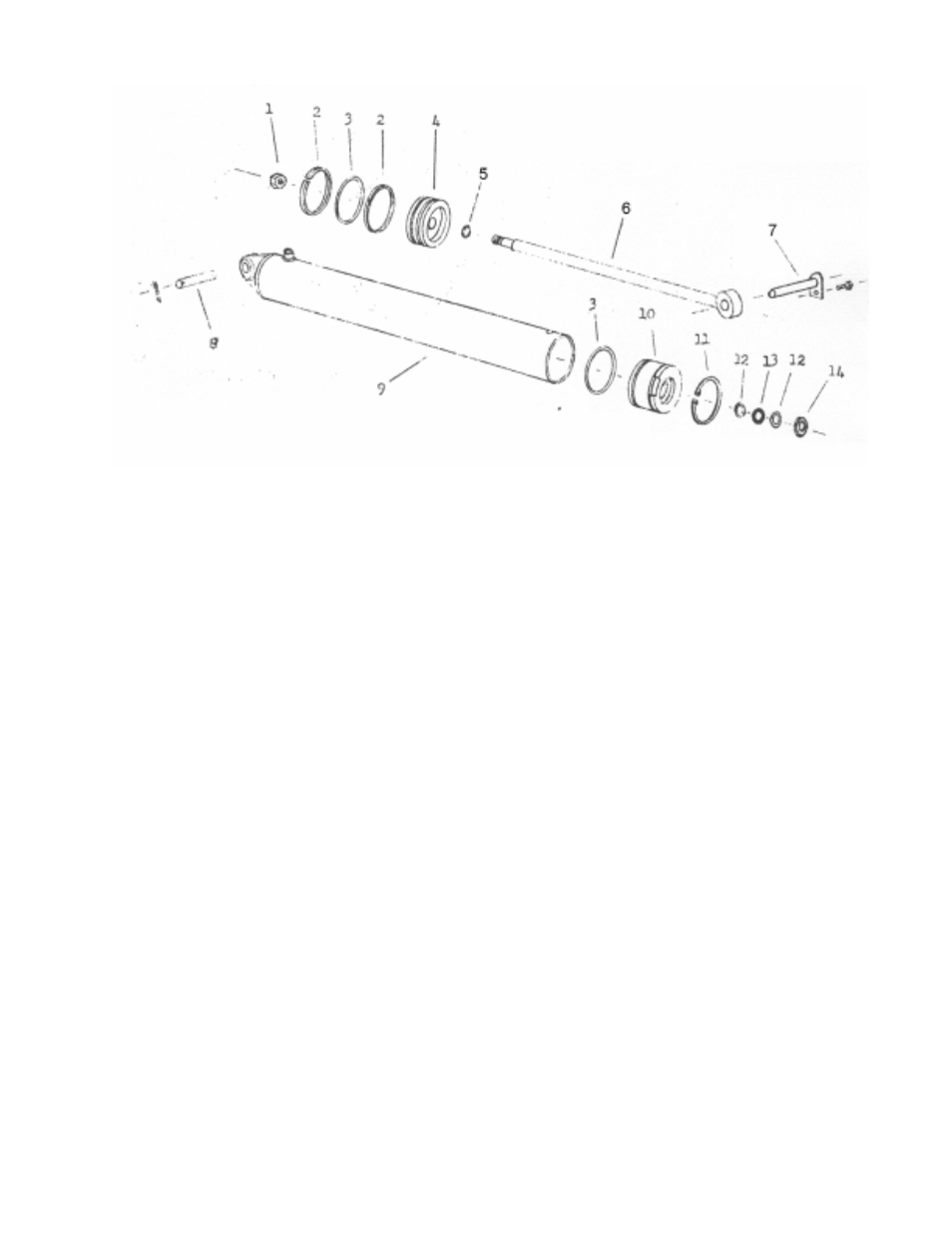

PARTS LIST
Model FEQS-13B Hydraulic Cylinder, 3" x 16"
Model B-300 Scraper (Used up to serial no. 2636)
Key No. Part No. Description
1 1-HN Nut, 1" NF
2 PMAP-R-37 Piston ring, 3" OD
3 PMAP-O-37 O-ring, 3" OD
4 P4-1900 Piston
5 PMAP-O-15 O-ring, 1" OD
6 P13-FEQS-3B Piston rod
7 3006A Rod end cyl pin, 1" x 6"
Capscrew, 1/2" x 1-1/4"
Star washer, 1/2"
8 3310 Rear cyl pin, 1" x 4"
Cotter pin, 3/16" x 1-1/2"
9 BT1-FEQS-13B Butt and cyl tube ass’y
10 G1-2260 Gland
11 3-TSR Retaining ring
12 PMAP-W-25 Back up washer, 1-3/8" OD
13 PAMP-0-25 O-ring, 1-3/8" OD
14 PMAP-TBR-25 Wiper seal, 1-3/8" OD
PMCK-FEQS-13B Packing kit containing: 2-R-37
2-0-37
1-0-15
2-W-25
1-0-25
1-TBR-25
1-3-TSR
