PAGE 10

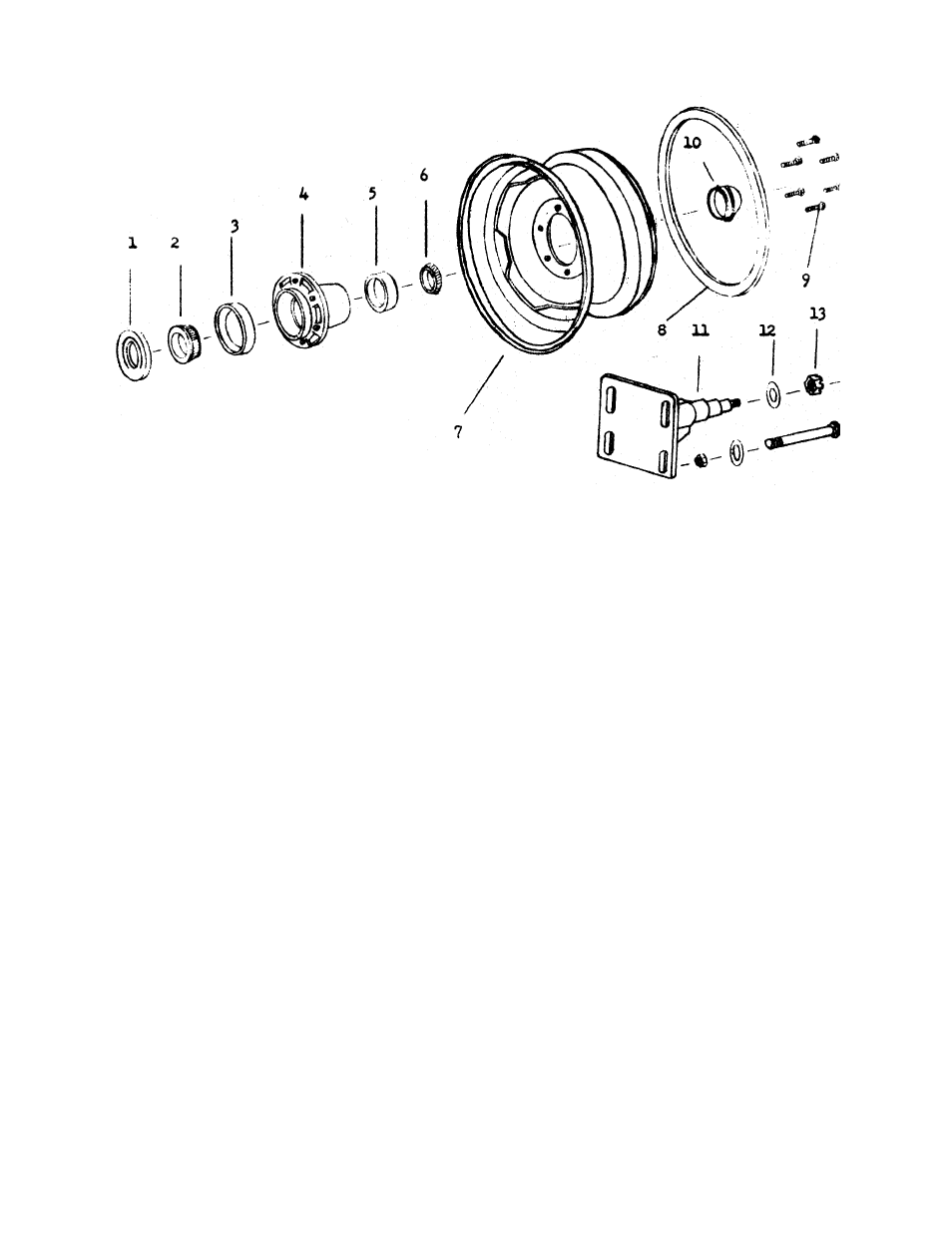

WHEEL, HUB, BEARING & SPINDLE ASS’Y
PARTS LIST
Key No. Part No. Description
1 AFS-1180 Grease seal
2 342A Bearing cone, inner
3 332 Bearing cup, inner
4 Q-670 Hub, less bearings
5 14276 Bearing cup, outer
6 14137A Bearing cone, outer
7 C-14008 Wheel, less lock ring
C-13971 Wheel & lock ring ass’y (15” x 6”)
8 C-14009 Lock ring
9 FS-13945 Wheel bolt
10 FS-8037 Hub cap
11 30019 Spindle (adjustable type)
3/4” x 5-1/2” spindle bolt (rear spindle)
w/nut & washer
12 FS-2002 Washer, 7/8 flat
13 Nut, 7/8 NF castellated
