IMPORTANT: This is the new style Apron Cylinder. The old style has rein-
forcement strap on the outside of the barrel near the rod end, the new style
does not. New style was integrated into production Sept. 2003, sn 20808 and
above.
15
ITEM QTY PART NUMBER DESCRIPTION
1a 1 A125065-1a O-RING (-248)
1b 1 A125065-1b B/U RING 5” OD X 1-8” C.S. (-248)
A5065- ROD SEAL U-CUP
AHS-00096 WIPER SEAL
4 A5065-4 WEAR RING
5 A4-9 PISTON SEAL = PSP TYPE
6 A5065-6 WEAR RING
8 A5065-0 BARREL
9 A5065-0 HEAD
0 AFN-0008 LOCK NUT
A5065-04 ROD
A5065-0 PISTON
A5065-05 SEAL KIT, INCLUDES ITEMS - 7
5 A-09 Pin: Apron cylinder barrel end

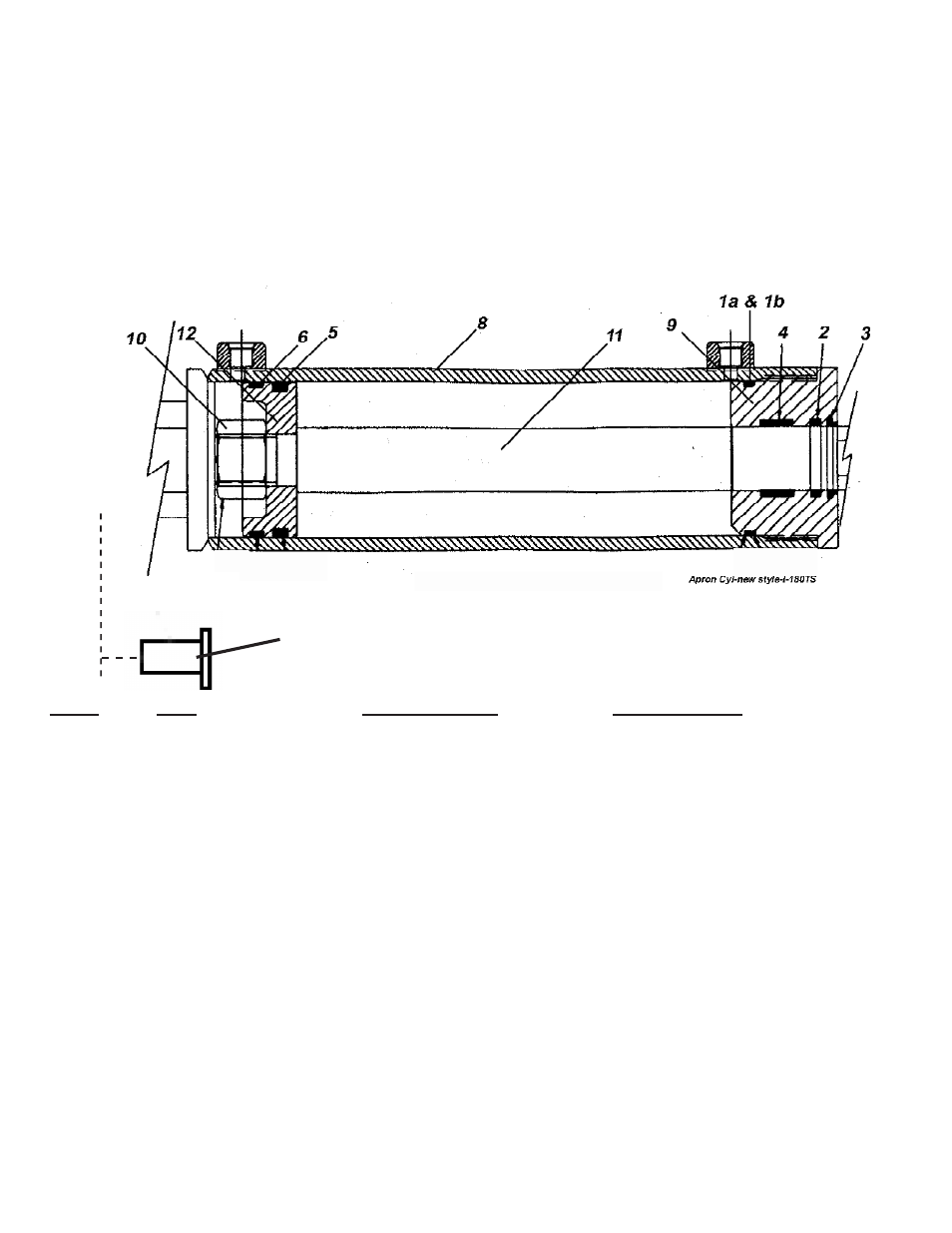

APRON CYLINDER I-180TS
PART NO. A125065
NEW STYLE
