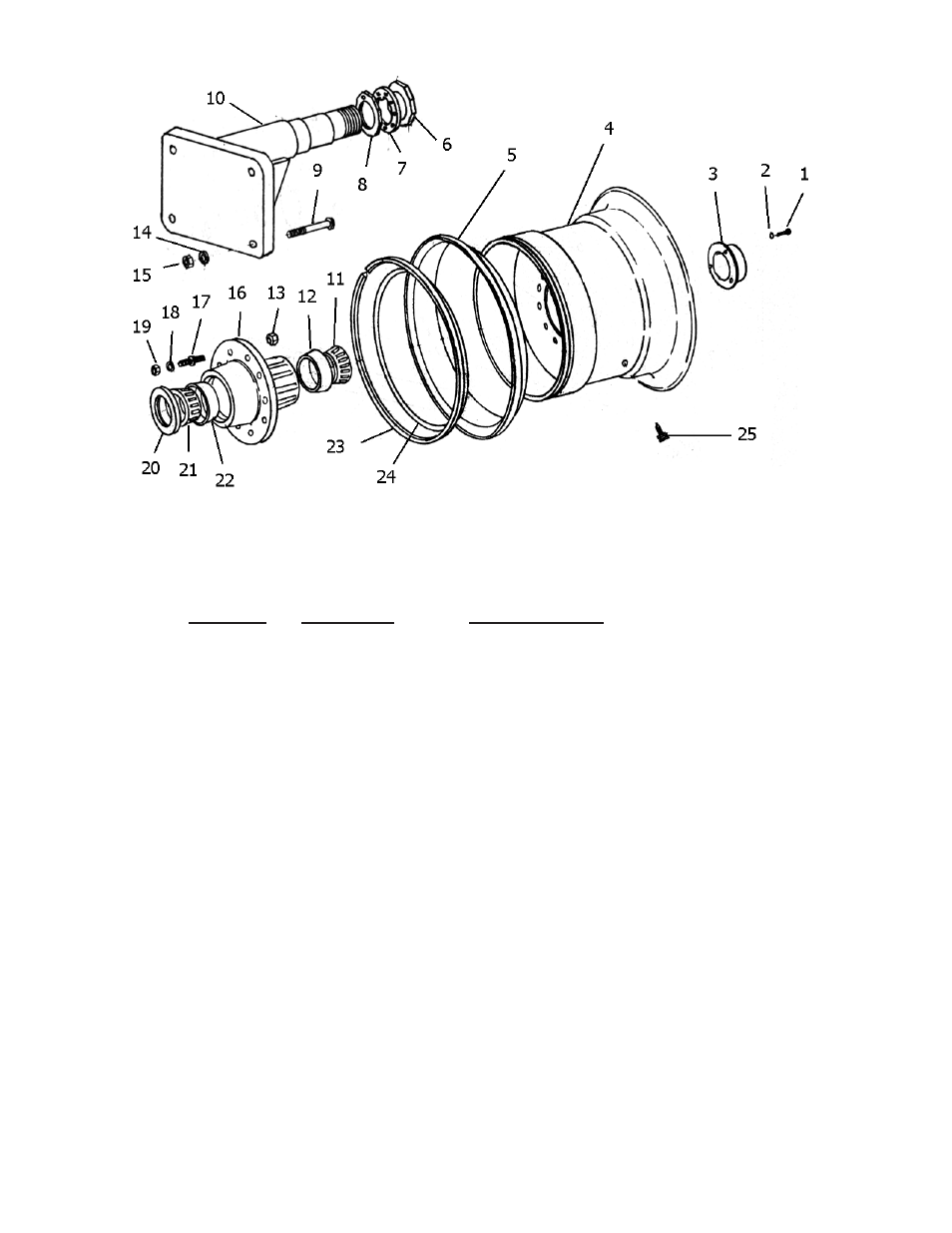

PARTS LIST
REAR WHEEL and HUB ASSEMBLY
MODEL I-160
KEY NO. PART NO. DESCRIPTION
1. AFB-00026 Bolt 5/16” NC x 3/4” Lg.
2. 8070 Lockwasher 5/16”
3. A14004 Hub Cap
4. A14035 Wheel 17” x 25”
5. A14036 Side Ring
6. A10048 Spindle Nut
7. A10049A Lock Collar
8. A10172 Nut with Lock Pin
9. AFB-00024 Bolt 1” NF x 7” Lg.
10. A14037 Spindle
11. A14015 Bearing Cone
12. A14014 Bearing Cup
13. A10046 Lug Nut
14. AFW-00006 Lockwasher 1”
15. AFN-00017 Nut 1” NF
16. A14010 Hub
17. A10044 Lug
18. AFW-00002 Lockwasher 3/4”
19. ----- Nut 3/4” NF
20. A14011 Grease Seal ( CR 42624 )
21. A14012 Bearing Cone ( Timken 749 )
22. A14013 Bearing Cup ( Timken 742 )
23. A14038 Lock Ring
24. A14008 “O” Ring
25. A14016 Valve Stem
15
