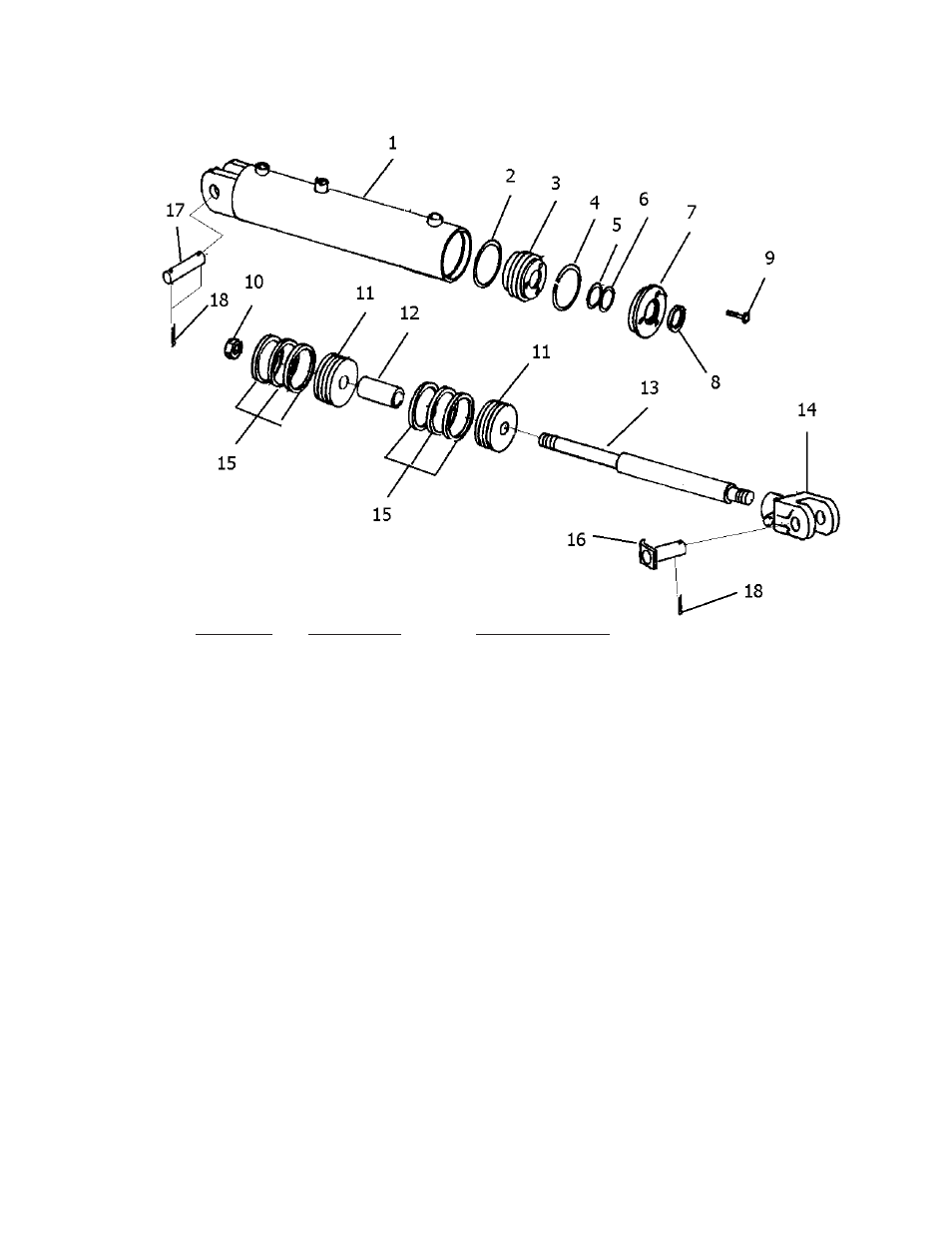

3 PORT HYDRAULIC CYLINDER - AS413H1, 4” X 13”
APRON CIRCUIT, LEFT SIDE
For Serial Number 17863 and up
KEY NO. PART NO. DESCRIPTION
1. A175H013 Cylinder Barrel
2. A300H06 “O” Ring, 4” OD x 3/16”
3. A300H11 Head Gland
4. A300H12 Retainer Ring
5. A22H15 “O” Ring, 1-1/2”ID x 1/8”
6. A22H15A Backup Washer, 1-1/2”
7. A300H13 Gland Cap
8. A22H17 Wiper Seal, 1-1/2” ID
9. A22H18 Capscrew, 1/4” NC x 1”
10. A300H03 Piston Nut
11. A450H15 Piston, 4”
12. A130H12 Piston Spacer
13. A175H14 Shaft, 1-1/2”
14. A12H03 Clevis End
15. A300H04 Cast Iron Rings, 4” OD
16. A10167 Pin, 1” x 3-1/16”
17. A1217 Pin, 1” x 3-1/2”
18. ----- Cotter Pin, 3/16” x 1-1/2”
A130H23 Packing Kit, Containing:
(6) A300H04 (1) A22H17
(1) A22H15 (1) A22H15A
(1) A300H06
