Ashland I-110XL2 - Manual (Page 6)

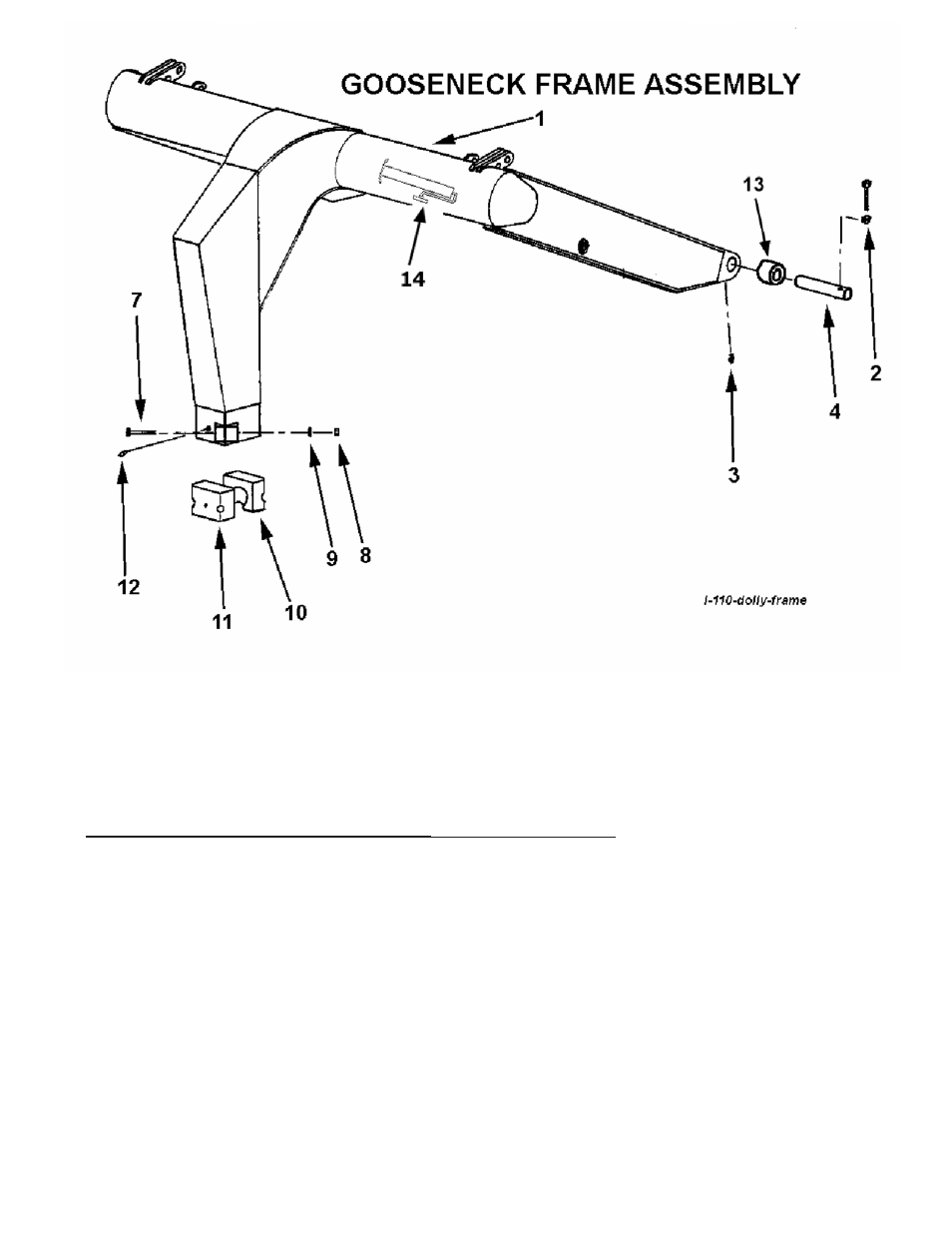

KEY NO. PART NO. DESCRIPTION
1 A10151A Gooseneck frame, s/n 17816 & up
2 AFB-00054 Bolt, 1/2” NC x 3-1/2” w/ 7500 Nut
3 14505 Grease zerk, straight
4 A10152A Pin, Frame attachment, 2” OD x 8-1/16” Long
7 AFB-00069 Bolt, 3/4” x 4-1/2” gr. 8
8 AFN-00030 Nut, 3/4” NC
9 AFW-00002 Lockwasher, 3/4”
10 A10004A Cast socket half, rear
11 A10005A Cast socket half, front w/ zerk hole
12 A2206 Grease zerk, long shank
13 A14039 Bushing, 2.375 OD x 2.00 ID x 2” Long, Grease Passage
14 OPT-00001 Hitch jack
