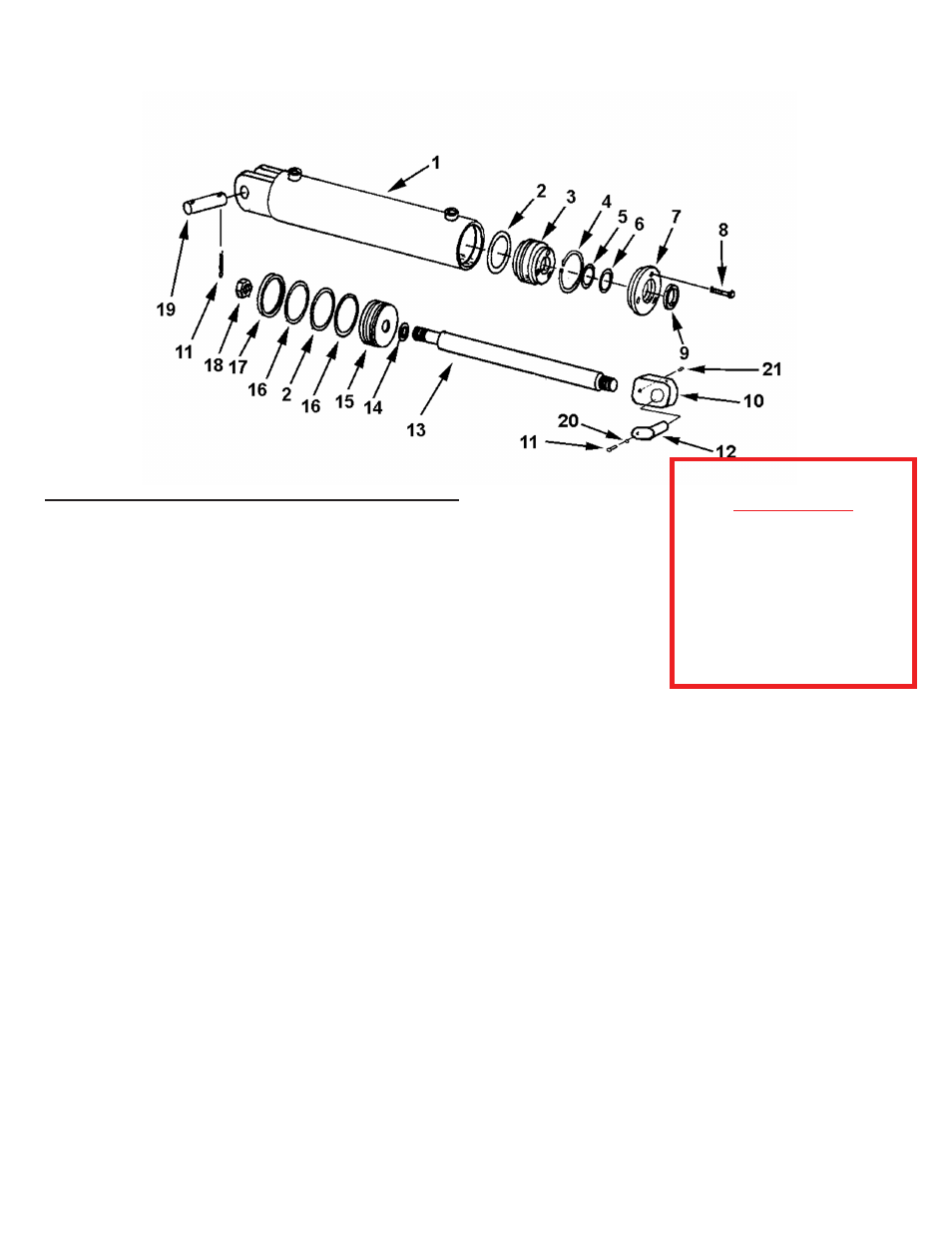

LEFT & RIGHT SIDE APRON CYLINDER 4 X 13
PART NO. A123319
Some units prior to this serial num-
ber were upgraded to a H.D. Apron
Cylinder by the customer Please
determine if the cylinder pins are
1-1/2”diameter. If pins are 1” or
1-1/4” and is inserted into a thread
block ear on the rod end please
refer to page next page
IMPORTANT KEY NO. PART NO. DESCRIPTION
1. A175H01 Cylinder Barrel
2. A300H06 O-Ring: 4” OD x 3/16”
3. A300H11 Head Gland
4. A300H12 Retainer Ring
5. A22H15 O-Ring: 1-1/2” ID x 1/8”
6. A22H15A Backup Washer: 1-1/2”
7. A300H13 Gland Cap
8. A22H18 Capscrew: 1/4” NC x 1”
9. A22H17 Wiper Seal: 1-1/2” ID
10. A123345 Up to S/N 20458 -Block Type, 1” Hole
A123310-16 S/N 20459 and Up - Block Type, 1-1/4” Hole
11. AFB-00015 HHCS: 1/2 NC X 1-1/2”
12. A123336 Up to S/N 20458 Pin: Tab Hd. w/Grs. Ftg. 1” x 3-5/8”
A123347 S/N 20459 to 20496 Pin: Tab Hd. w/Grs. Ftg. 1-1/4” x 3-5/8”
13. A175H02 Shaft: 1-1/2” Dia.
14. A45H05 Piston Gasket: 1”
15. A300H07 Piston: 4” Dia.
16. A300H05 Backup Washer: 4” OD
17. A300H04 Cast Iron Ring: 4” OD
18. A300H03 Piston Nut, 1” NF
19. A1217 E Pin: 1” x 3-1/2” ETD-150
20 8100 Lockwasher: 1/2”
21 AFB-00062 Socket Screw: 3/8” NC - 3/4” with Brass Tip
A300H14B Packing Kit, Containing:
(1) A300H04 (1) A22H15
(2) A300H05 (1) A22H15A
(2) A300H06 (1) A22H17
(1) A45H05
