Ashland I-110XL2 - Manual (Page 16)

1

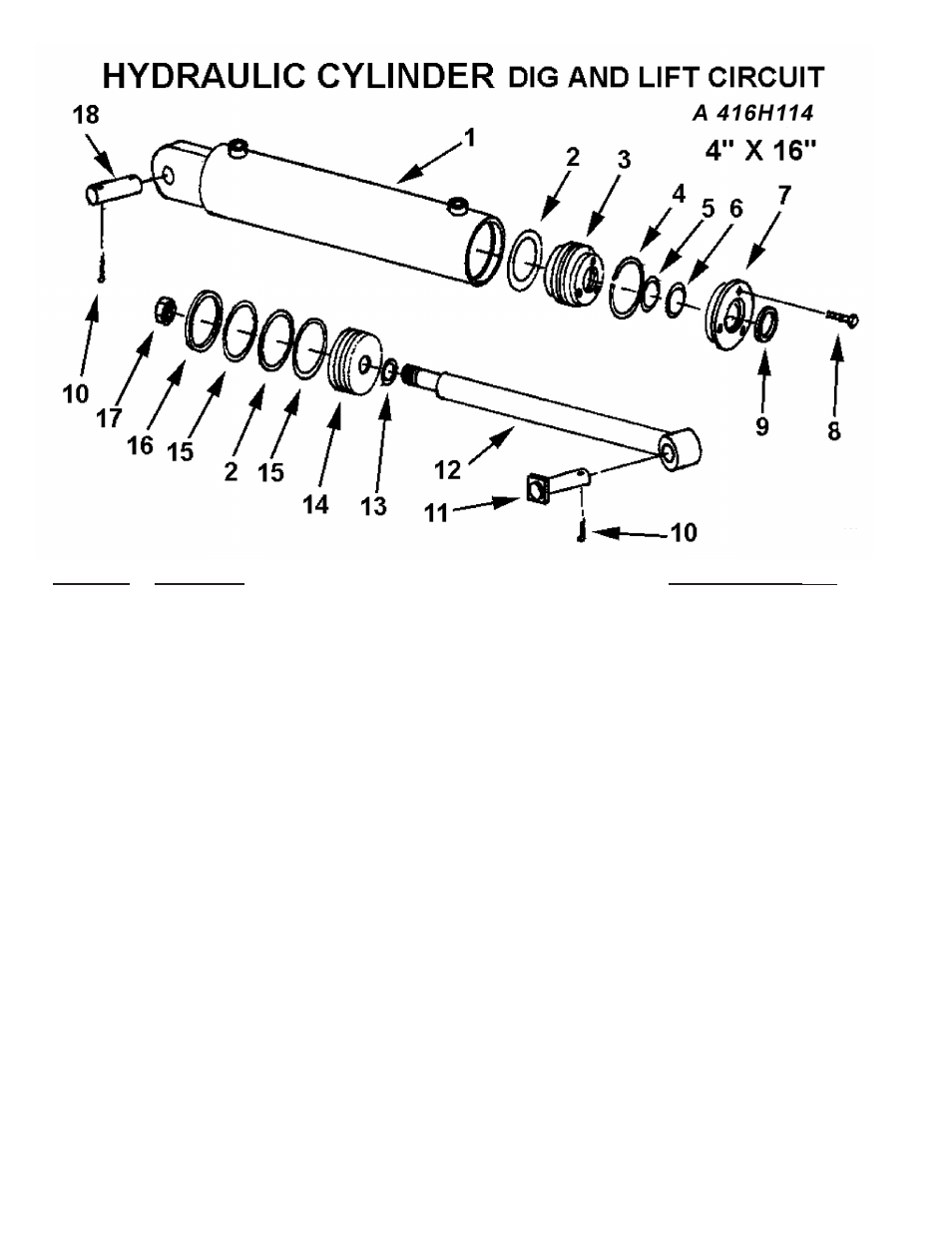

KEY NO. PART NO. DESCRIPTION
1 A45H04 Barrel Assembly
2 A300H06 O-ring, 4” OD x 3/16”
3 A300H11 Head gland
4 A300H12 Retainer ring
5 A22H15 O-ring, 1-1/2” ID x 1/8”
6 A22H15A Backup washer
7 A300H13 Head cap
8 A22H18 Capscrew, 1/4” x 1”
9 A22H17 Wiper seal, 1-1/2” ID
10 8602 Cotter pin, 1/4” x 2”
11 A123383 Pin, 1-1/4” x 7” w/ square head (for units w/Dog Bone, 06/04)
12 A45H03-114 Shaft, 1-1/2” diameter
13 A45H05 Piston gasket, 1” ID
14 A300H07 Piston, 4”
15 A300H05 Backup washer, 4” OD
16 A300H04 Cast iron ring, 4” OD
17 A300H03 Piston nut
18 14505 Grease fitting
A300H14B Packing kit containing:
1 - A300H04 2 - A22H15 2 - A300H05
1 - A22H15A 2 - A300H06 1 - A22H17
1 - A45H05
19 030672-33 Dog bone (Not Shown)
20 A125006 Safety Snap Pin (Not Shown)
