ASHLAND SCRAPERS

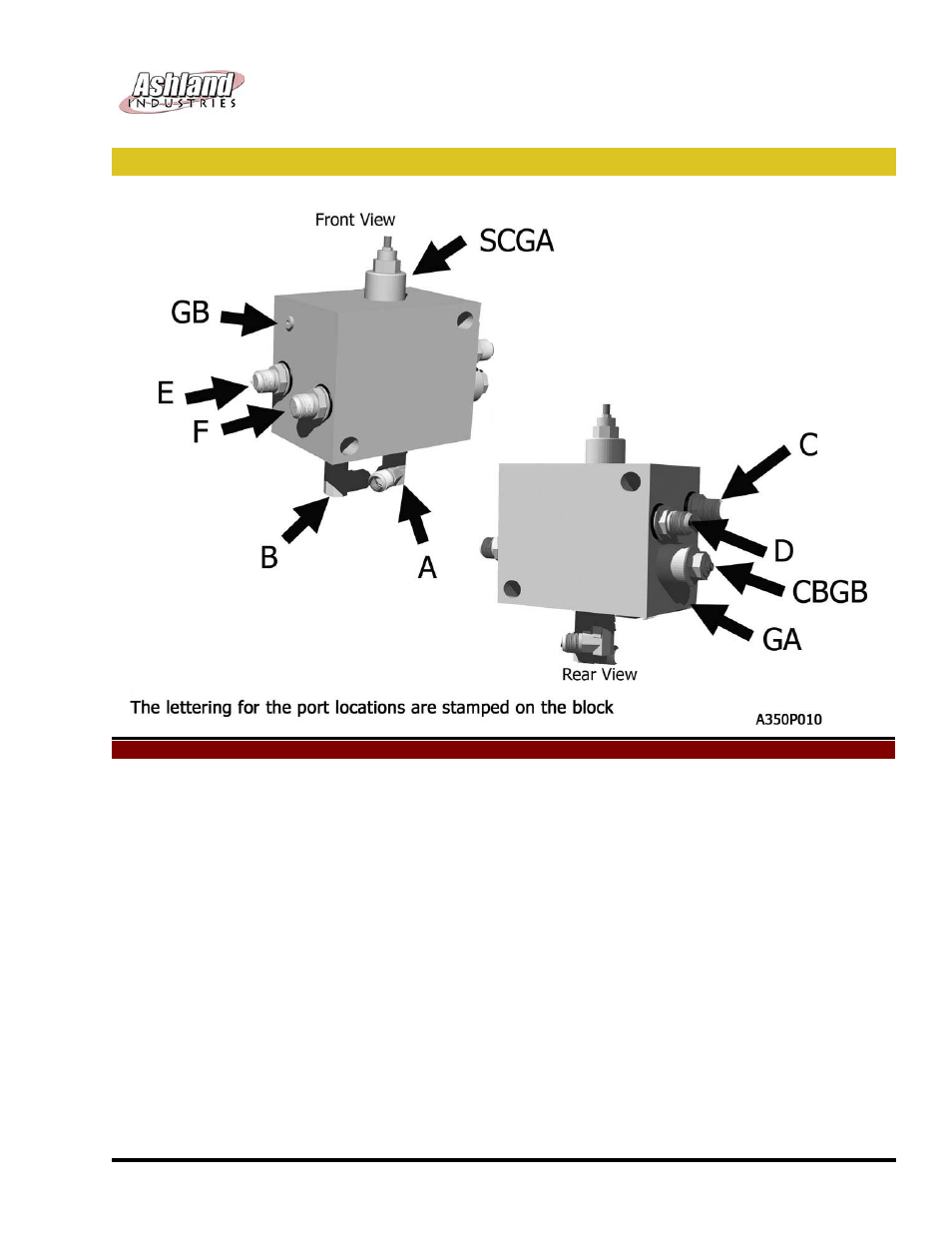

Hydraulic Valve Ports Assembly
KEY PART DESCRIPTION
A Supply Line
B Pushoff Cyl., (Rod End)-Apron Cyl., Right side (Base End)-Supply Line
C Pushoff Cylinder, (Base End)
D Apron Cylinder, Right side, (Rod end)
E Apron Cylinder, Left side, (Base end)
F Apron Cylinder, Left side, (Rod end)
CBGB Counterbalance Valve, adjustable
SCGA Sequence Valve, adjustable
GA Pressure test port
GB Pressure test port
