ASHLAND SCRAPERS

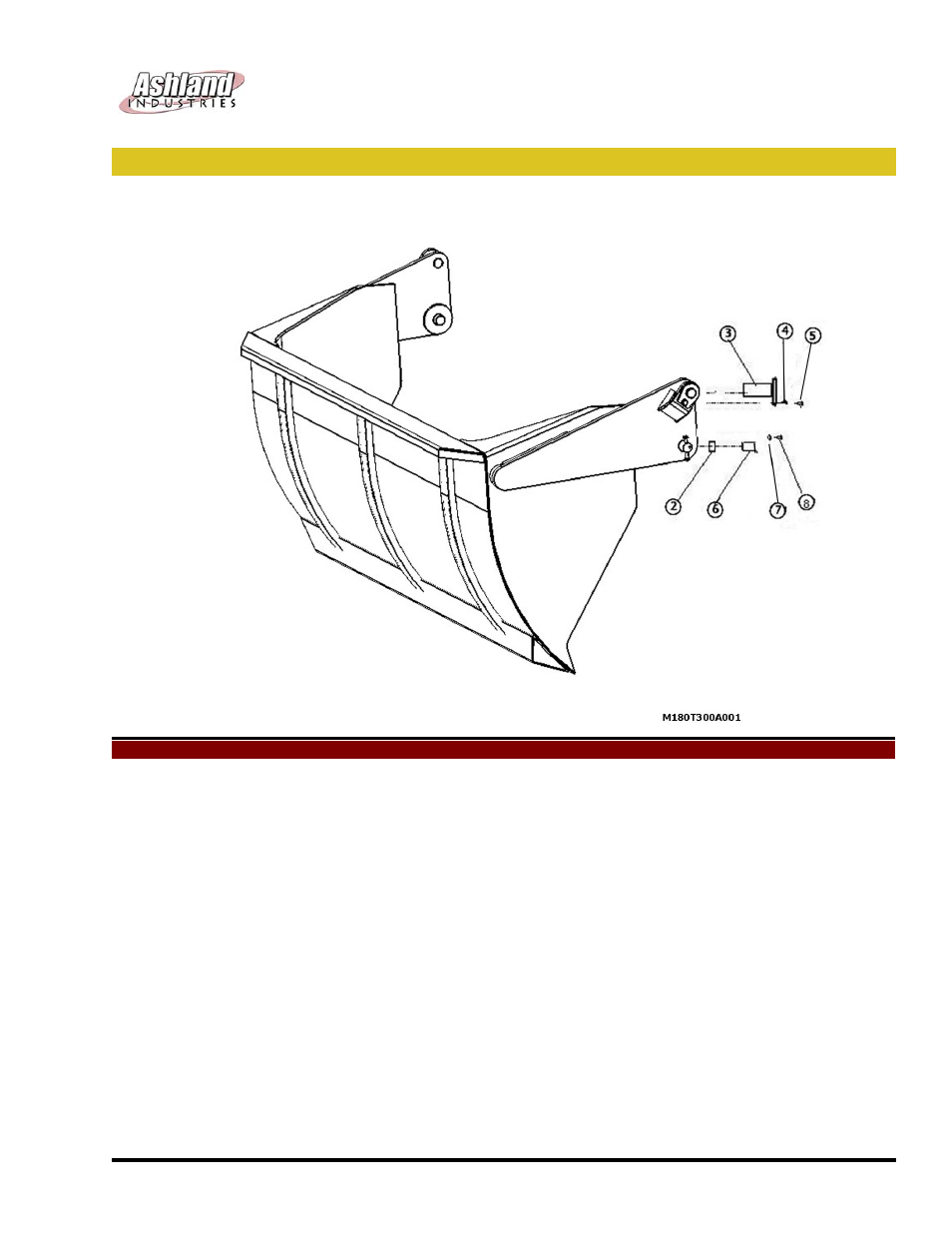

Apron Assembly (180)
KEY PART DESCRIPTION SN 180TS2
1 A123322 Apron Model 180
2 A125257-35 Bushing 2" ID Ball Swivel 22656-XXXXX
2 A125249 Bushing 2" ID Ball Swivel w/Graph. Plugs XXXXX-22655
3 A123322-14 "Pin: 2” x 4 1/4” L, (for apron cyl rod end)
4 A123358 Flanged Bolt Bushing
5 AFB-00079 Bolt: 5/8" X 1 1/2"
6 A123321-113 Apron Pivot Pin w/grease zerk
7 AFN-00018 1/2” lock nut
8 AFB-00012 1/2” Bolt 1/2 X 4 1/2"
PHONE : 715-682-4622 Fax: 715-682-9717
P.O. Box 717
1115 Rail Dr Ashland , WI 54806 Page #11
