ASHLAND SCRAPERS

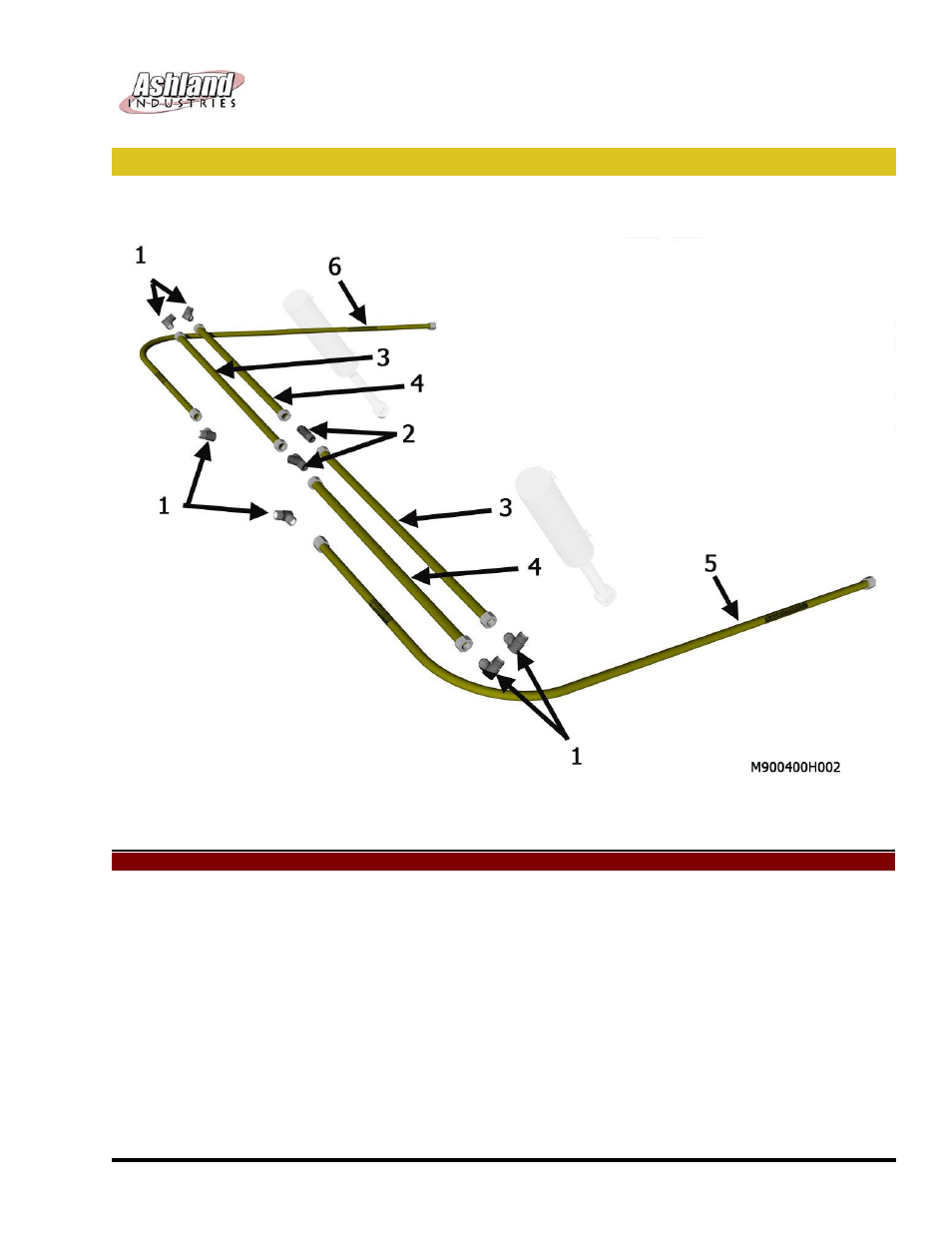

Hydraulic Plumbing Front (I-950)
KEY PART DESCRIPTION REMARKS
1 AHA-00019 Adapter: 90 Deg. 3/4 MJ X 3/4 MJ
2 AHA-00022 Adapter: T 3/4 MJ X 3/4 MJ X 3/4 MJ
3 A125063 Tube Assembly: 3/4" X 32 3/4"
4 A125064 Tube Assembly: 3/4" X 30 1/2"
5 A125272 Tube Assembly: I-900 Left Front Arm
6 A125273 Tube Assembly: I-900 Right Front Arm
